6243/44 DC Voltage Current Source/Monitor Operation Manual
6.4.2 Data Output Format in the TR6143 Mode (Talker)
6-16
• Block delimiter
A block delimiter is output to indicate the end of one set of data.
The block delimiter can be specified by commands.
Output after recall of the last data in the buffer at the time the talker is specified by the controller

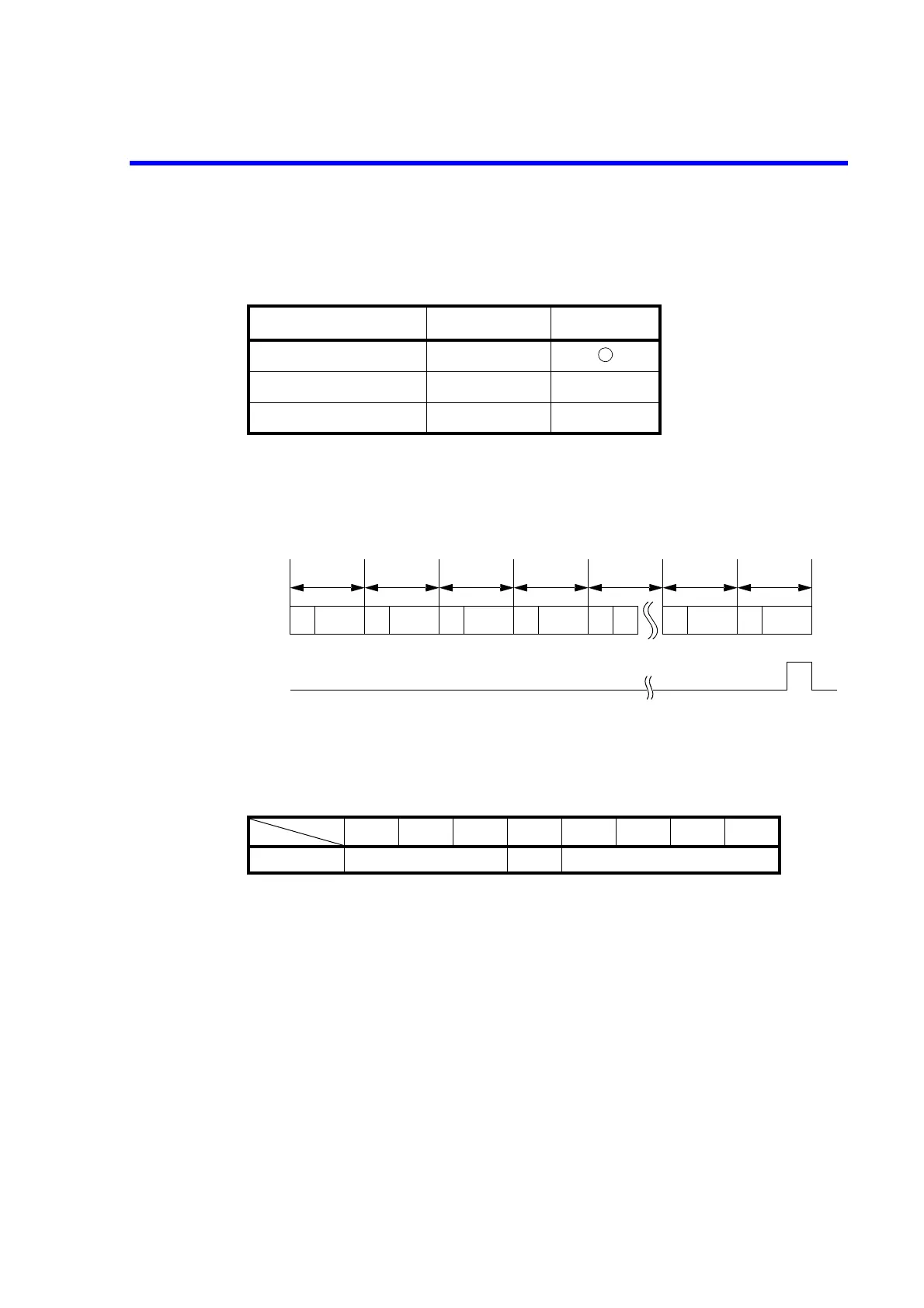

(3) Measurement buffer output format (Binary)
When measurement buffer store is turned ON by OM5 and binary data output is subsequently speci-
fied by OM2, measurement data is output in the following binary format.
(a) Header (Flag + V/I + Range code)
(b) Data
• Data structure
Block delimiter Setting command Default
CR LF + EOI DL0
LF DL1
EOI DL2
data 1 data 2 data 3 data 4 data n-1 data n
Data (a) (b) (a) (b) (a) (b) (a) (b) (a) (b) (a) (b) (a) (b)
EOM
D7 D6 D5 D4 D3 D2 D1 D0
Header Flag V/I Range code
To Next Page
