FOCUS 200 PLUS Installation and Setup Guide
2-4
The cabinet tamper is automatically bypassed when the system is placed in Service mode and
automatically unbypassed when the system is taken out of Service mode.
Grade A Mercantile Safe and Vault Listing
For a Grade A Mercantile Safe and Vault listed installation, perform the following steps:
Step Action
1 Follow the instructions given previously for Grade A Mercantile Premises listing.
2 Mount a shock sensor or a back tamper (112) to the control's back-box and wire it to the
cabinet tamper input (output 3 of J5 Triggers) and enable the Cabinet Tamper option. If a
shock sensor is used, follow the manufacturer's instructions for proper sensor mounting.
Installing the Control's Circuit Board
DETAIL B
SIDE VIEW OF SHORT
MOUNTING CLIPS
DETAIL A
SIDE VIEW OF
BOARD INSERTED
INTO SLOTS

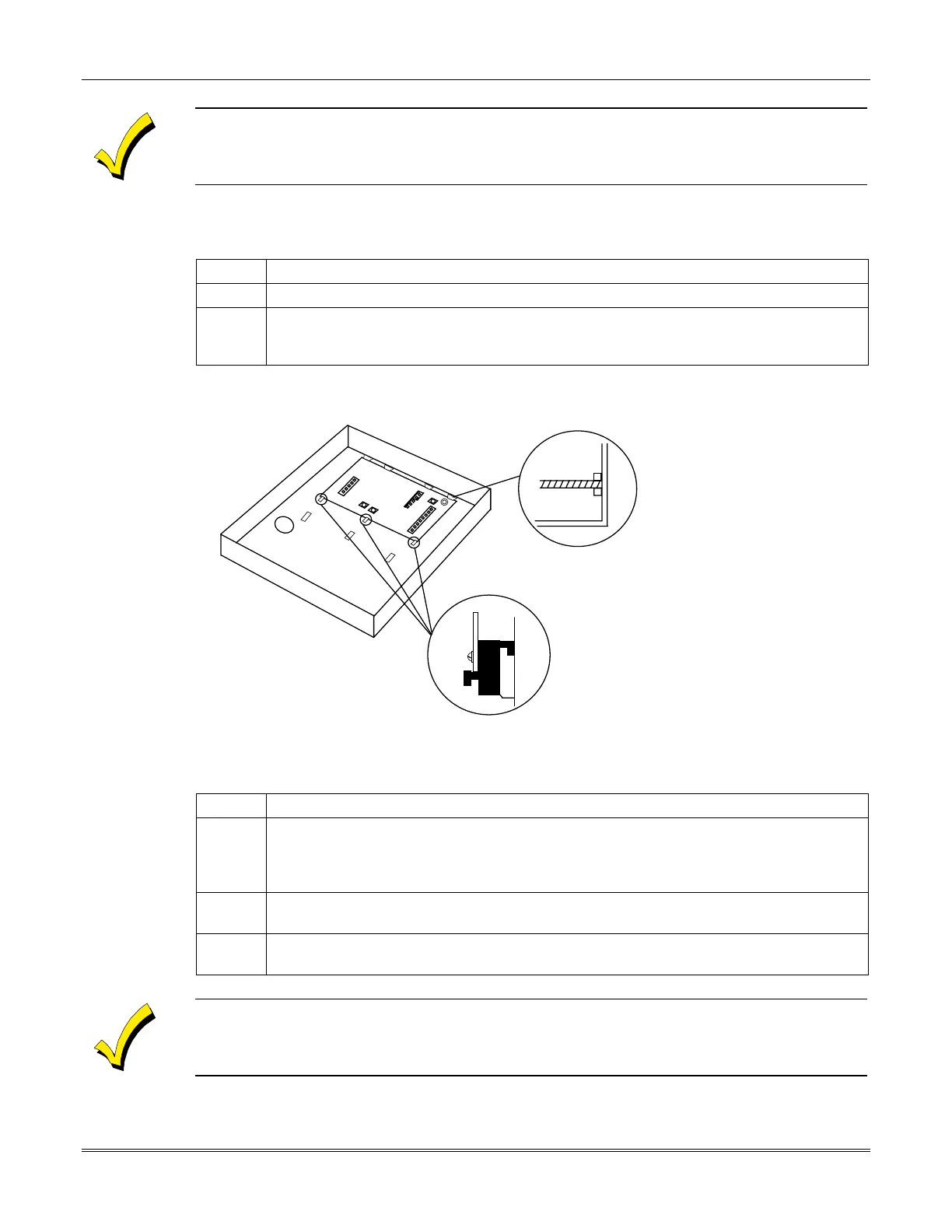

Figure 2-4: Mounting the PC Board
To install the circuit board, perform the following steps:
Step Action
1 Hang the three mounting clips on the raised cabinet tabs. To avoid damage to the clip
when the mounting screws are tightened, make sure the clip orientation is exactly as
shown in
Figure 2-4
. This will also avoid problems with insertion and removal of the PC
board.
2 Insert the top of the circuit board into the slots at the top of the cabinet. Make certain that
the board rests in the slots as indicated.
3 Swing the base of the board into the mounting clips and secure the board to the cabinet
with the accompanying screws.
Make certain that the mounting screws are tight. This ensures a good ground connection between the PC
board and the cabinet. Also, dress field wiring away from the microprocessor (center) section of the PC
board. Use the 2 loops on the left and right side walls of the cabinet for anchoring field wiring using tie
wraps. These steps are important to minimize the risk of panel RF interference with television reception.
