Section 6 – Bell Outputs and Auxiliary Relay
6-7
Wiring the Auxiliary Relay
The auxiliary relay cannot be supervised. It is typically used for annunciating burglary alarms,
resetting 4-wire smoke detectors, elevator recall, or other situations that do not require the supervision
of the wiring. Be sure to set jumper P3 for either wet or dry operation.
Figure 6-2
shows how to wire the auxiliary relay to operate an unsupervised external alarm sounder.
Short pins 1 and 2 on P3 for wet operation for this application. See the
Basic Hardwired Points
section
for the wiring of the auxiliary relay for 4-wire smoke detector reset operation.
AUX. RELAY
91011
P3
JUMPER P3
Pins 1 & 2 shorted = wet
Pins 2 & 3 shorted = dry
N.C.
WET/DRY
N.O.
12
GND
BELL
ALARM

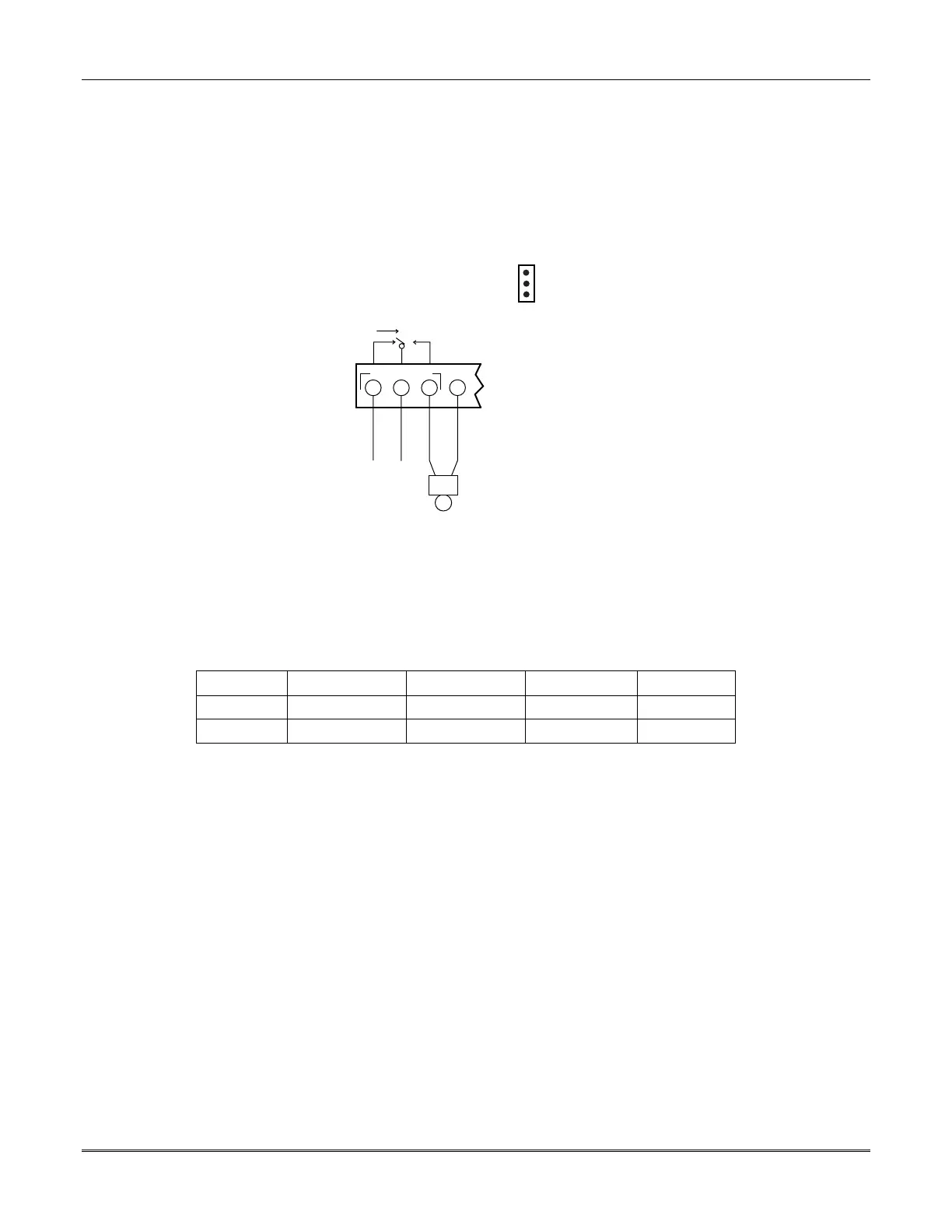

Figure 6-2: External Sounder Connections to the Auxiliary Relay
Programming the Bell Outputs
Refer to
Programming the Point Data
in the
Programming
section for information about the procedure.
Bell output 1 and bell output 2 are points 246 and 247, respectively.
Defaults for the bell output points are:
Point Description Default Type Gateway # Hard ID
246 Bell 2 SPV 8 122
247 Bell 1 SPV 8 121
