FOCUS 200 PLUS Installation and Setup Guide
5-14
4
3
2
1
(BLU)
(YEL)
(BLK)
(RED)
TB2
GATEWAY TRUNK
TERMINAL STRIP
TB1
TERMINAL STRIP
CONNECTIONS TO
RS-485 BUS
JUMPER E1
(REMOVE JUMPER
TO DISCONNECT RS-485
TERMINATING RESISTOR)
RS-485 BUS ADDRESS
DIP SWITCHES
TRANSMIT LED (YEL)
E1
1 (BLK) GND
4 (BLU) COM +
3 (YEL) COM
2 (RED) +12V
GATEWAY
MICROPROCESSOR
TAMPER SWITCH
NOTE: TRANSMIT LED FLASHES
WHEN GATEWAY IS TRANSMITTING.
RECEIVE LED FLASHES WHEN
GATEWAY IS RECEIVING.
RECEIVE LED (RED)
TAMPER SWITCH
OPERATOR
DIP SWITCH POSITIONS SHOWN FOR COMMUNICATION GROUP 3
IN COMBINATION WITH UNIT NUMBERS 0 THROUGH 7.
7
6
5
4
3
2
1
0
UNIT
NUMBER
COMMUNICATION
GROUP 3

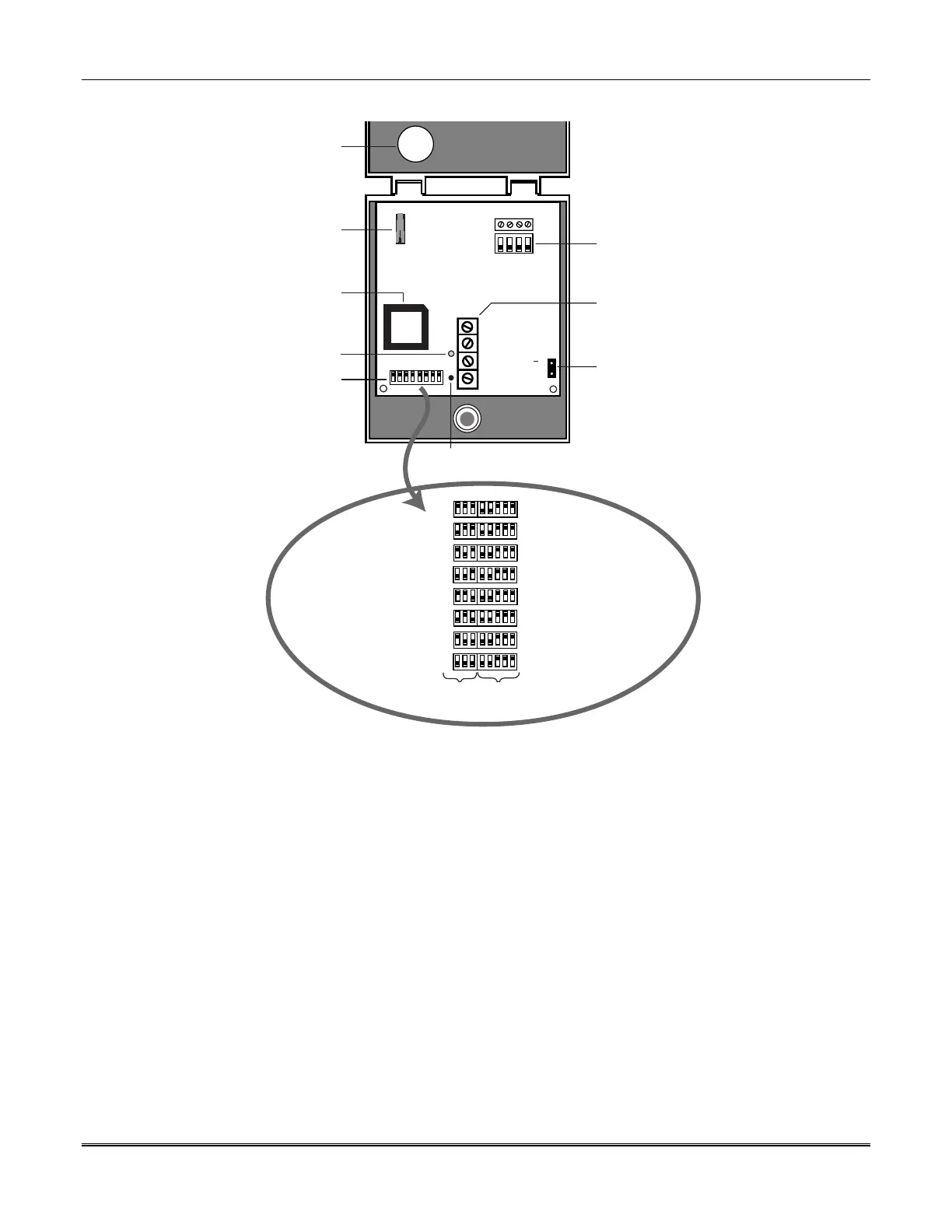

Figure 5-6: SIM Gateway Module
SIM Gateway Applications
The 472368 SIM Gateway is designed to be used with the following:
472366 Sensor Interface Module (SIM), used with Junction Box SCN 148320.
472367 SIM Door/Window contact.
472371 SIM Overhead Door contact.
472370 SIM Manual FA Pullbox.
472374 SIM Holdup Alarm Switch.
248309 SIM Relay Output Module kit and/or with Relay Module SCN 248026.
429CTAD SIM Smoke Detector.
472380 SIM Horn/Strobe.
472488 Supervised Horn/Strobe SIM.
450SIM, 633SIM, 690SIM Motion Sensors.
