FOCUS 200 PLUS Installation and Setup Guide
9-4
Auxiliary Alarm Signaling Equipment
The J5 output triggers may be used to trip auxiliary alarm signaling equipment such as ADEMCO's
7720P, 7835C, 7830R, and 7920SE Long Range Radios.
These units are typically used as a backup to the Telco lines. They may be configured to send signals
when the system detects a Telco line fault. Refer to
Figures 9-1, 9-2, 9-3 and 9-4
for the wiring and
configuration of the Long Range Radios to the J5 output triggers.
When a Long Range Radio is installed, configure the sense select for zones 1 and 2 in the Long Range
Radio to activate on +5V (positive trigger). This is necessary to prevent false alarms from occurring. Refer to
the installation instructions provided with your radio for instructions on setting the zone 1 and 2 levels.
AUX. Relay N.O.
Ground
Output
Triggers
Violet
Yellow
Gray
FOCUS 200 PLUS
FOCUS 200 PLUS Setup:
Set the P3 Jumper to 'WET'
Program the AUX. Relay to activate
on any BA [ABA]
Program Output 6 (Point 253) to
activate on Fire (type 21, FA)
Program Output 7 (Point 254) to
activate on Holdup (type 23, HU)
Program Output 8 (Point 255) to
activate on Telco Fault (type 16)
Ground
2k EOLR
Zone1
Zone 2
Zone 3
Zone 4
ECP In
ECP Out
Radio Fault
Output
Power
16.5VAC / 40VA
J3 J2 J1
A
B
GND
+V
GND
+V
7720
SafetyNet Radio
Use any of the eight Hardwired
Inputs (ZN 1-8) on the control and
Program this point as an FI
(Type 1), or an SPV (Type 13) to
monitor Radio Fault
11
12
J5
6
7
8
9
Out 5
Out 6
Out 7
Out 8

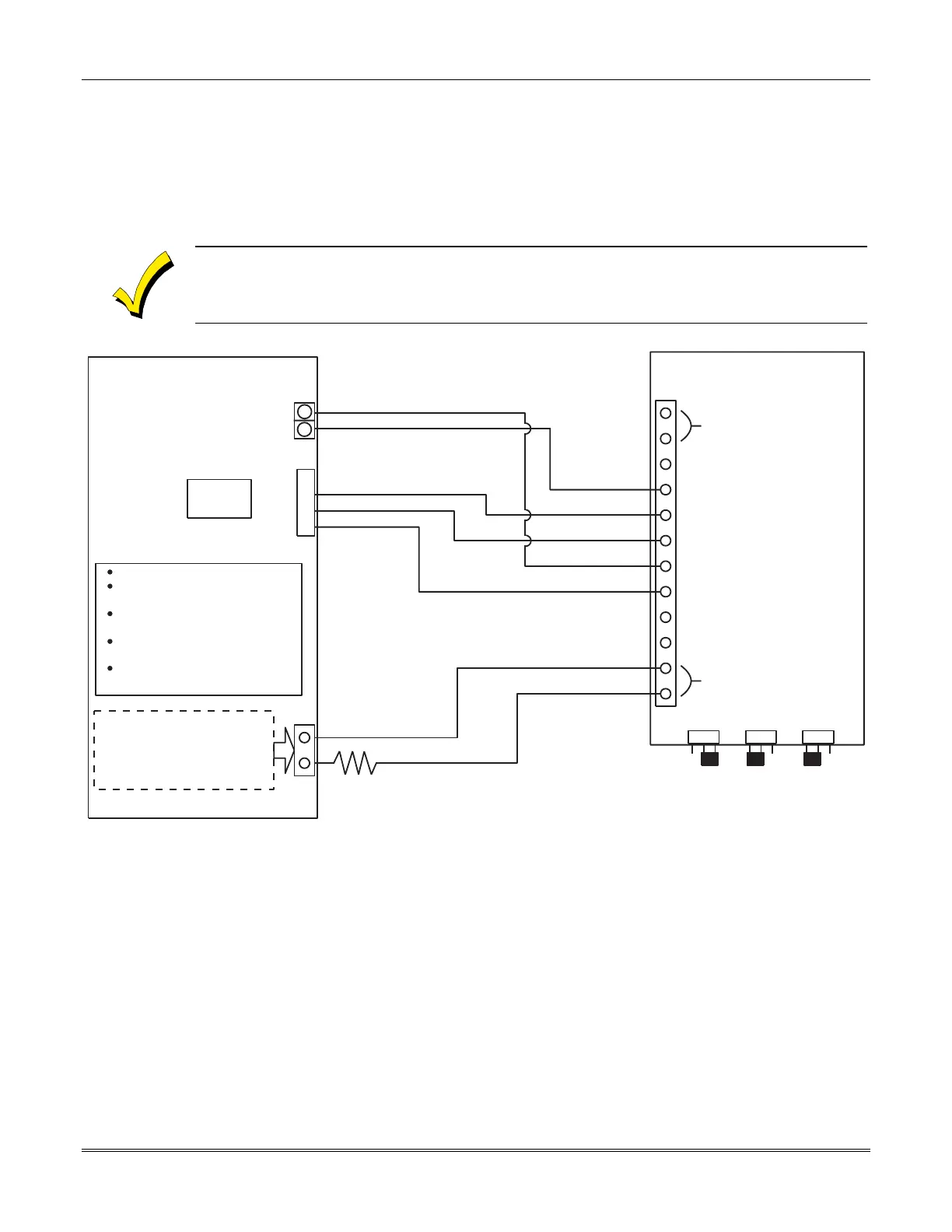

Figure 9-1: Configuration of the 7720P to the J5 Output Triggers
