Advanced Energy Pinnacle Plus+ - Figure 5-2. Clearances for Pinnacle Plus+ Units Stacked in a Cabinet

5-4 Installation 5702269-C
Advanced Energy
®
dissipation within the cabinet of 3000 W (1000 + 1000 + 1000 = 3000 W). The
difference in temperature between coolant air and exhaust air would be approximately
20°C.

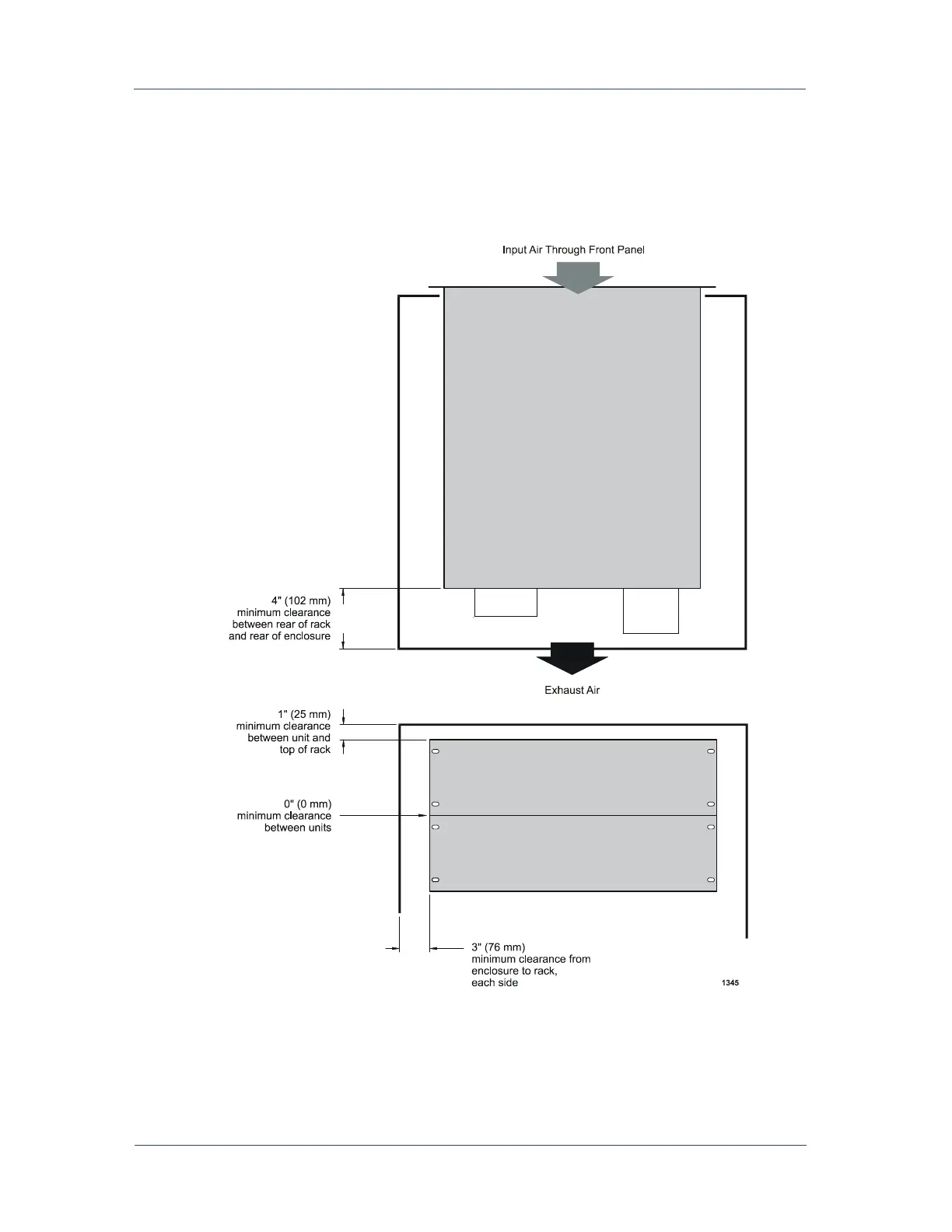

Figure 5-2. Clearances for Pinnacle™ Plus+ units stacked in a cabinet
