5702269-C Installation 5-11
Pinnacle™ Plus+ 10 kW
MILITARY SPEC NUMBER
Note that the military specification number for this connector is SO-239. Select cables
and tools appropriate for this mil-spec, and assemble connecting materials according
to specifications. Also note that the connector housing may provide interlock
capability (see the details in the following sections).
UHF CONNECTION WITHOUT INTERLOCK
If your unit's output connector housing resembles the Figure 5-5 on page 5-11, the
housing does not provide interlock capability.

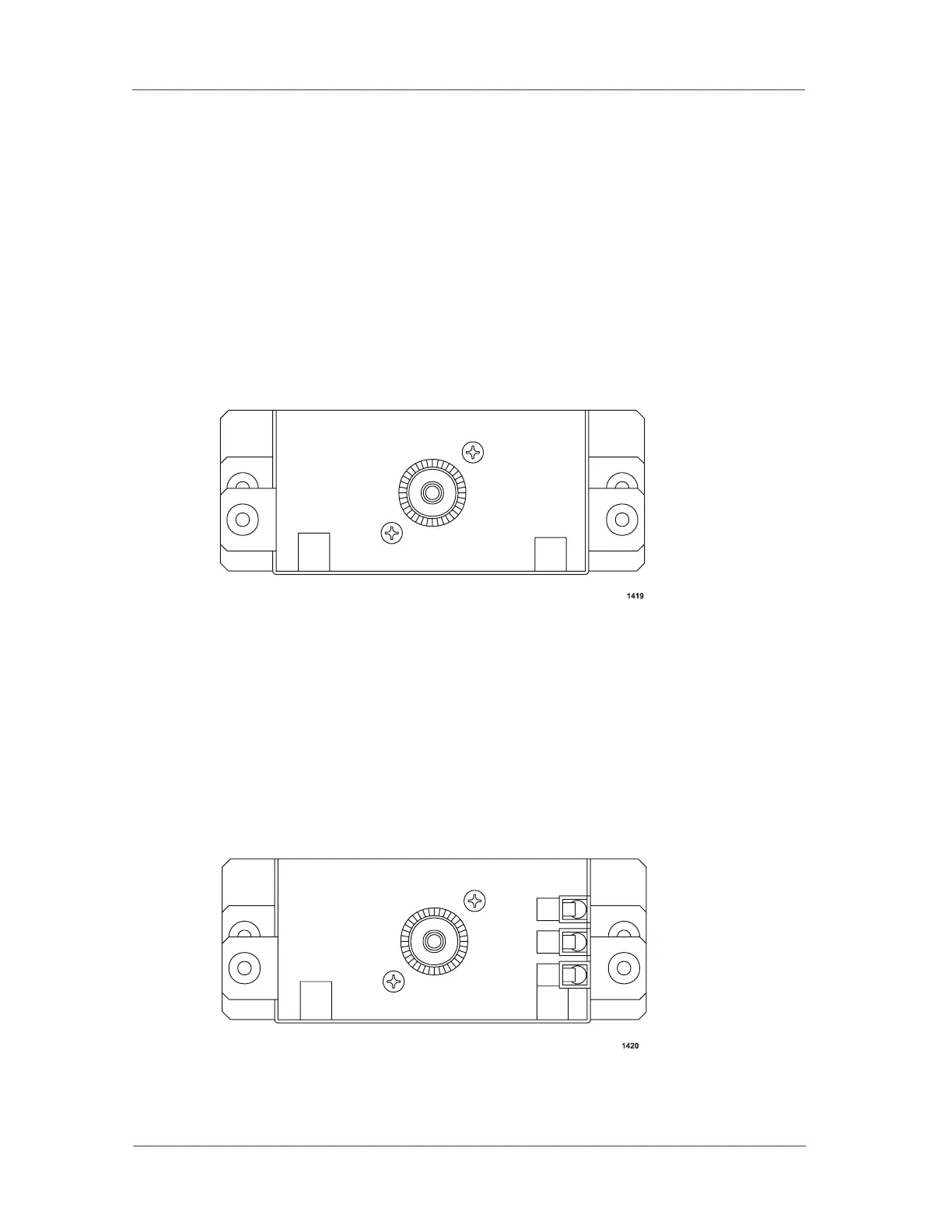

Figure 5-5. Rear view of UHF connector housing without interlock (back plate
removed)
UHF CONNECTION WITH INTERLOCK
If your connector's housing resembles the Figure 5-6 on page 5-11, the housing
provides an interlock. Basically, the interlock is closed when the housing's back plate
(with its three interlock pins) is properly attached. When you remove the back plate,
the interlock is open and output from your Pinnacle Plus+ supply is turned off.
Figure 5-6. Rear view of UHF connector housing with interlock (back plate
removed)
