5-10 Installation 5702269-C
Advanced Energy
®
UHF OUTPUT CONNECTOR
The output connector for your Pinnacle Plus+ supply is a female UHF connector as
shown in Figure 5-4 on page 5-10. This connector is provided at the time of shipment;
the cable is not provided. (If your unit is a dual unit, it features two of these
connectors.)

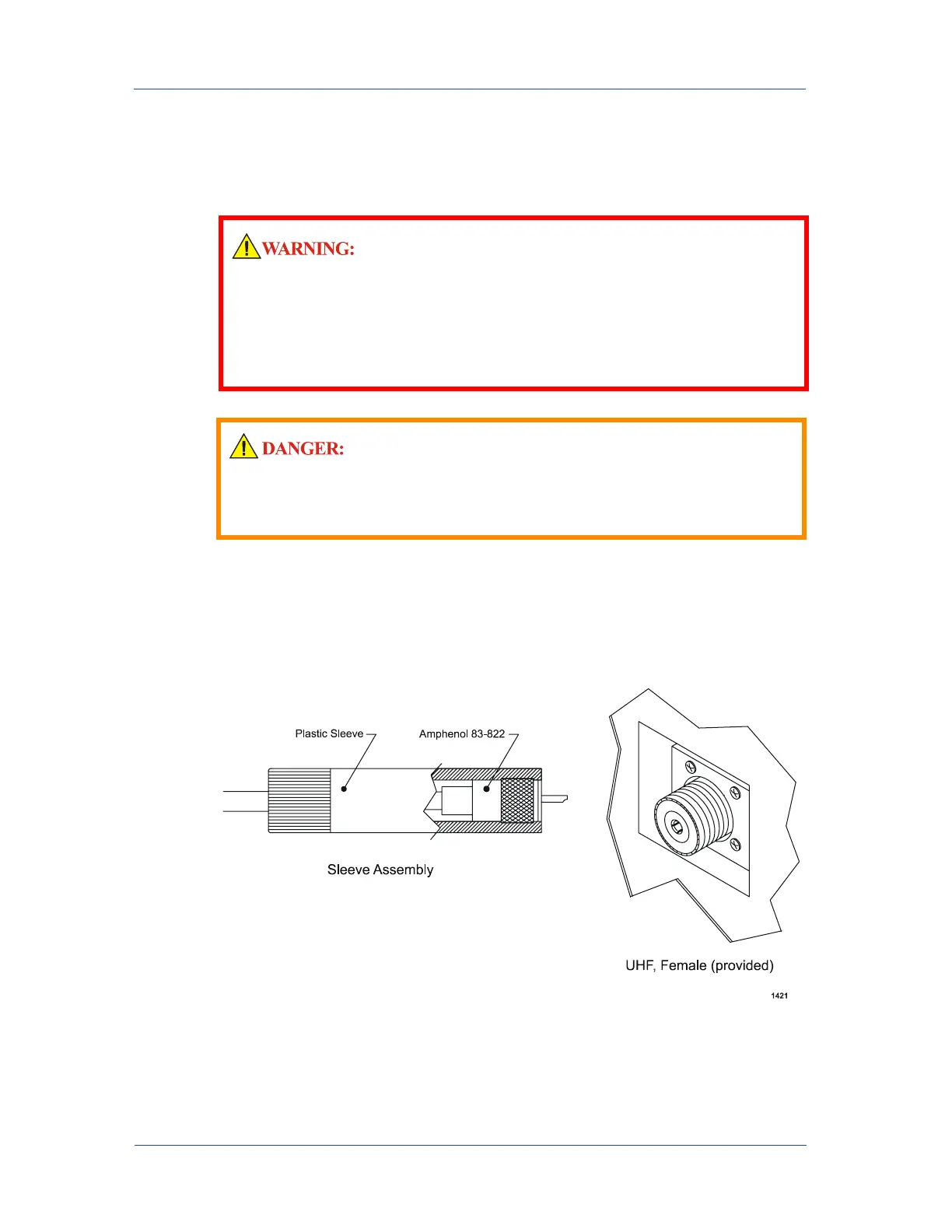

Figure 5-4. UHF connector and sleeve assembly
The unit is shipped without a cover on the output power connector.
Install the unit so that the output power connector is inaccessible to the
user since lethal voltages are potentially present at the output connector
once the input connections are complete. Be sure this connector is
terminated and follow normal safety precautions when the system is
operating.
RISK OF DEATH OR BODILY INJURY. All units with UHF connectors
must be installed so that the output connections are inaccessible to the
operator.
(not provided)
