5702269-C Specifications 3-11
Pinnacle™ Plus+ 10 kW

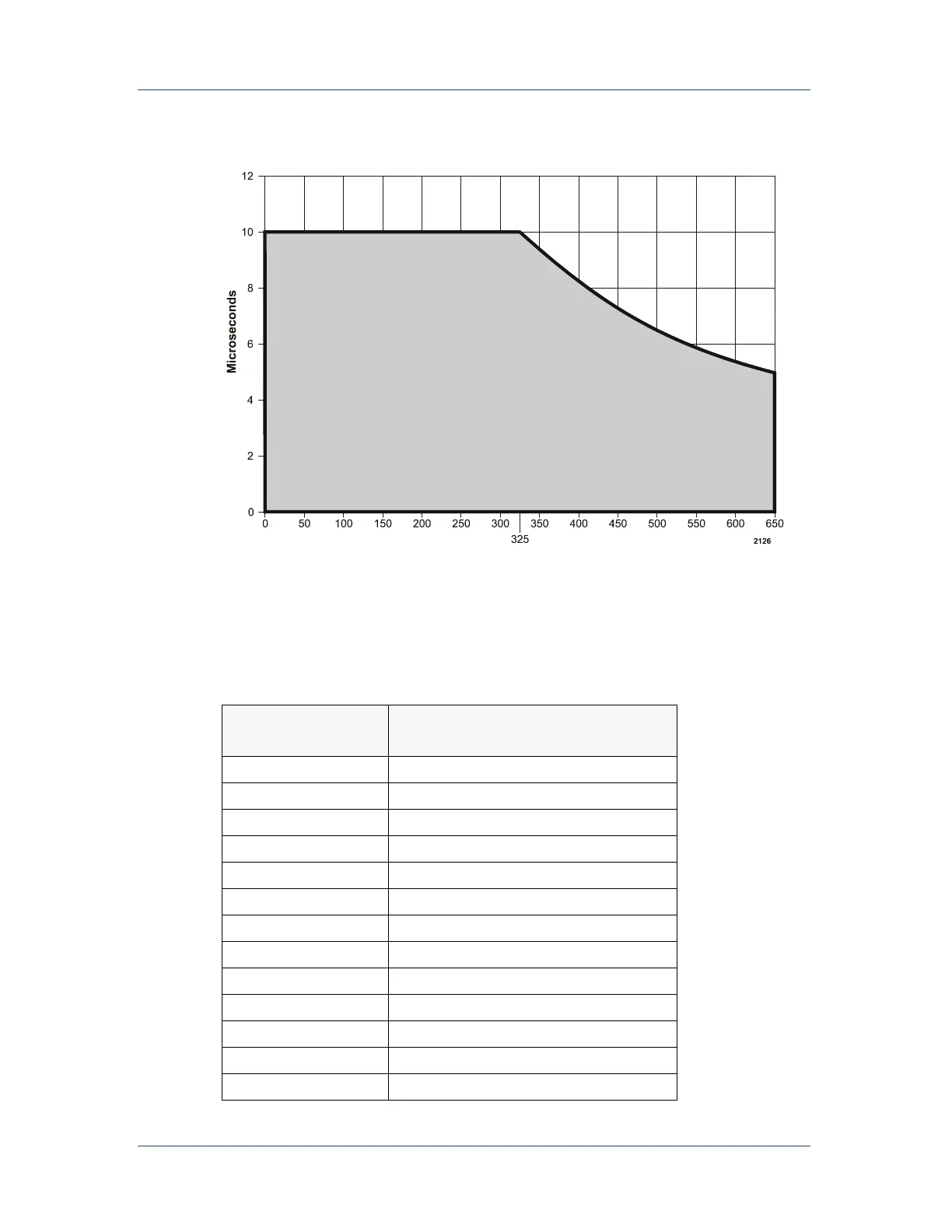

Figure 3-2. Pulse reversal time as a function of voltage limit (V-Limit)
Table 3-5. Reverse Time as a Function of Voltage Limit (V-Limit)
V-Limit
(in Volts)
Corresponding Reverse Time
0 to 325 10 µs
330 9.8 µs
335 9.7 µs
340 9.5 µs
345 9.4 µs
350 9.2 µs
355 9.1 µs
360 9 µs
365 8.9 µs
370 8.7 µs
375 8.6 µs
380 8.5 µs
385 8.4 µs
Output voltage (in volts)
