5702269-C Installation 5-13
Pinnacle™ Plus+ 10 kW
Master/Slave Pulse Port
The Pinnacle Plus+ unit is configured with two female, subminiature-D ports beneath
the master/slave Host card on the rear panel of the unit.
The 15-pin subminiature-D port, labeled Master/Slave Pulse, is used for master/slave
operations. The 9-pin subminiature-D port, labeled Sync Pulse, is used for
synchronized pulsing operations and is discussed later in this chapter. (See “Sync
Pulse Operation” on page 5-18.)
Note: See the rear panel illustration of the Pinnacle Plus+ power supply at the end of
this chapter for the location of these ports.
MASTER/SLAVE PULSE PORT CONNECTOR

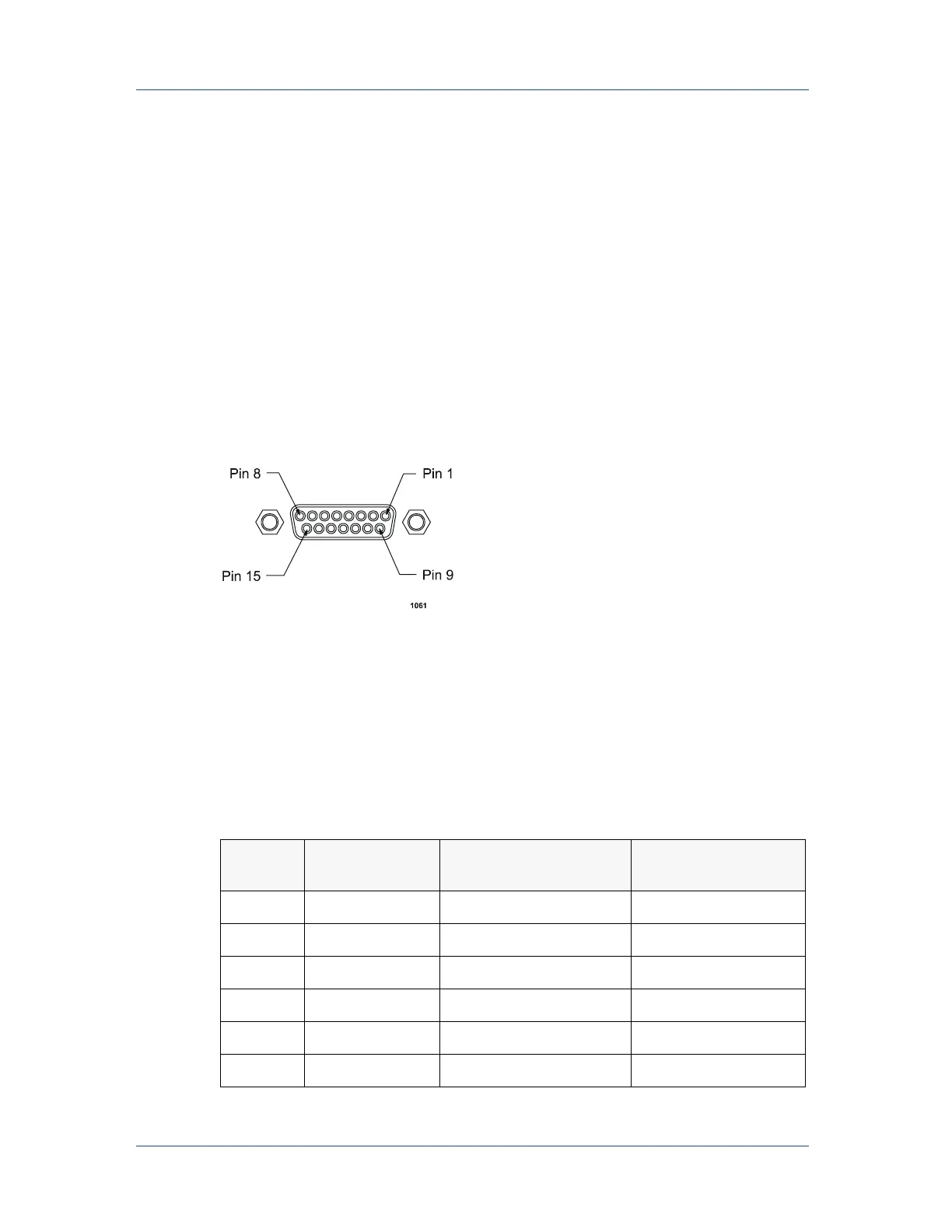

Figure 5-8. Master/Slave Pulse port connector
MASTER/SLAVE PULSE PORT PIN DESCRIPTIONS
The following table provides pin and signal descriptions for the Master/Slave Pulse
port.
Table 5-1. Master/Slave Pulse Port Pin and Signal Descriptions
Pin Associated
Pin
Pin Name Description
1
n/a unassigned unassigned
2
n/a unassigned unassigned
3
n/a unassigned unassigned
4
5 POFF-MSP Pulse Off signal
5
4 POFF-MSP Return Pulse Off signal return
6
7 PON-MSP Pulse On signal
