5702269-C I/O Communication and Control 4-47
Pinnacle™ Plus+ 10 kW
AE BUS (HOST) PORT
Your Pinnacle Plus+ supply features an AE Bus card with a 9-pin, female,
subminiature-D connector for interfacing with a host computer. You can do
everything from a host computer interfaced with the Pinnacle Plus+ supply that you
can do from the active front panel or Pinnacle Plus+ Remote Active Panel.
To obtain a diskette containing sample software with a limited command set, as well
as an executable version of the AE Bus software, please call AE Customer Support.
Note: If you have an isolated AE Bus card, your card provides isolation of more than
500 Vrms from the Pinnacle Plus+ unit's SELV logic and control circuitry to all
nine pins on the connector.
Make connections for the serial port through its 9-pin, female subminiature-D
connector on the rear panel of the unit.

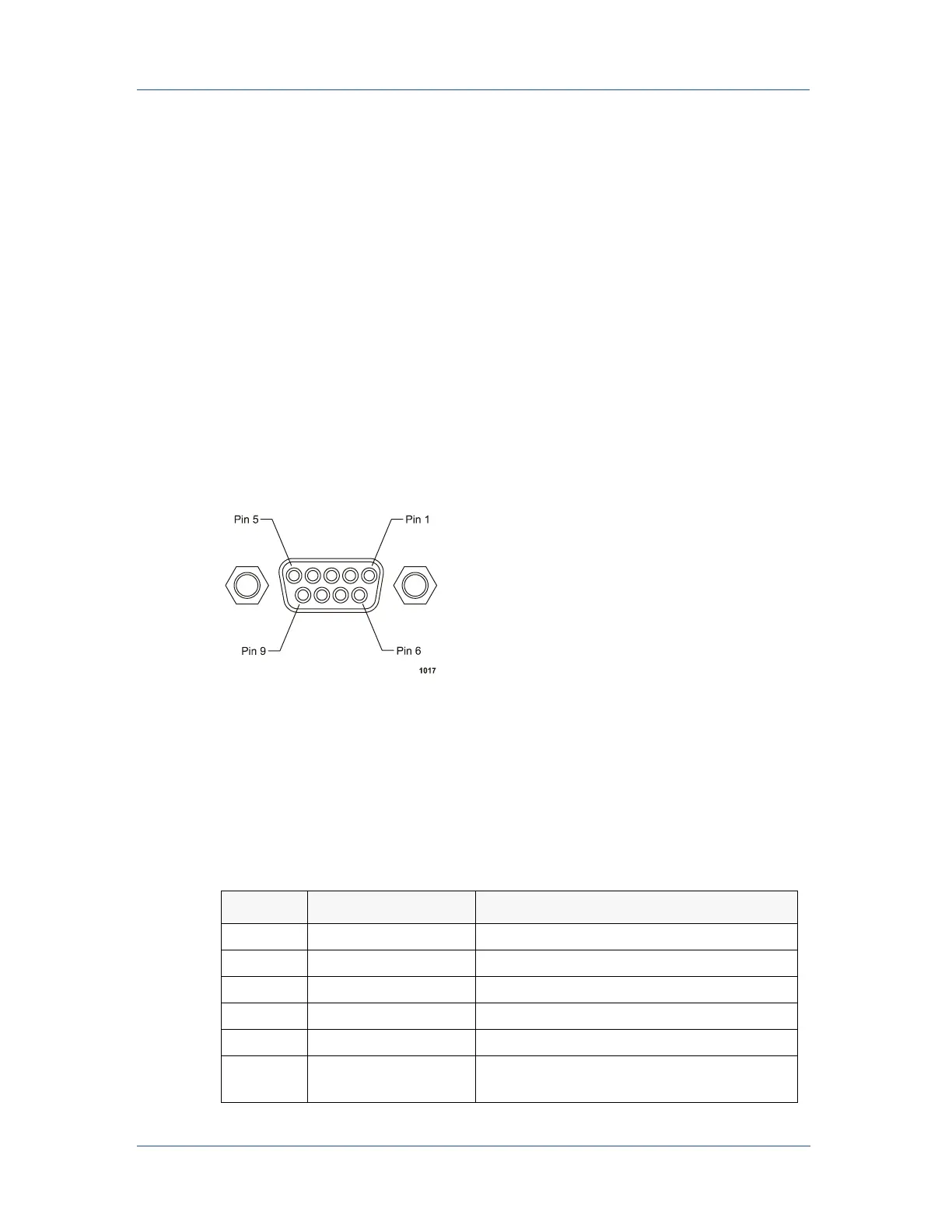

Figure 4-12. AE Bus port connector
Pin Descriptions
Refer to the following table for pin descriptions.
Table 4-14. AE Bus Host Port Pin Descriptions
Pin Pin Name Description
1 UNASSIGNED
2 TXD.D RS-232 transmit data
3 RXD.D RS-232 receive data
4 UNASSIGNED
5 COM.D Data common
6 TR- / R- RS-485 (-) transmit/receive data;
RS-422 (-) received data
