5702269-C Installation 5-19
Pinnacle™ Plus+ 10 kW
To Enable/Disable Broadcast Hard Arc Detection:
• Press SUPPLY → PULSE→ B’CAST
Sync Pulse Port Connector

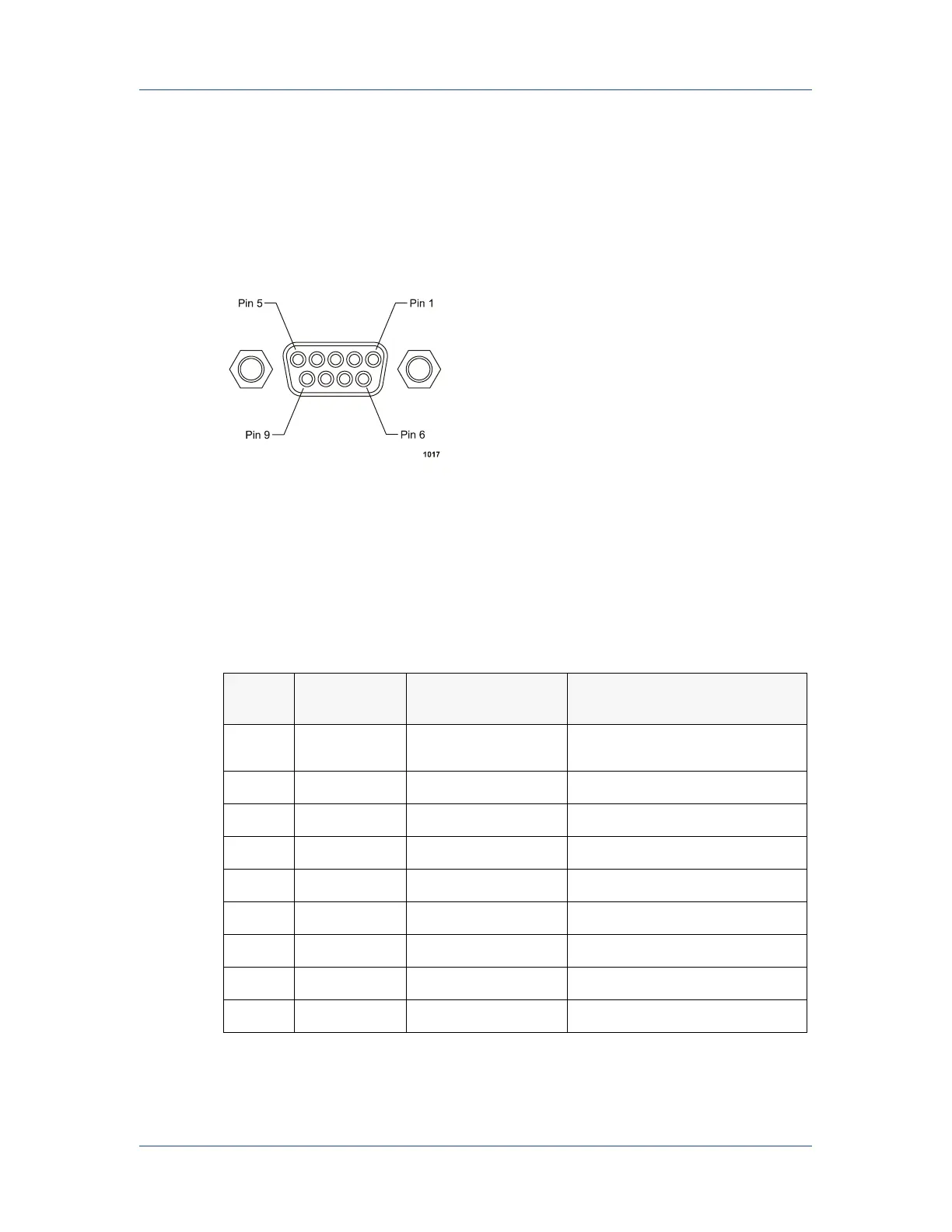

Figure 5-11. Sync Pulse connector
Sync Pulse Port Pin Descriptions
The following table provides pin and signal descriptions for the Sync Pulse port.
Table 5-3. Sync Pulse Port Pin and Signal Descriptions
Pin Associated
Pin
Pin Name Description
1
6 SYNC_POWER_SE
NSE
Verifies all units have logic
control power
2
6 +8V +8V for future distribution box
3
7 HARC-SP Hard Arc
4
8 PON-SP Pulse On
5
9 POFF-SP Pulse Off
6
1 and 2 GND Ground (chassis)
7
3 HARC return Hard Arc signal return
8
4 PON-SP return Pulse On signal return
9
5 POFF-SP return Pulse Off signal return
