MASTER/SLAVE CONFIGURATION EXAMPLES
The following block diagram provides a high-level view of possible configurations for
a Pinnacle Plus+ master/slave system.
Note: See “Sync Pulse Configuration Examples” on page 5-20 for further possible
configurations for master/slave operations.
Master/Slave Pulse System
The following configuration allows you to configure up to 6 Pinnacle Plus+ power
supplies in a master/slave configuration. In this configuration the errors are shared
among the network units.

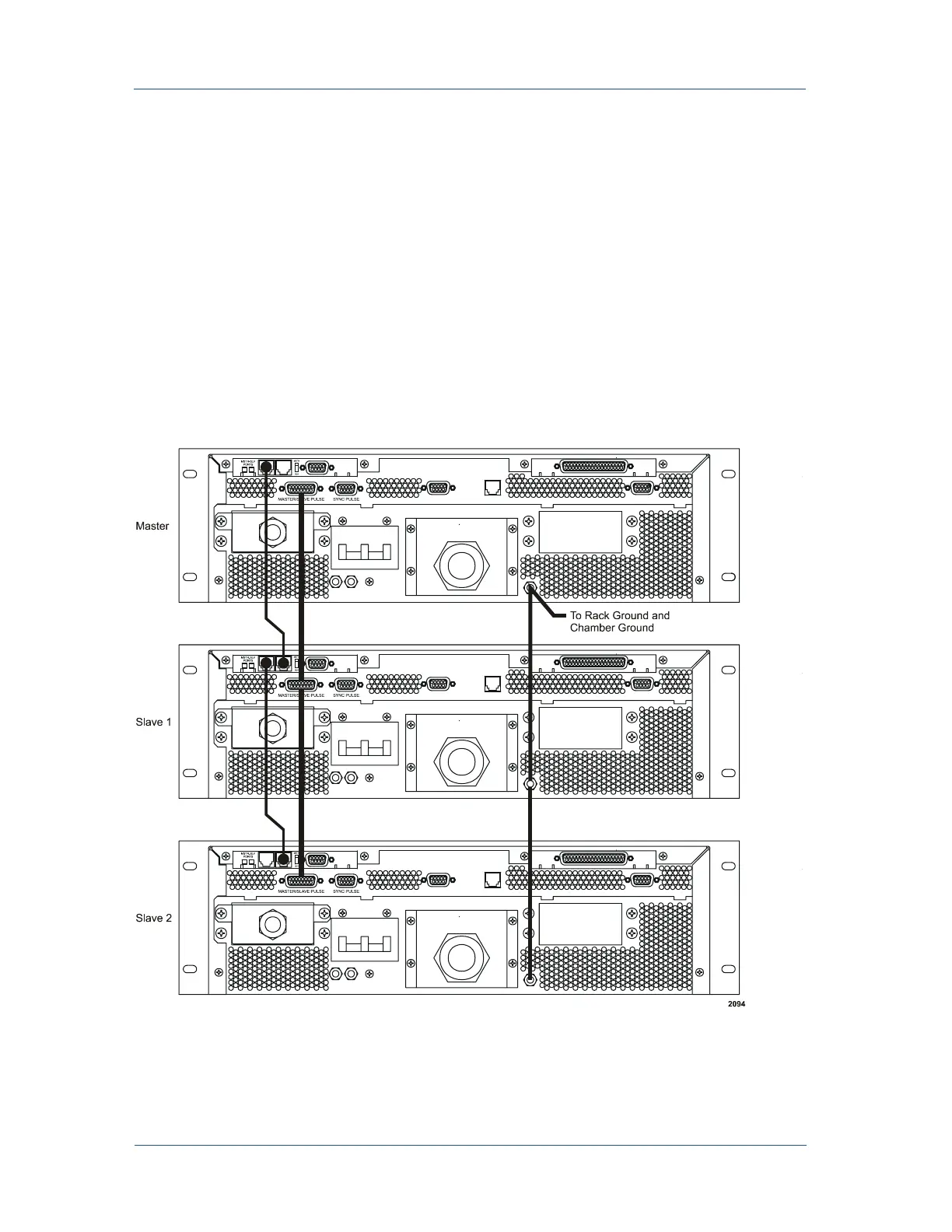

Figure 5-10. Master/Slave Pulse system diagram
