sitting right side up, the numbers are at the top of the DIP. The following illustration
shows the orientation of the AE Bus port and DIP switch on the back panel of the
Pinnacle supply.

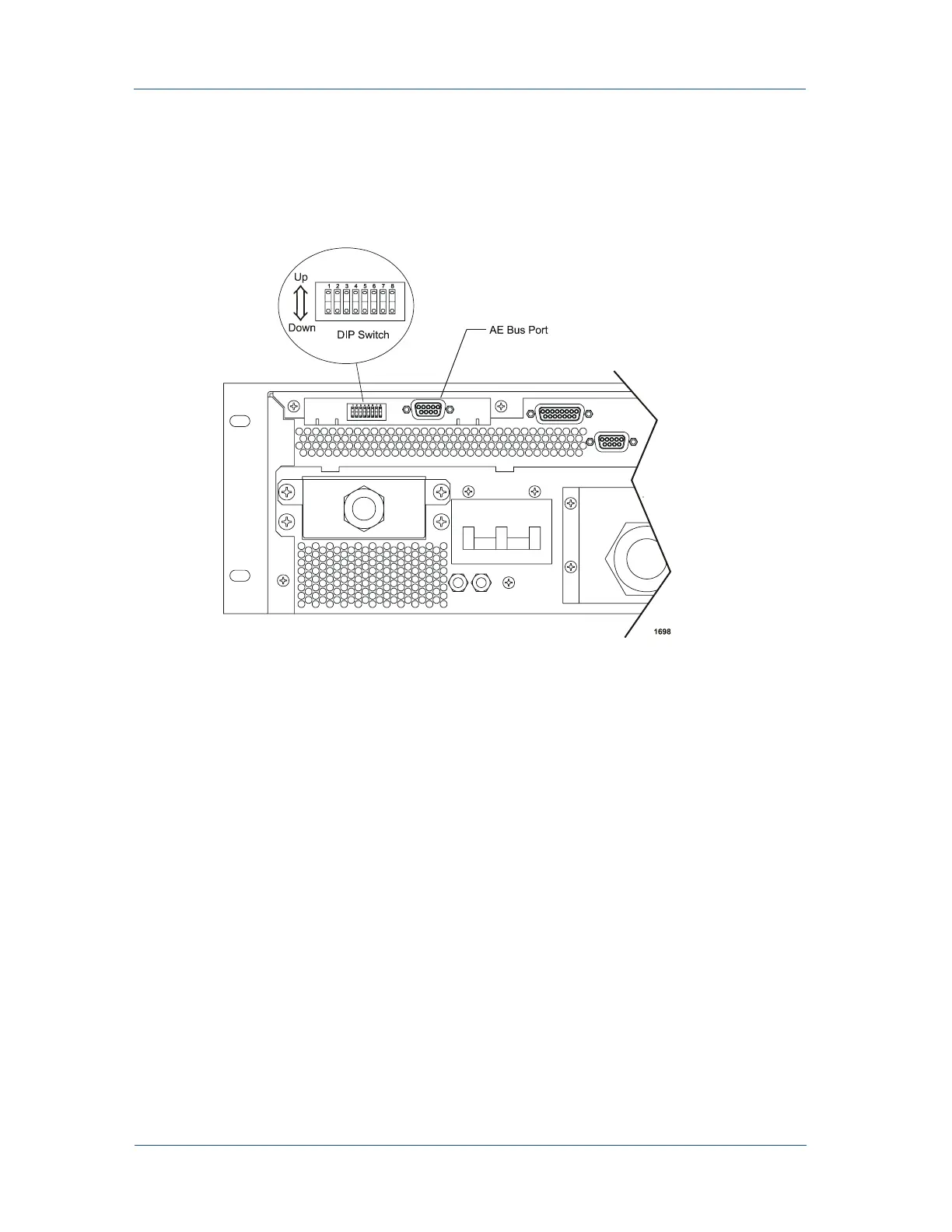

Figure 4-15. Orientation of the AE Bus port and external DIP switch on the
back panel
The first five min-switches (A4 to A0) are used to specify the address of a Pinnacle
Plus+ unit (see Table 4-15 on page 4-52), which a host computer must include in the
message packet it sends. Each Pinnacle Plus+ supply in a network must have a unique
address.
The next two min-switches (BR1 and BR0) specify the baud rate for the AE Bus port
(see Table 4-15 on page 4-52). The last min-switch allows you to choose between RS-
232 or differential communication (RS-485 or RS-422). RS-232 is selected when the
switch is up. Differential communication is selected when the switch is down.
Note: You must remove the power supply cover to change between RS-422 and
RS-485.
