4-20 I/O Communication and Control 5702269-C
Advanced Energy
®

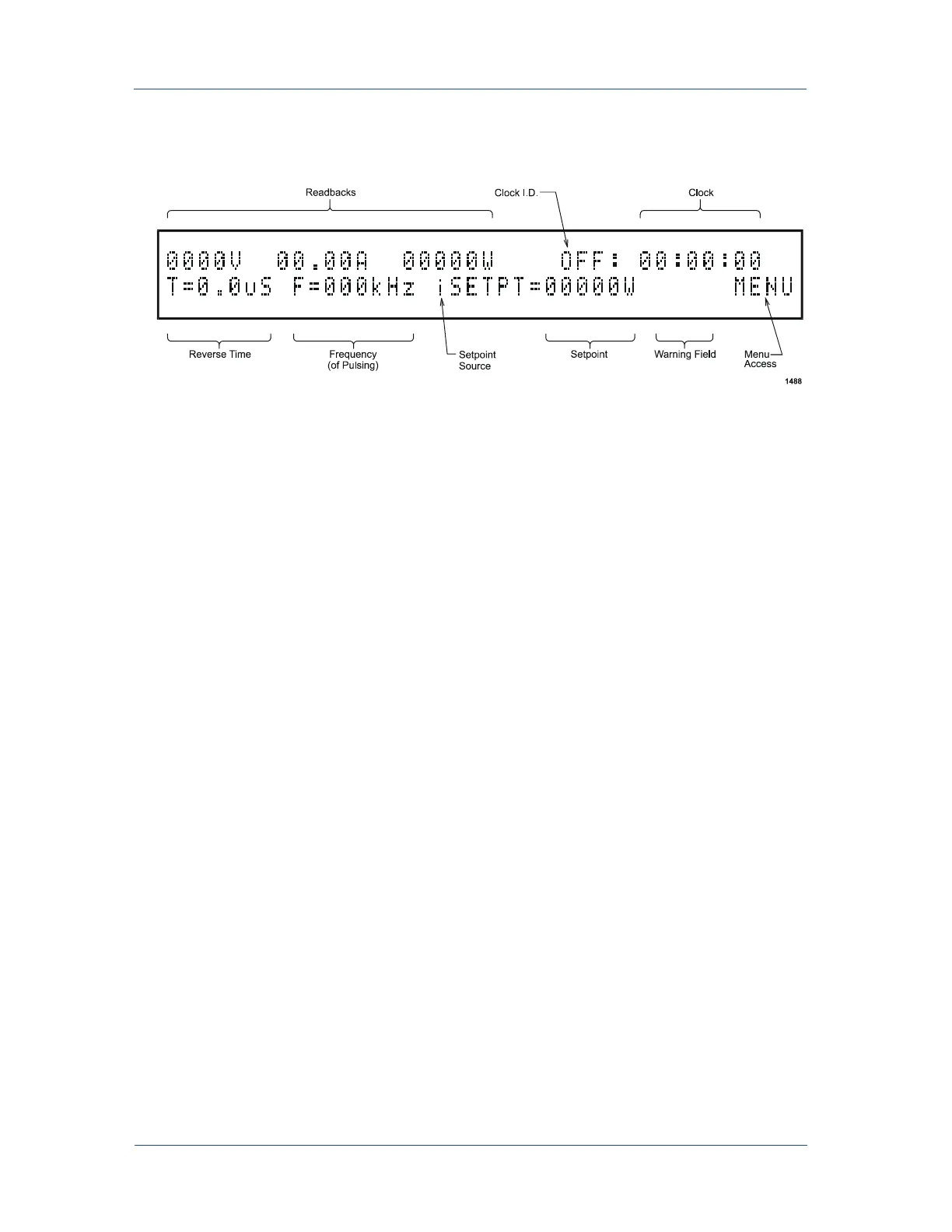

Figure 4-6. Two-line output display screen
The following information appears in the top line of the display (left to right):
• Voltage readback
• Current readback (in amps)
• Power readback (in watts)
• Clock ID: what the supply is doing
4
RMP = output is on and ramping
4
RUN = output is on and the clock shows the elapsed time
4
OFF = output is off and the clock shows the last run time
•Clock
Note: If the last run time is < 1 minute, the seconds will display in hundredths
precision. That is, 12 1/2 s will display as 12.50 s.
The following information appears in the bottom line of the display (left to right):
• Reverse time
• Frequency (of pulsing)
• Set Point Source (i = internal, e = external)
•Set Point
• Regulation mode (W = Power, A = Current, V = Volts)
• Warning field: flashes the following codes
4
ARCLIM = arc limit reached
Note: ARCLIM is only active when the Hard Arc Counting feature is enabled.
4
EOTL = end of target life
4
OC = over-current condition
4
OV = over-voltage condition
