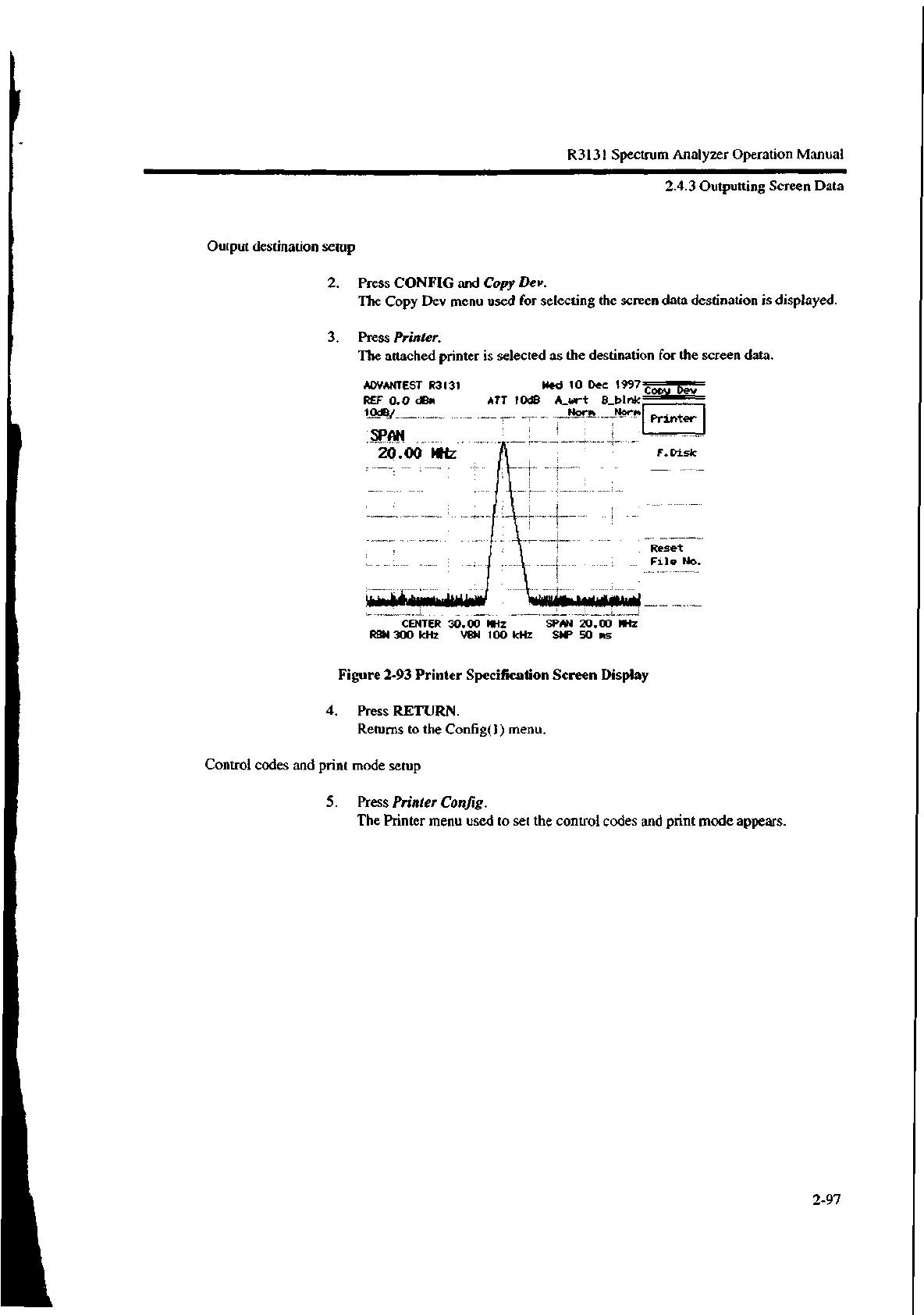

R3131 Spectrum Analyzer Operation Manual
2.4.3 Outputting Screen Data
Output destination setup
2. Press CONFIG and Copy Dev.
The Copy Dev menu used for selecting the screen data destination is displayed.
3. Press Printer.
The attached printer is selected as the destination for the screen data.
ADVANTEST R3131
REF 0.0 can
10dIV_
SPAN
20.00 MHz
Wed 10 Dec 1997
Copy Dev
ATT 10dB A_wrt B_blnk
NorrkNorp
CENTER 30.00 MHz SPAN 20.00 MHz
RBW 300 kHz VBW 100 kHz SWP 50 me
Figure 2-93 Printer Specification Screen Display
Printer
F.D i sk
Reset
File No.
4. Press RETURN.
Returns to the Config(1) menu.
Control codes and print mode setup
5. Press Printer Config.
The Printer menu used to set the control codes and print mode appears.
2-97
