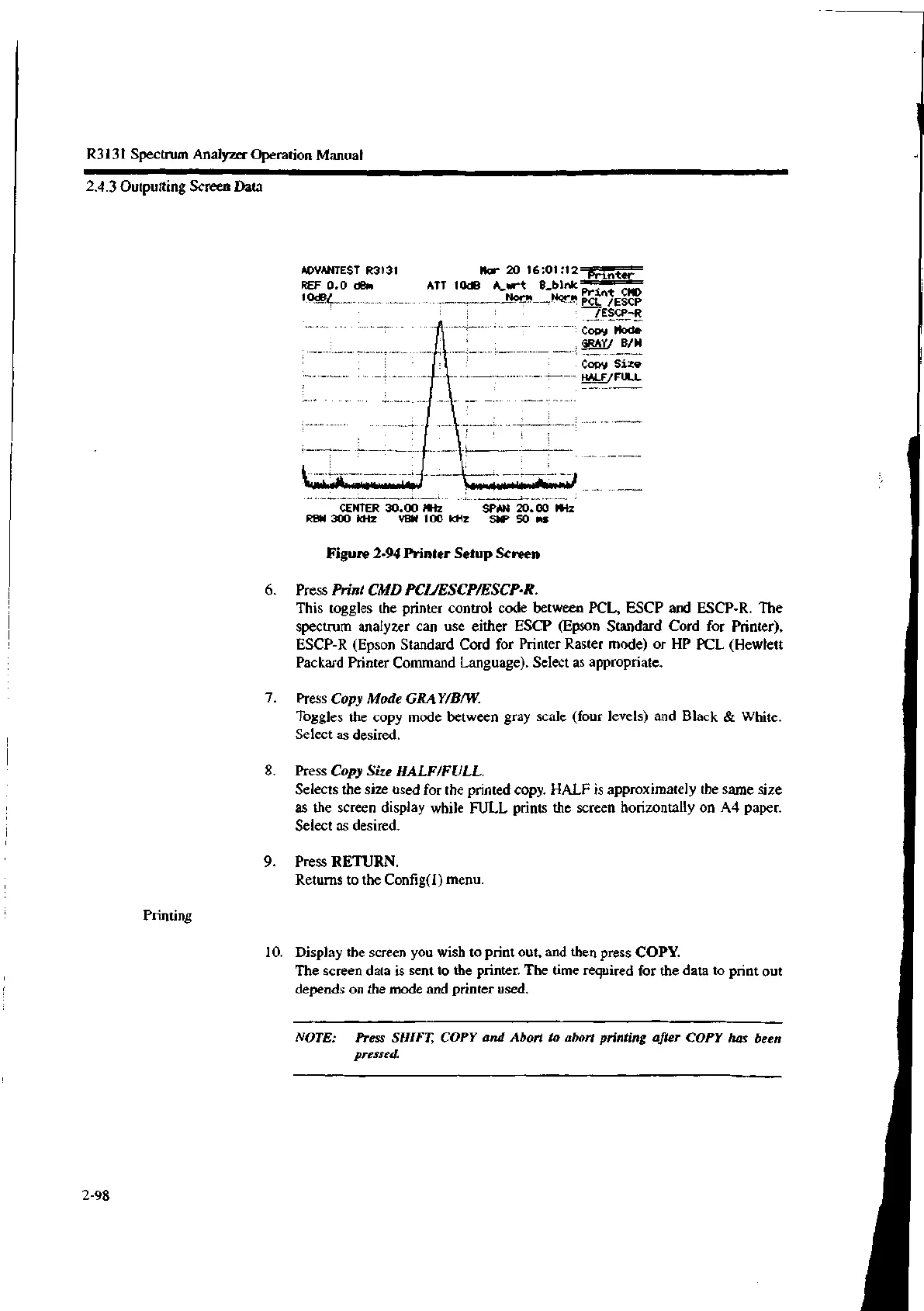

R313I Spectrum Analyzer Operation Manual
2.4.3 Outputting Screen Data
Printing
2-98
ADVANTEST R3131 Mar 20 16:01 :12—F
rinter
REF 0.0 dBm ATT 10dB A_wrt 13_blnk Printcom
l- C._.__._.___ Nor" Norm PCL /ESCP
/ESCP-R
-.--Copy Mode
GRAY/ B/W
— ,
Copy Size
HALF/FULL
CENTER 30.00 MHz SPAN 20.00 MHz
RBW 300 kHz VBW 100 kHz SWP SO ms
Figure 2-94 Printer Setup Screen
6. Press Print CMD PCIJESCP/ESCP-R.
This toggles the printer control code between PCL, ESCP and ESCP-R. The
spectrum analyzer can use either ESCP (Epson Standard Cord for Printer),
ESCP-R (Epson Standard Cord for Printer Raster mode) or HP PCL (Hewlett
Packard Printer Command Language). Select as appropriate.
7. Press Copy Mode GRAY/B/W.
Tog gle s the copy mode between gray scale (four levels) and Black & White.
Select as desired.
8. Press Copy Size HALF/FULL.
Selects the size used for the printed copy. HALF is approximately the same size
as the screen display while FULL prints the screen horizontally on A4 paper.
Select as desired.
9. Press RETURN.
Returns to the Config(1) menu.
10. Display the screen you wish to print out, and then press COPY.
The screen data is sent to the printer. The time required for the data to print out
depends on the mode and printer used.
NOTE: Press SHIFT, COPY and Abort to abort printing after COPY has been
pressed.
