R3131 Spectrum Analyzer Operation Manual
3.3.15 MKR -3 Key (Marker --))

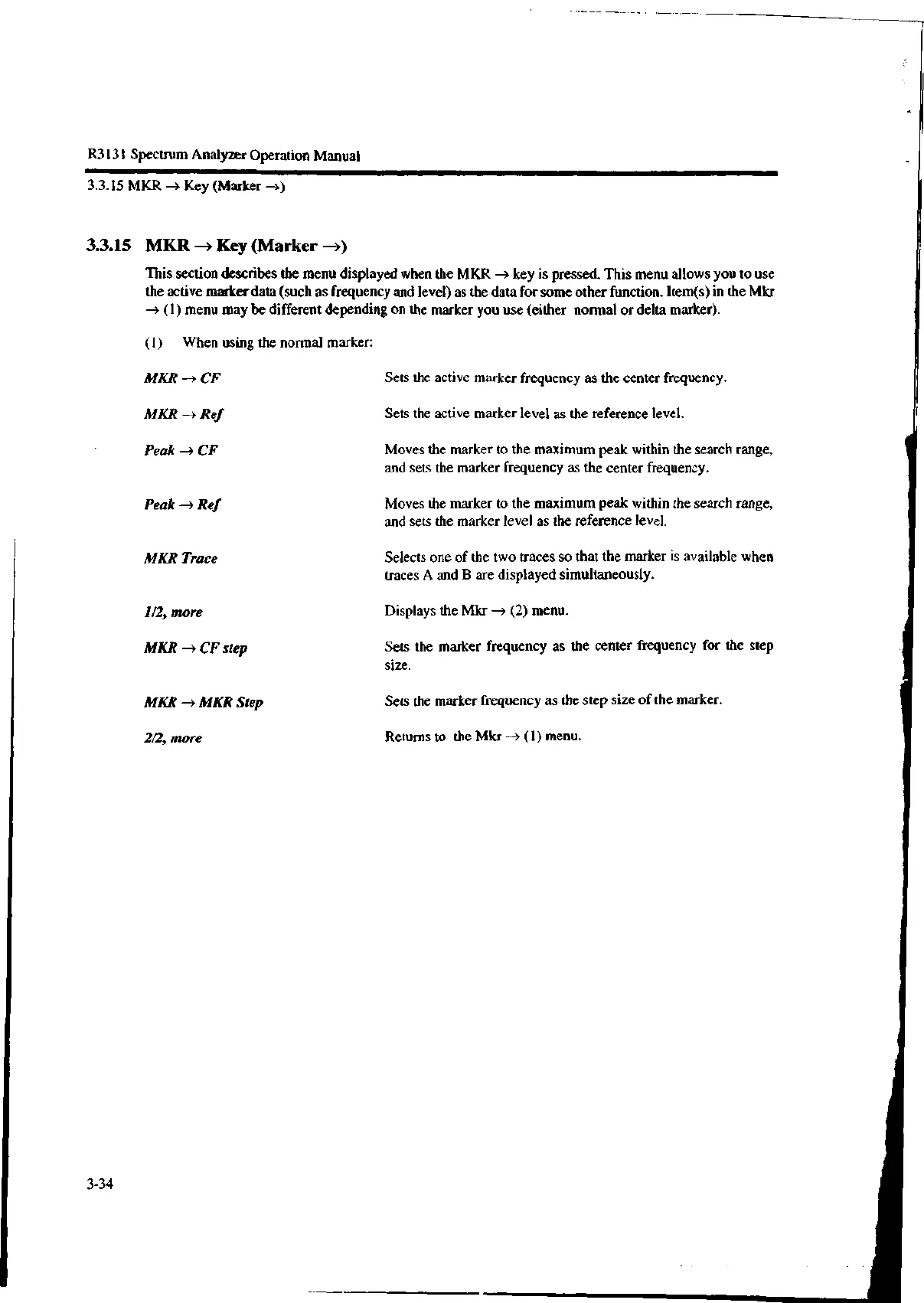

3.3.15 MKR Key (Marker -)
This section describes the menu displayed when the MKR key is pressed. This menu allows you to use
the active marker data (such as frequency and level) as the data for some other function. Item(s) in the Mkr
(1) menu may be different depending on the marker you use (either normal or delta marker).
(I) When using the normal marker:
MKR CF
MKR --> Ref
Peak --> CF
Peak --> Ref
MKR Trace
1/2, more
MKR CF step
Sets the active marker frequency as the center frequency.
Sets the active marker level as the reference level.
Moves the marker to the maximum peak within the search range,
and sets the marker frequency as the center frequency.
Moves the marker to the maximum peak within the search range,
and sets the marker level as the reference level.
Selects one of the two traces so that the marker is available when
traces A and B are displayed simultaneously.
Displays the Mkr (2) menu.
Sets the marker frequency as the center frequency for the step
size.
MKR MKR Step Sets the marker frequency as the step size of the marker.
2/2, more Returns to the Mkr ---> (1) menu.
3-34
