ADVANTEST R3131 Series User Manual

R3131 Spectrum Analyzer Operation Manual

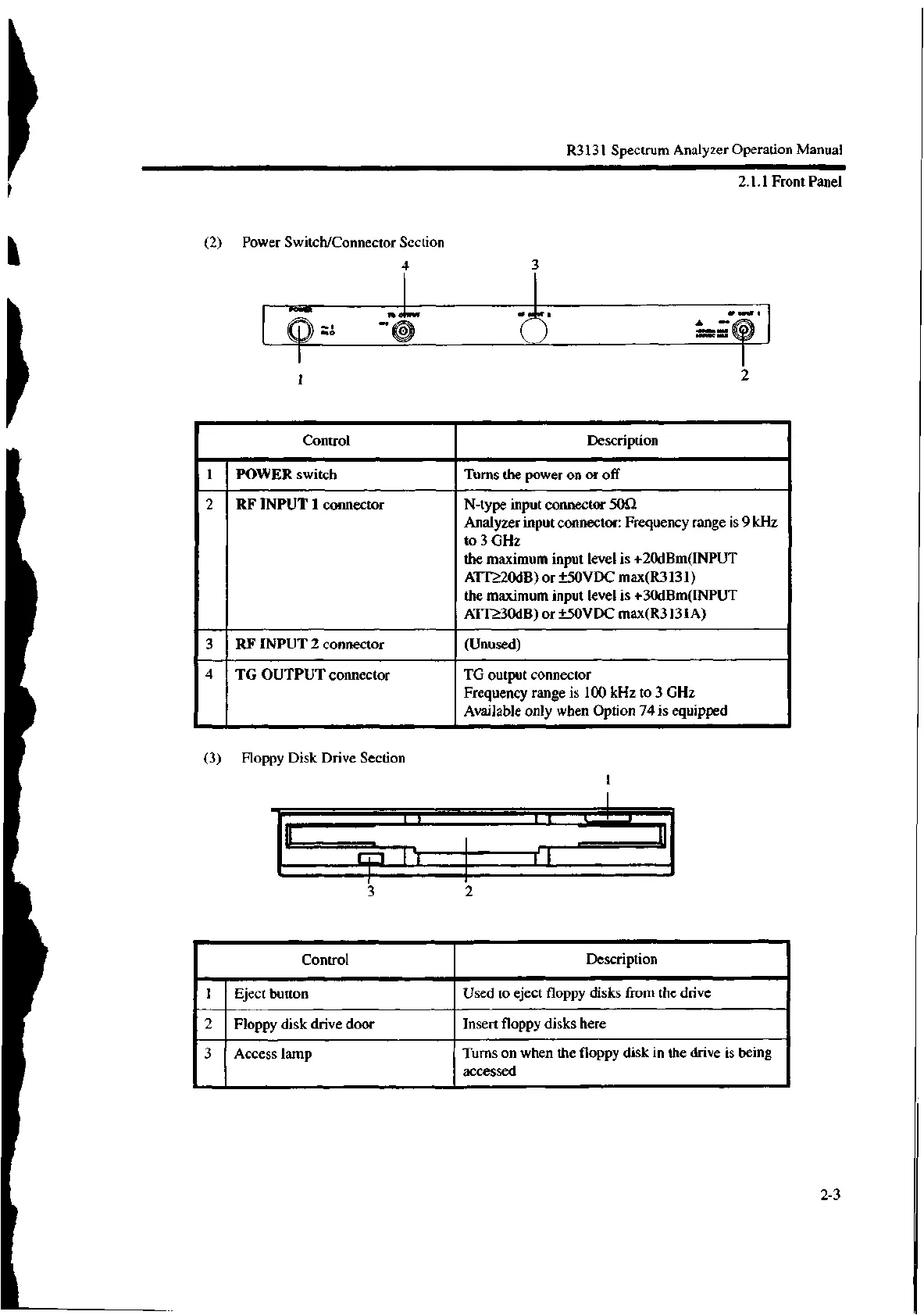

Control Description
1 POWER switch
Turns the power on or off
2 RF INPUT 1 connector N-type input connector son
Analyzer input connector: Frequency range is 9 kHz
to 3 GHz
the maximum input level is +20dBm(INPUT
ATTI.20dB) or ±50VDC max(R3131)
the maximum input level is +30dBm(INPUT
AM30dB) or ±50VDC max(R3131A)
3 RF INPUT 2 connector
(Unused)
4 TG OUTPUT connector TG output connector
Frequency range is 100 kHz to 3 GHz
Available only when Option 74 is equipped
Control
Description
I Eject button
Used to eject floppy disks from the drive
2 Floppy disk drive door
Insert floppy disks here
3
•
Access lamp
Turns on when the floppy disk in the drive is being
accessed
2.1.1 Front Panel
I
(2) Power Switch/Connector Section
4
ci)
•••
MI
MI MY,
moo
.0011.
•111/40t ••111
(3) Floppy Disk Drive Section
1
I I
T 1
1Ii
2-3

ADVANTEST R3131 Series Specifications

General

Brand	ADVANTEST
Model	R3131 Series
Category	Measuring Instruments
Language	English
