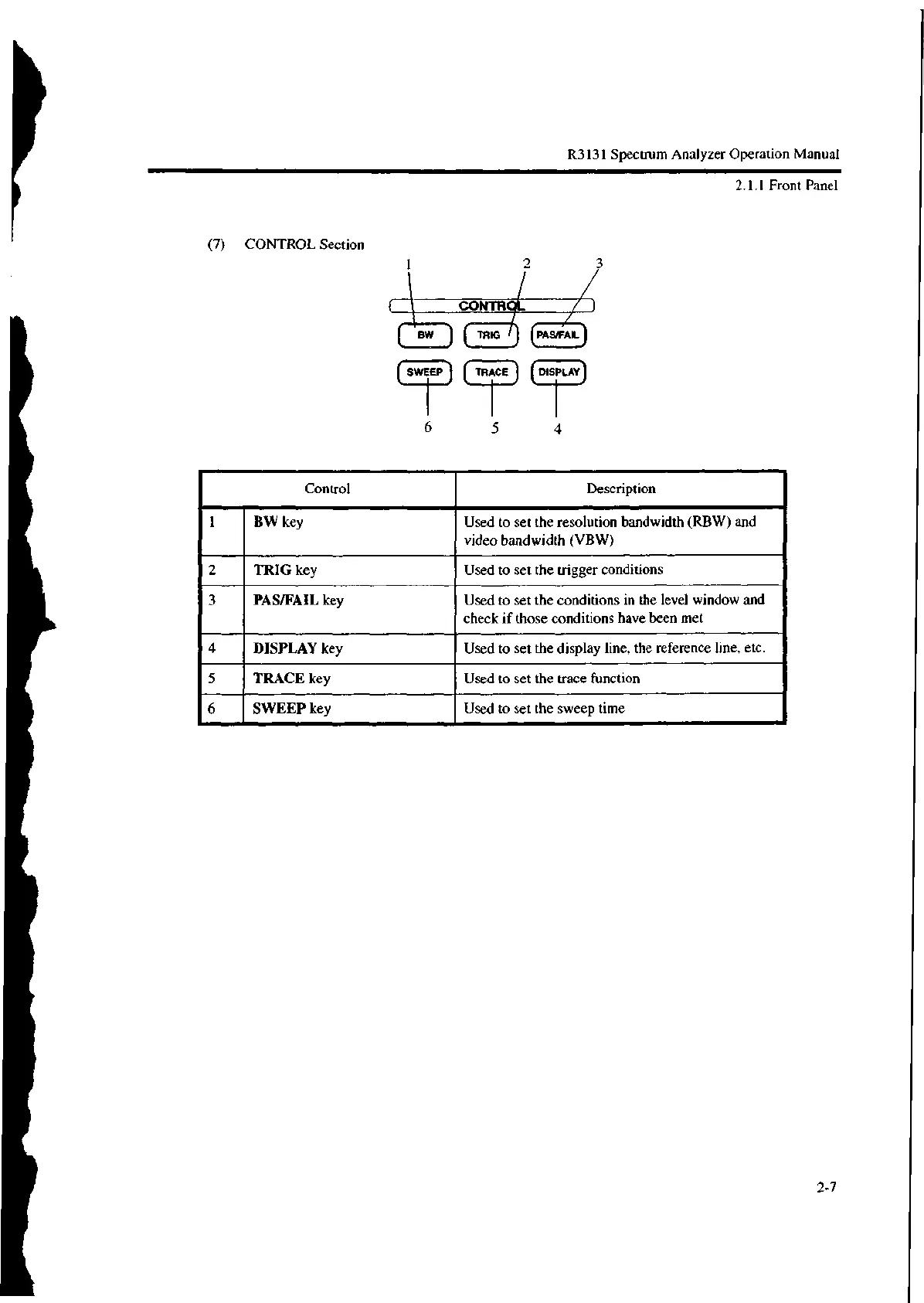

R3131 Spectrum Analyzer Operation Manual

Control Description

BW key Used to set the resolution bandwidth (RBW) and

video bandwidth (VBW)

2 TRIG key

Used to set the trigger conditions

PAS/FAIL key

Used to set the conditions in the level window and

check if those conditions have been met

DISPLAY key

Used to set the display line, the reference line, etc.

5 TRACE key

Used to set the trace function

SWEEP key

Used to set the sweep time

(7) CONTROL Section

(DISPLAY)

2.1.1 Front Panel

2-7
