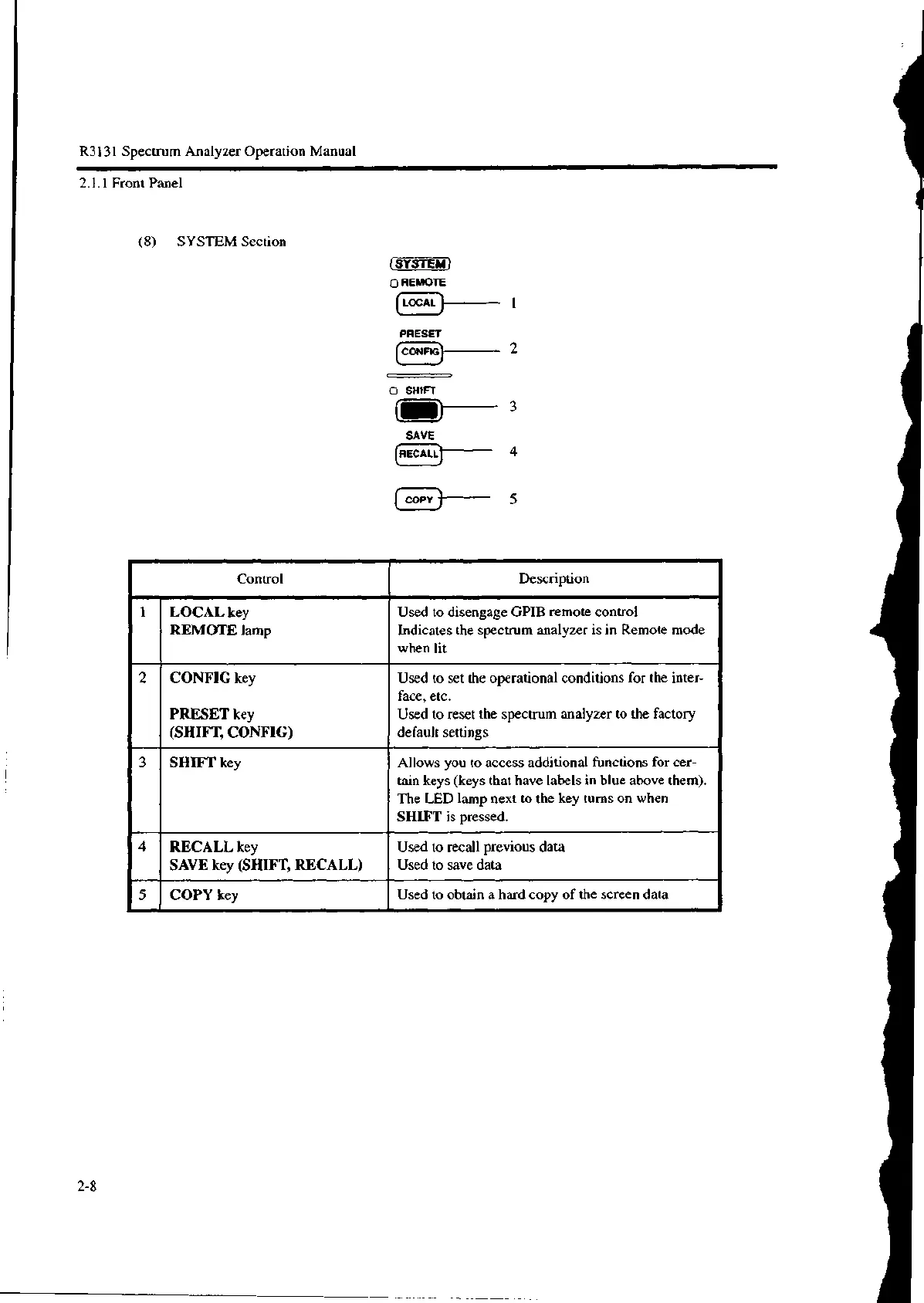

R3131 Spectrum Analyzer Operation Manual
(8) SYSTEM Section
(-SY STM
0 REMOTE
(LOCAL
1
PRESET
2
(CONFIG)
o SHIFT
Il
3
SAVE
(RECALL]
4
( COPY
5
Control
Description
1 LOCAL key
REMOTE lamp
Used to disengage GPIB remote control
Indicates the spectrum analyzer is in Remote mode
when lit
2 CONFIG key
PRESET key
(SHIFT, CONFIG)
Used to set the operational conditions for the inter-
face, etc.
Used to reset the spectrum analyzer to the factory
default settings
3 SHIFT key
Allows you to access additional functions for cer-
tain keys (keys that have labels in blue above them).
The LED lamp next to the key turns on when
SHIFT is pressed.
4 RECALL key
SAVE key (SHIFT, RECALL)
Used to recall previous data
Used to save data
5 COPY key
Used to obtain a hard copy of the screen data
2.1.1 Front Panel
2-8
