TRANSMISSION
5-3
5

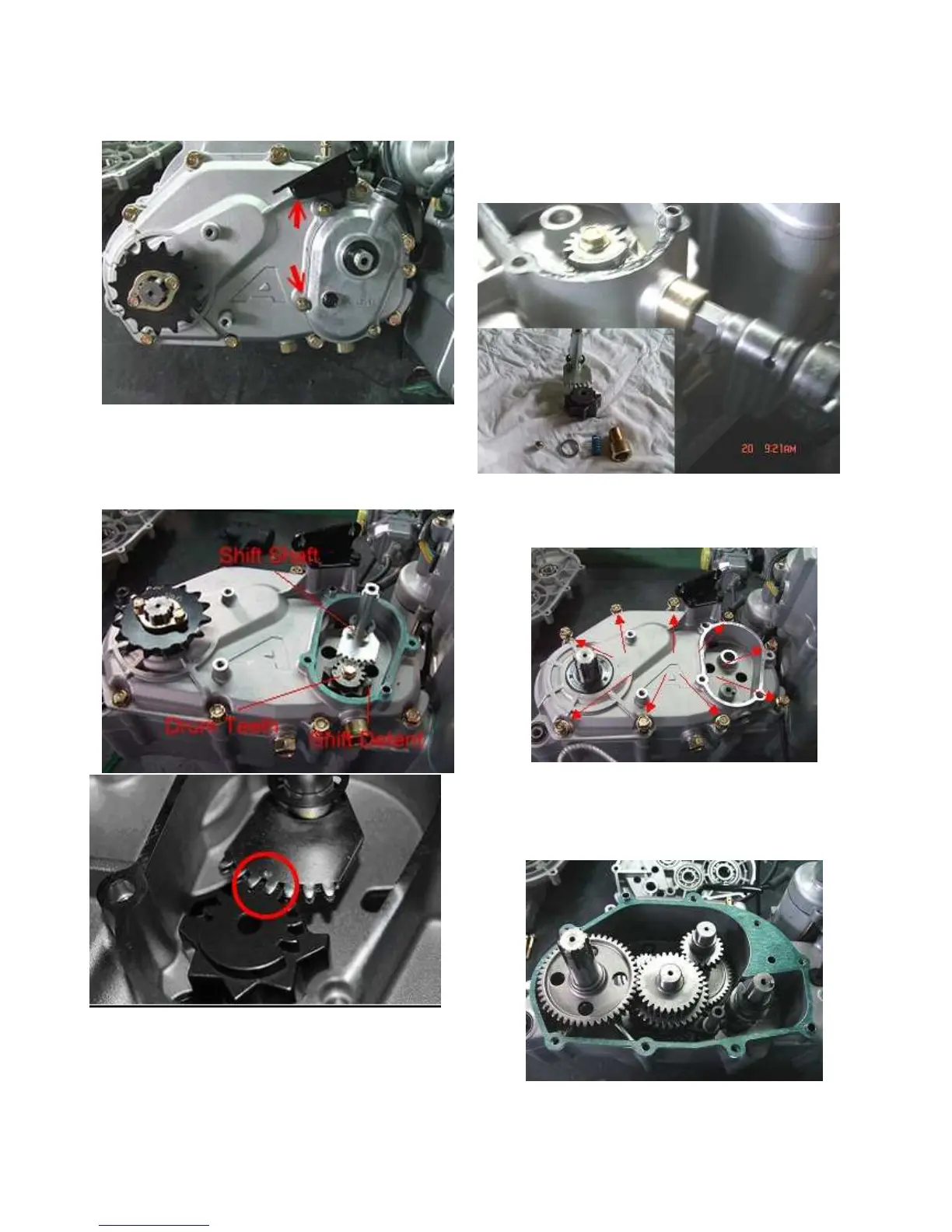

4. Remove shift cover and cables bracket screws.
5. Remove shift cover and the bracket.
6. Remove gasket and discard.
7. Note timing of shift shaft before removing. The center tooth on
shift shaft is positioned between the two dots on the drum teeth.
8. Remove the shift shaft by pulling straight outward.
9. Remove detent ball, spring and socket bolt.
10. Remove shift detent.
TRANSMISSION DISASSEMBLY
1. Remove the cover screws.
2. Remove cover or with output shaft. Push or tap on shift shaft to
keep it in the case.
3. Remove gasket and discard.
