BRAKES
8-7

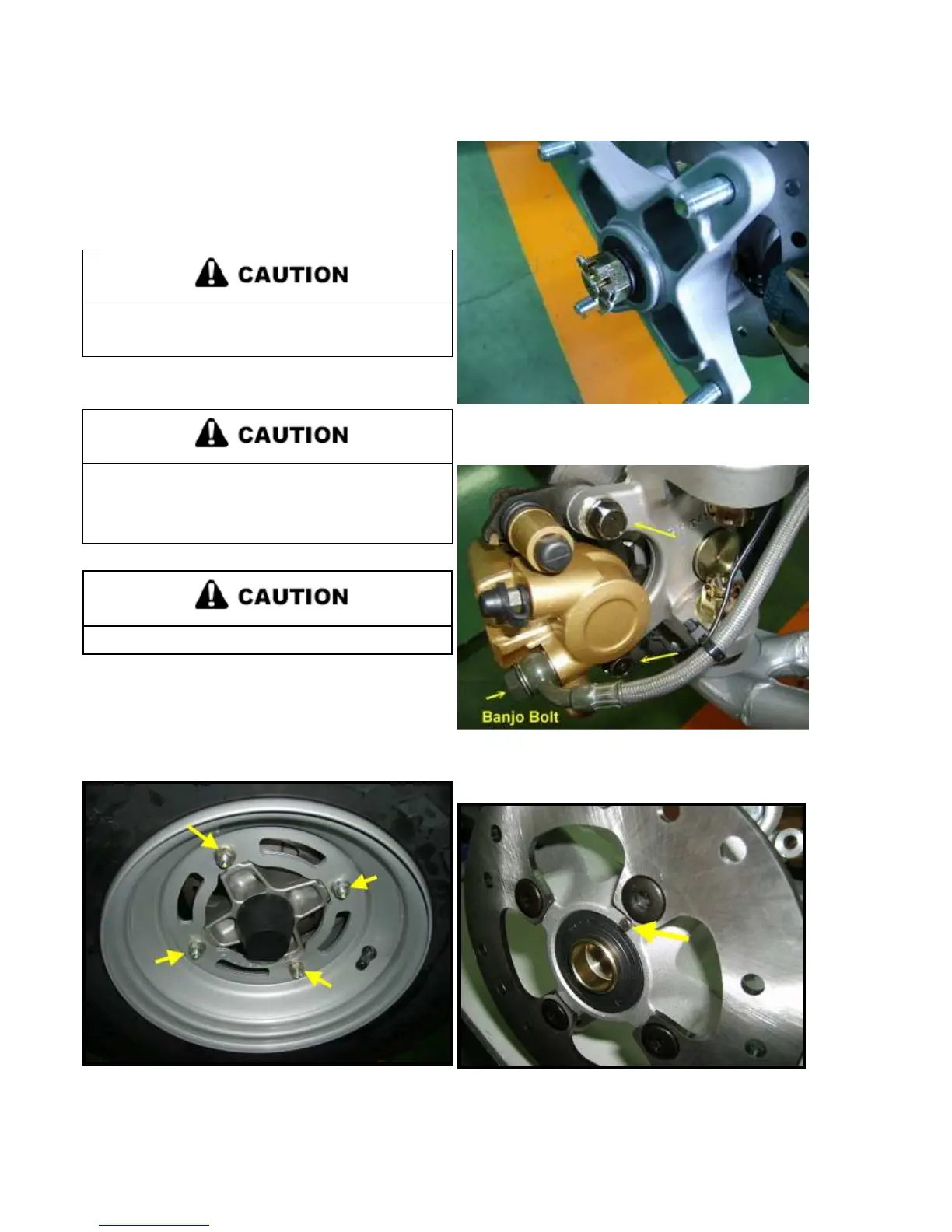

FRONT BRAKE REPLACEMENT / BLEEDING
PROCEDURE
NOTE: When bleeding the brakes or replacing the
fluid always start with the caliper farthest from the
master cylinder.
Always wear safety glasses during these
procedures.
Brake fluid will damage finished surfaces. Do not
allow brake fluid to come in contact with finished
surfaces.
Severe injury could occur if machine tips or falls.
1. Elevate front end of ATV off the ground far enough to
remove the wheel.
2. Remove the dust cap and cotter pin.
3. Remove wheel nuts and remove wheel and rim as an
.
4. Remove the cotter pin, nut and washer.
5. Remove the caliper two fastens bolts on knuckle and the
banjo bolt on caliper and oil tube.
6. Remove the wheel hub and caliper as an assembly.
7. Ensure do not lose speedometer magnet.
8. Inspect the brake pads contact disc surface for excessive
wear, pitting, or damage. Replace if necessary.
