ENGINE
4-43
18. Install rocker and cam sprocket cover then torque bolts to
specification.

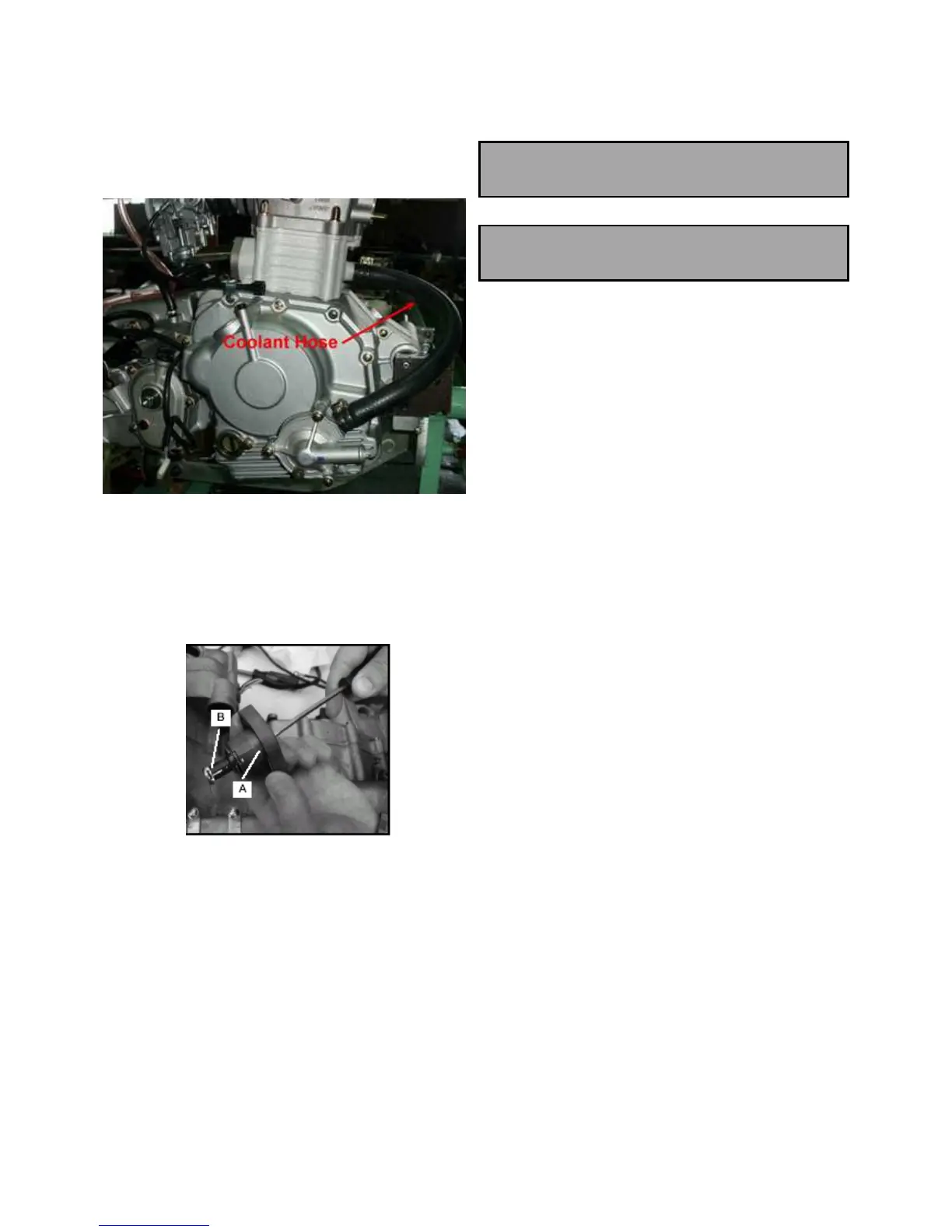

19. Connect coolant hose with cylinder and coolant pump.
CAM CHAIN TENSIONER INSTALLATION
1. Using a small flat blade screwdriver, turn the tensioner
clockwise to retract the plunger (B) all the way into the
tensioner body.
2. With the plunger retracted, install the tensioner assembly
with a new gasket and tighten the bolts to specification.
TENSIONER BOLT TORQUE:
10 Nm (7.4 ft. lbs.)
3. Install the tensioner cap. Torque cap to specification.
TENSIONER CAP TORQUE:
10 Nm (7.4 ft. lbs.)
4. Slowly rotate engine two to three revolutions and re-check
cam timing once chain is tight.
