Aeon COBRA 400 2012 User Manual

BRAKES
8-19
3. Loosen rear caliper fastener nut, adjusting bolt then remove
swing arm.
4. Remove the return spring and cable from swing arm.

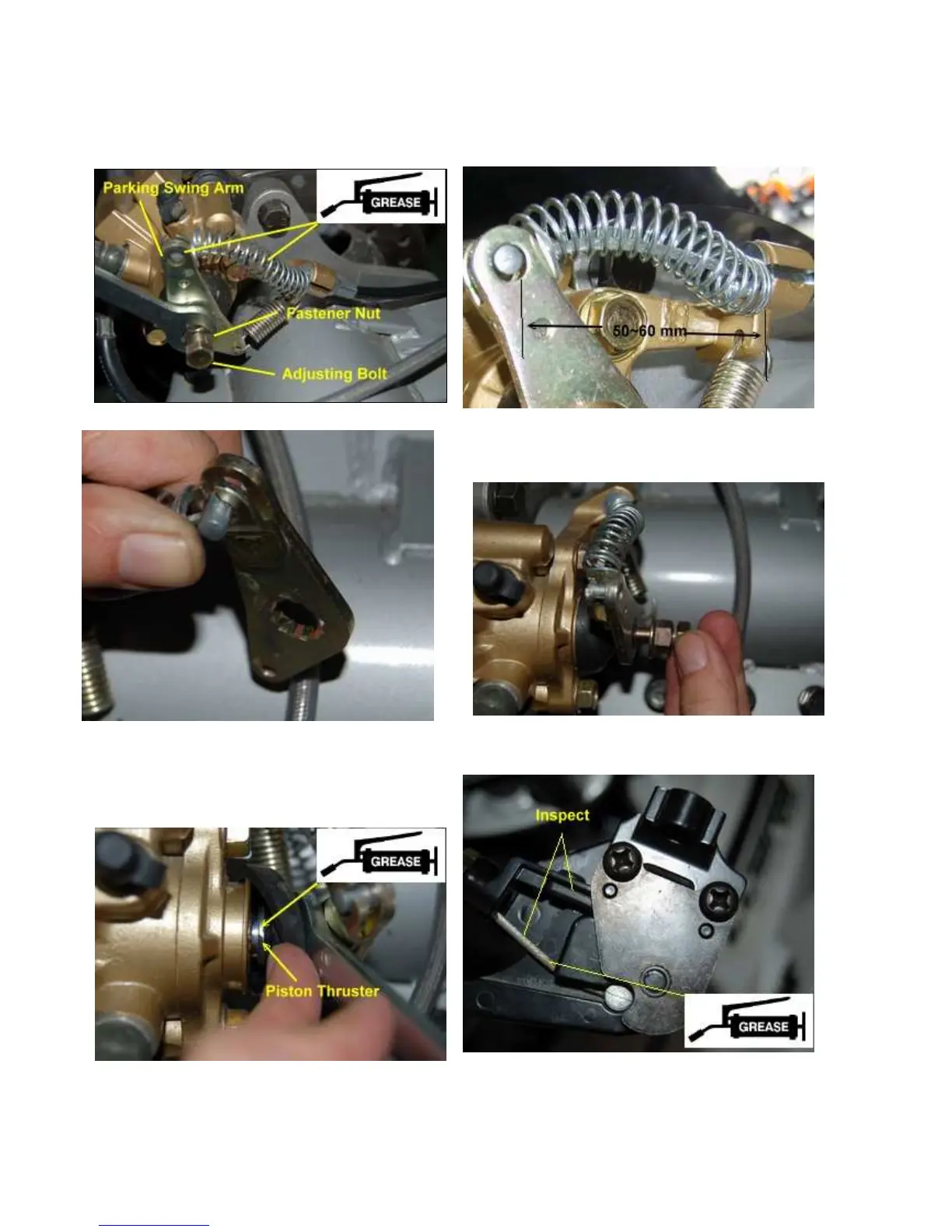

PARKING BRAKE INSTALLATION,
INSPECTION AND ADJUSTMENT
1. Fully turn the piston thruster then loosen about 5mm back.
2. Replace rubber dust-proof if worn or cracked.
3. Install the both spring and swing to caliper.
4. Ensure the upper return spring 50~60mm with cable adapter.
5. Install the adjusting bolt and fastener nut an assembly.
6. Fully turn the adjusting bolt to end then loosen it 3/4 circuit.
Fasten the nut present and security.
7. Inspect the parking lever cable and rubber pad, replace them
if worn or damaged.
q
