Aeon COBRA 400 2012 User Manual

ELECTRICAL
9-12

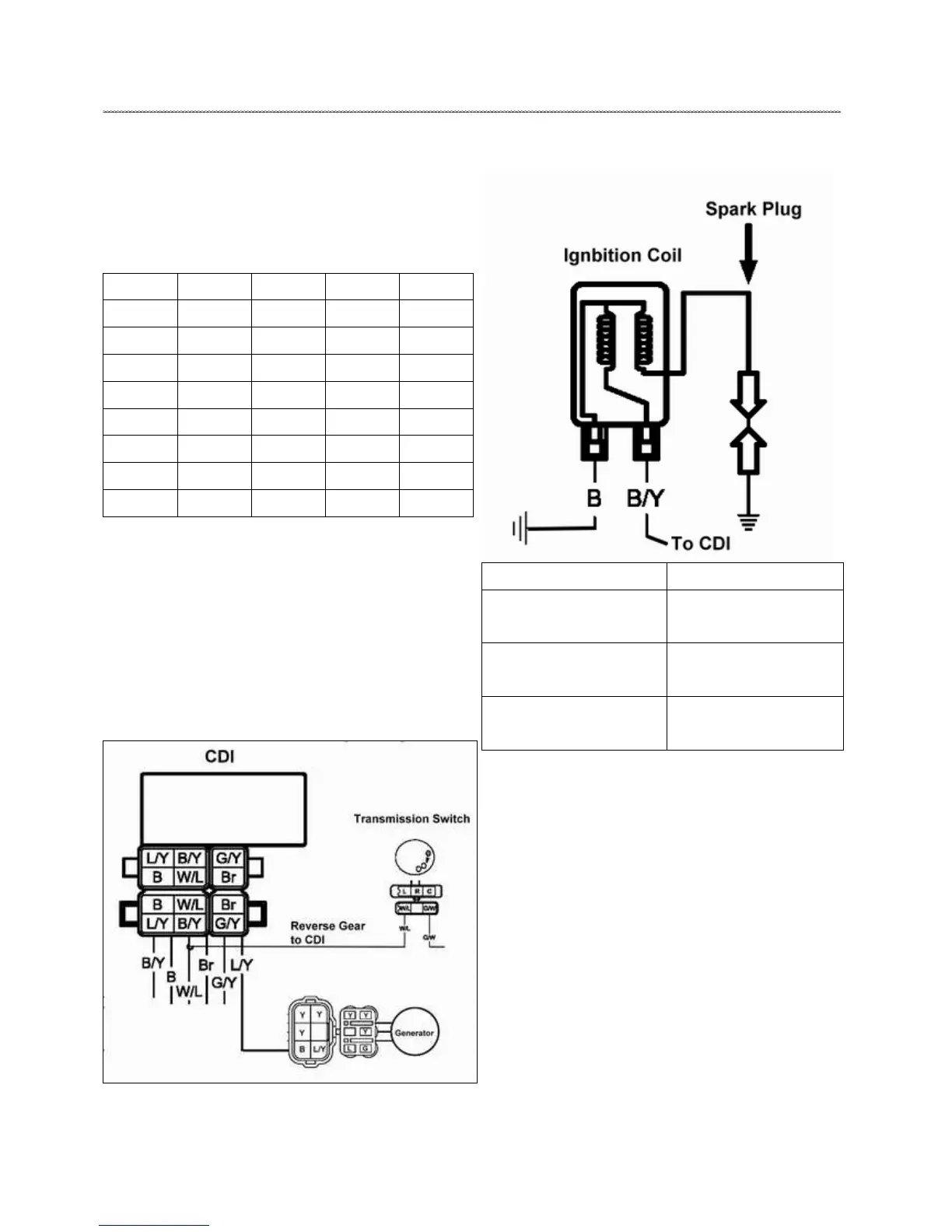

IGNITION SYSTEM
3. Press right button to setting tire diameter. If you pass the
desire number continue pressing right button it will repeat
again.
The setting code from d 15-0 to d 28-7.
The setting code show as following table
Tire Spec.
Rim OD.
Tire OD. Tire circle
Code
18x7-7 7 inch 457 mm
1436 mm
d 18-0
18x9.5-8
8 inch 459 mm
1441 mm
d 18-0
20x9-8
8 inch 508 mm
1595 mm
d 20-0
20x10-9
9 inch 508 mm
1595 mm
d 20-0
21-8-9
9 inch 536 mm
1683 mm
d 21-0
21x7-10
10 inch 536 mm
1683 mm
d 21-0
22x8-10
10 inch 561 mm
1763 mm
d 22-0
23x8-11
11 inch 588 mm
1842 mm
d 23-0
RPM LIMITER SPECIFICATIONS
NOTE: The ATV is limited through the CDI box
located
on the bulkhead under the front cab. In forward gear,
the CDI reads the RPM from the stator. The CDI acts
as a limiter when the peak RPM is met. In Reverse
Gear, the CDI also limits RPM,
taking a signal from the
shift drum switch that the vehicle is in reverse.
IGNITION COIL TEST
Test Description Resistance
Spade Connection to
Ground
0.5 -- 1.0 Ohms
Plug Cap (Cap Resistance
with Cap Removed)
4--5 K Ohms
Ignition Coil Secondary
Winding (Cap Removed)
5--9 K Ohms
ALTERNATOR OUTPUT TEST (AC AMP)
Three tests can be performed using a multi-meter to determine
the condition of the stator (alternator).
