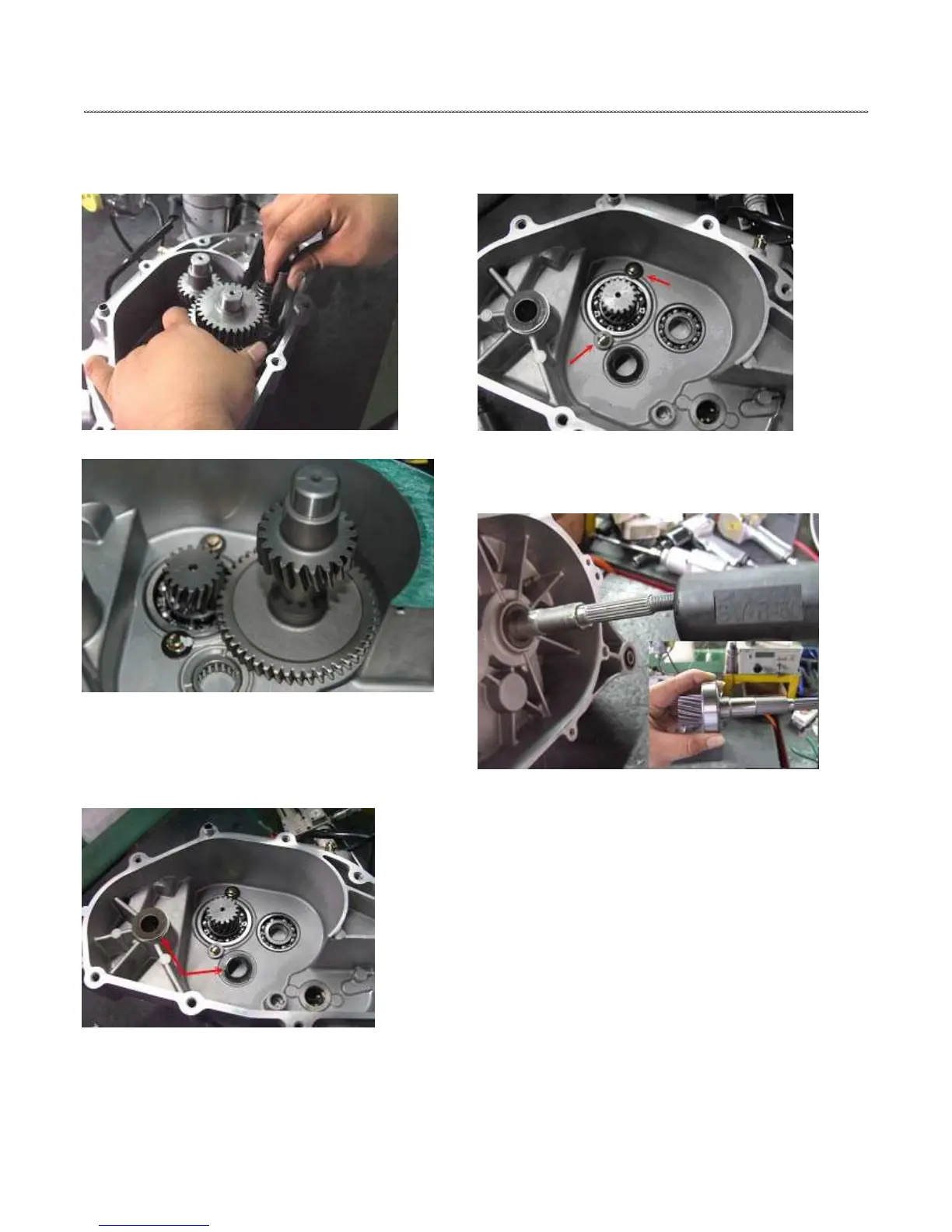

6. Remove the counter shaft.
8. Remove above two bolts.
9. Remove input shaft from CVT side by plastic hammer until
loose.
Note: Do not lose those two washers.
TRANSMISSION INSPECTION
NOTE: Always wear the appropriate protective gear and
use caution when operating a press.
DRIVE SHAFT REMOVAL AND INSPECTION
1. With transmission components removed, inspect all shaft
bearings visually and by feel. Bearings should roll smoothly,
without excessive movement or noise. Replace any bearing that is
removed, as the removal process destroys the bearing.
2. Bearings can be removed using a standard blind bearing
remover. Apply lithium grease to outer race of new bearings and
press into cover or case by the outer race. Do not press on inner
race or bearing will be damaged.
