ENGINE
4-32

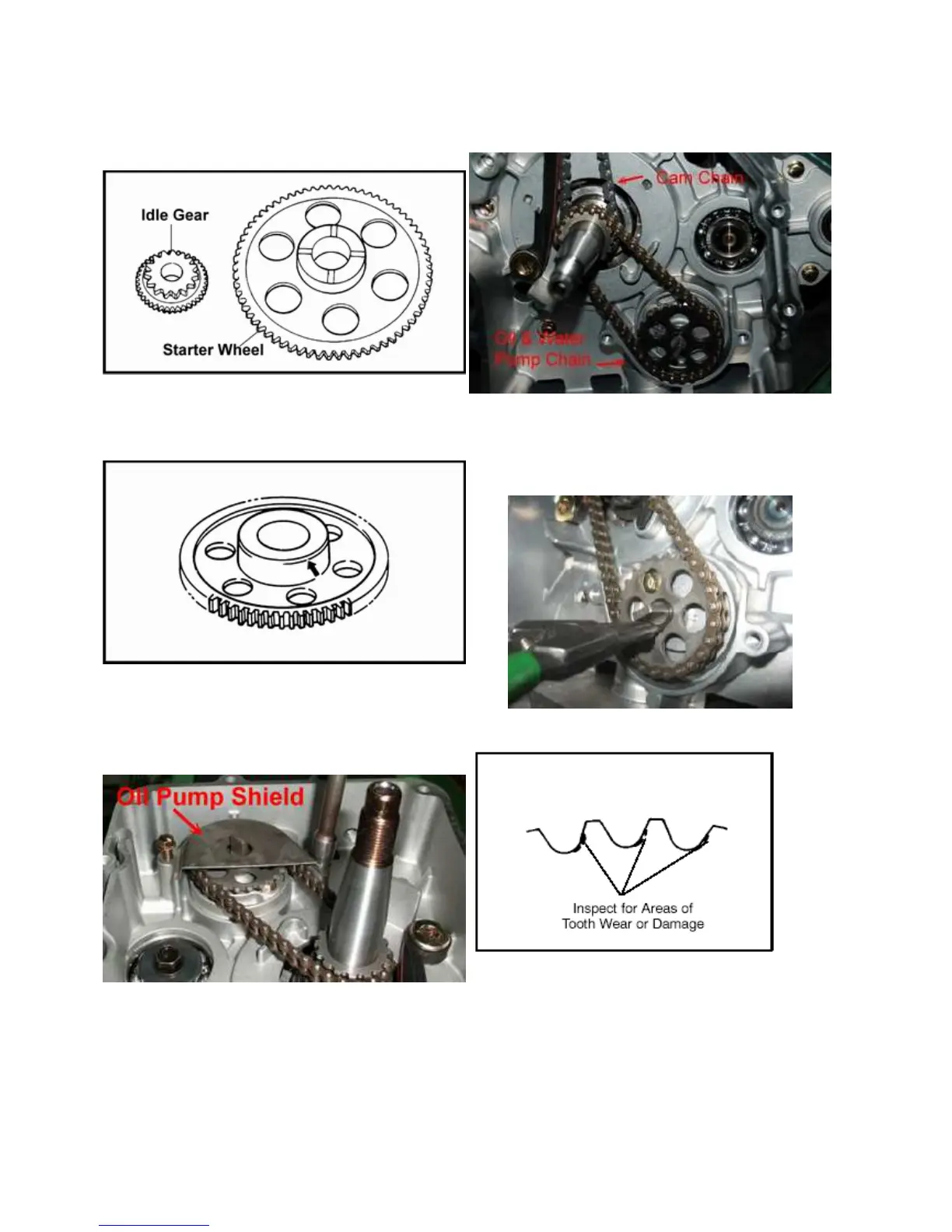

7. Inspect idle gear and starter wheel teeth. Replace it if has
any burrs, clips, roughness or worn.
8. Inspect the
starter wheel contact surface. Replace it if has
too much worn, pitting or damaged.
OIL PUMP DRIVE SPROCKET REMOVAL /
INSPECTION
1. Remove the oil pump shield.
2. The outer chain is oil and water pump drive chain.
The inner chain is cam chain.
3. Remove pump chain drive sprocket circlip and chain from
pump drive shaft and crankshaft.
4. Inspect sprocket teeth for wear or damage.
5. Replace any worn or damaged parts.
