MAINTENANCE
2-10

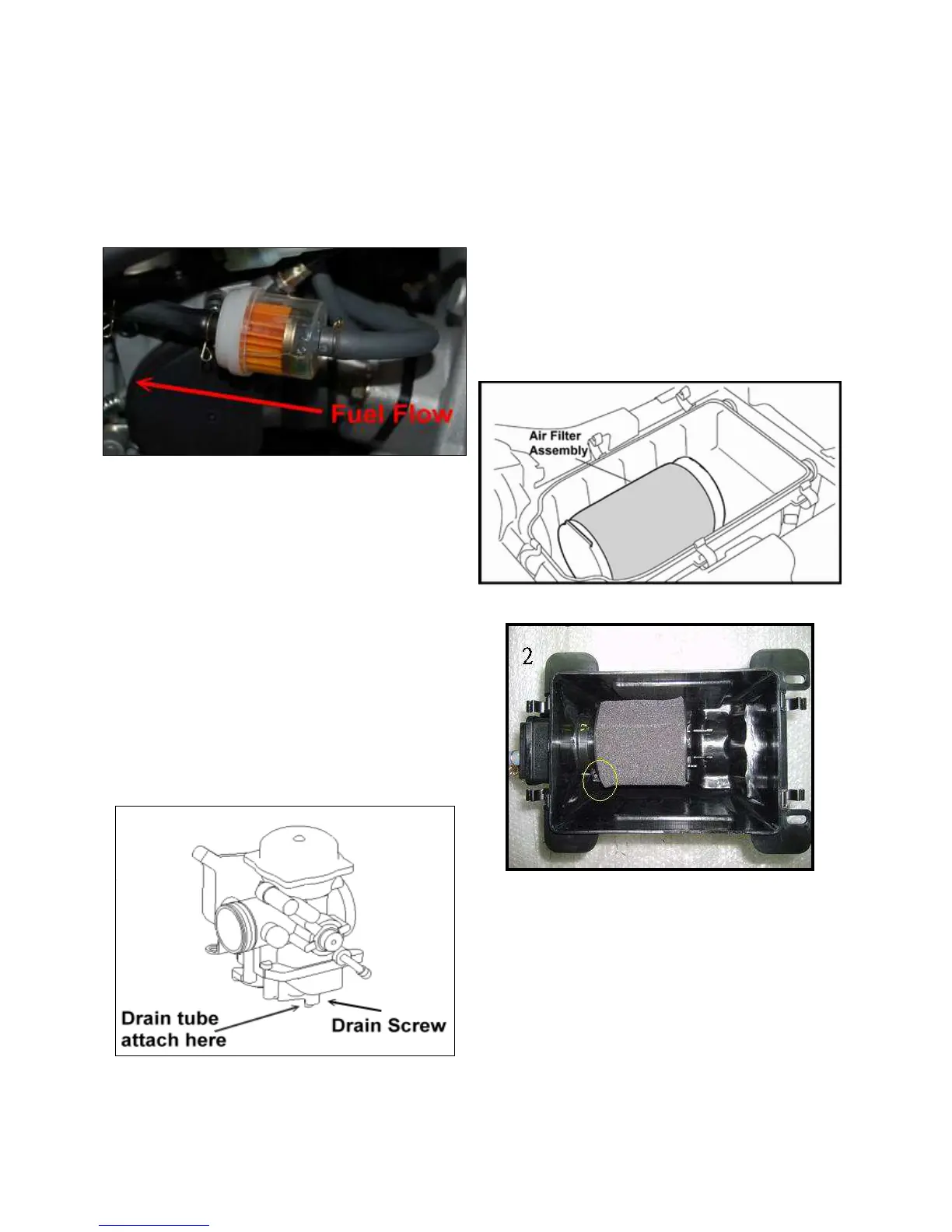

FUEL FILTER
The fuel filter should be replaced in accordance with the
“Periodic Maintenance Chart” or whenever sediment is
visible in the filter.
Fuel Filter Location - Located in-line between fuel
tank and fuel pump under seat.
Fuel Filter Service
1. Shut off fuel supply at fuel tank and fuel pump.
2.Remove line clamps at both ends of the filter.
3. Replace new filter and clamps onto fuel lines.
4. Release both side fuel lines.
5. Start engine and inspect for leaks.
CARBURETOR DRAINING
The carburetor float bowl should be drained periodically to
remove accumulated moisture or sediment from the bowl, or
before extended periods of storage.
1. Place a container beneath the bowl drain hose.
2. Loosen drain screw and allow fuel in the float bowl and
fuel line to drain completely.
3. Inspect the drained fuel for water or sediment.
4. Tighten drain screw.
5. Check for fuel leaks.
6. Start engine and re–check for leaks.
AIR CLEANER SERVICE
It is recommended that the air filter be inspected as part of
pre-ride inspection. In extremely dusty conditions, air filter
replacement will be required more often.
The filter should be inspected using the following procedure.
Remove
1. The air cleaner is located under the dump box.
2. Release the air box cover spring clips and remove the cover.
3. Remove the foam air filter. Wash the foam filter in warm
soapy water, then rinse and let it dry. If the filter is damaged,
install a new foam filter.
