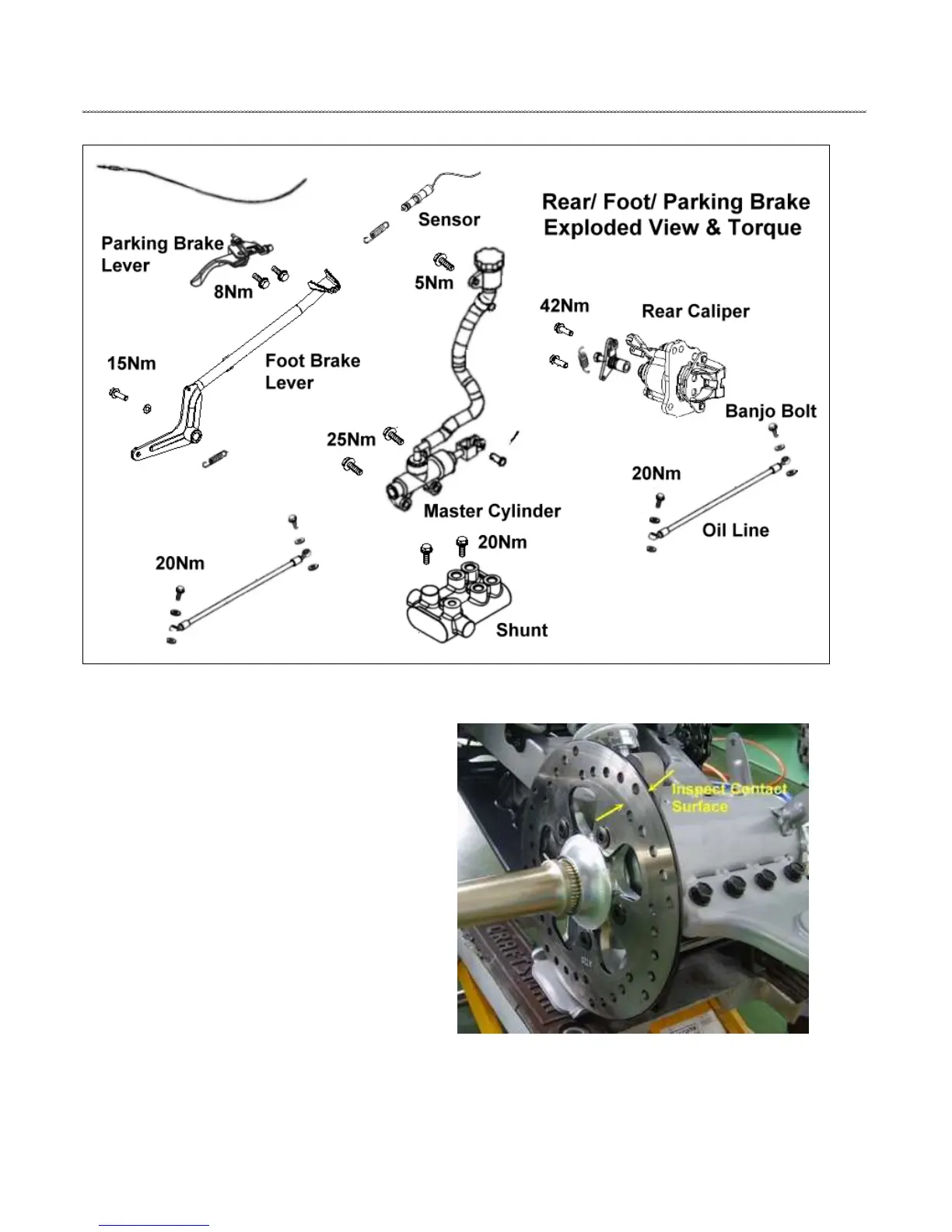

NOTE: Follow the “Swing Arm Removal” procedure
outlined in Chapter 6 to access the rear brake
components.
1. Follow the “Swing Arm Removal” procedure to the point
where the rear brake disc housing can be accessed on
“Chapter 7”.
NOTE: You do not need to fully disassemble the rear
axle / swing arm to service the rear brakes.
2. Inspect the brake pads contact disc surface and the axle
housing seal surface for excessive wear, pitting, or damage.
Replace if necessary.
3. Remove the brake pads from the rear caliper assembly.
Follow “Front pads remove” procedure on page 8.11.
