FUEL AND CARBURETOR
6-16

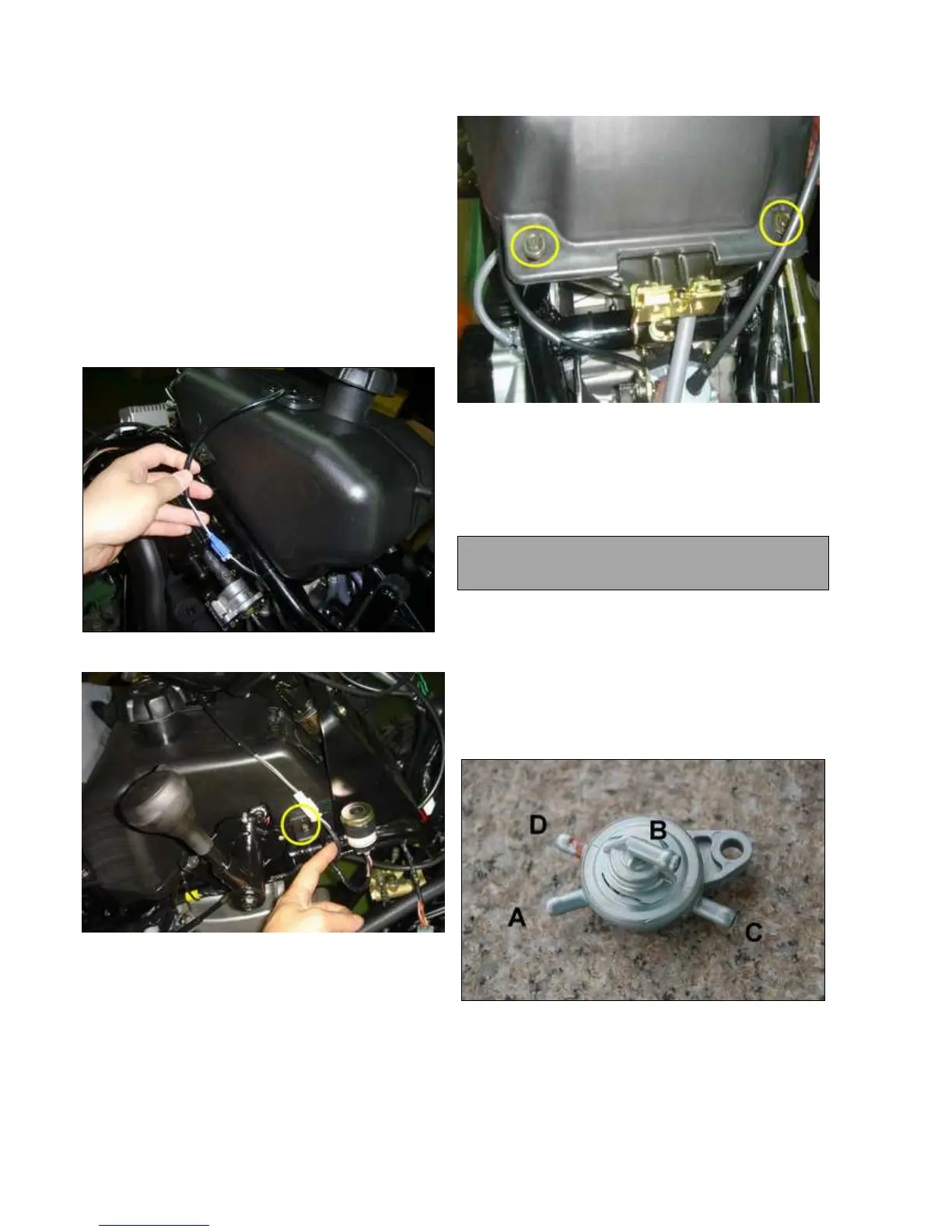

FUEL TANK REMOVAL
1. Refer chapter 7 to remove front of cab and plastic plate.
2. Place a shop rag or towel underneath the tank and remove
fuel line, fuel valve and filter from the tank.
3. Completely drain fuel from fuel tank.
4. Squeeze the connector tabs together and pushes the locking
slide back.
5. Disconnect fuel discharge hose from fuel tank.
6. Disconnect fuel gauge wire from main harness.
7. Remove both side of fasten bolts on frame as shows.
8. Remove 2 of rear fastener bolts on frame.
9. Carefully lift up on the fuel tank.
7. Disconnect the fuel tube from tank.
8. To reinstall the tank, reverse the removal procedure. Be sure
to torque the tank mounting bolts.
Fuel Tank Mounting Bolt Torque
8 Nm (72 in. lbs.)
FUEL FLOW DIRECTION
A. From fuel tank to fuel pump.
B. Suction from manifold.
C. Pressing fuel to carburetor.
D. Vent
