ELECTRICAL
9-11

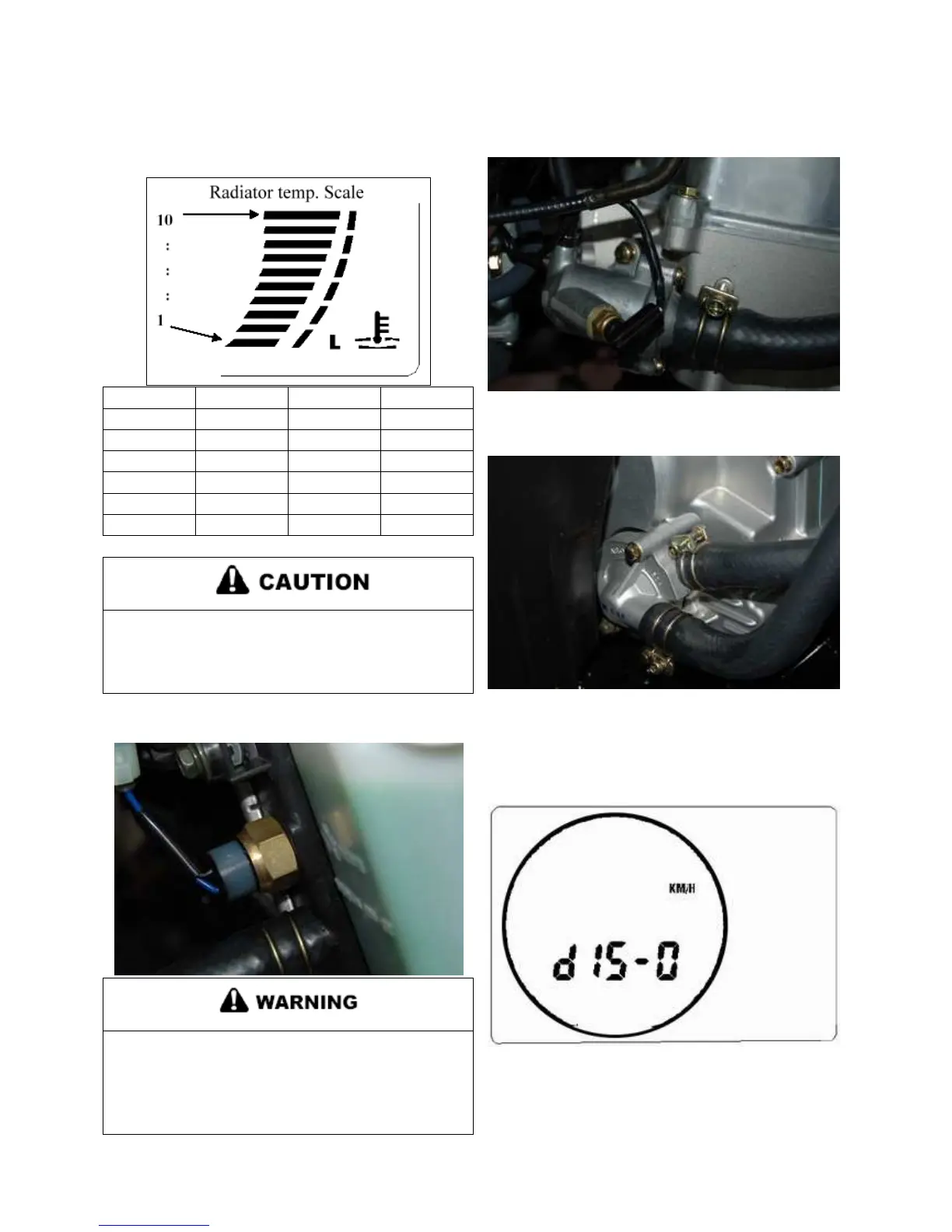

RADIATOR TEMPERATURE SCALE:
There are
10 scales; the fan will start at 7
th
scale (80). The temperature
table list as following.
Scale Range Scale Range
10 Over 105
℃
4 49~58
℃
9 101~104
℃
3 39~48
℃
8 89~100
℃
2 29~38
℃
7 79~88
℃
1 19~28
℃
6 69~78
℃
0 Less 19
℃
5 56~68
℃
The fan will start at scale 7
th
or 8
th
.
When full scale, stop vehicle immediately, inspects
radiator water, thermostatic, bimetal
pump.
The thermostatic sensor locates at right hand of the radiator.
If the sensor is faulty, replace the entire assembly.
Don’t open the radiator cap or remove
bimetal valve and water pump when engine is still
The Bimetal valve locates at right hand of cylinder.
If the valve is faulty, replace the entire assembly.
The water pump locates at right hand of crank cover.
The Remove and reinstall procedure referent as chapter 4.
TIRE/WHEEL DIAMETER SETTING:
1. Turn the key switch “off”. Press both “mode” and “zero”
button then turn “on” the key switch.
2. Press left button to select tire diameter as show twinkle.
