Aeon COBRA 400 2012 User Manual

BODY / SUSPENSION / STEERING
7-7

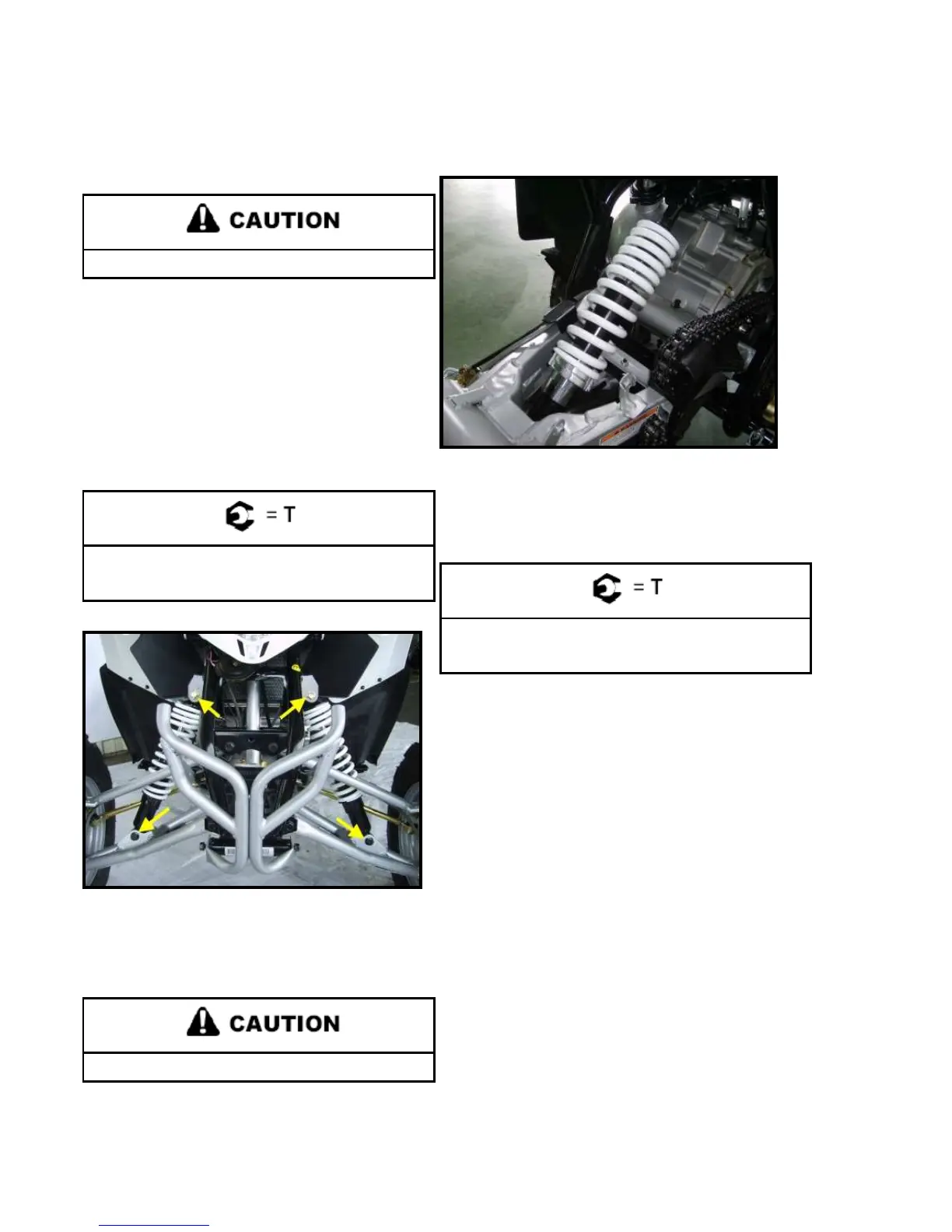

FRONT SHOCK REMOVAL
1. Elevate front end of the ATV off the ground to remove
shock spring tension.
Severe injury could occur if machine tips or falls.
2. Remove the upper shock mounting bolts from the frame
and the lower shock mounting bolts from the front
suspension arm / A-arm.
3. Replace the shock or spring as required.
4. Install shock as shown above Exploded Figure.
5. Torque shock-mounting-bolts to specification.
Front Shock Mounting Bolt Torque:
44 Nm (32 ft. lbs.)
REAR SHOCK REMOVAL
1. Elevate rear end of the ATV off the ground to remove
shock spring tension.
Severe injury could occur if machine tips or falls.
2. Remove the upper shock-mounting bolt from the frame and the
lower shock-mounting bolt from the swing arm.
3. Replace the shock, spring or adjuster cam as required
4. Install the shock as shown above Exploded Figure.
5. Torque shock-mounting-bolts to specification.
Rear Shock Mounting Bolt Torque:
50 Nm (37 ft. lbs.)
