MAINTENANCE
2-15
TRANSMISSION
TRANSMISSION LUBRICATION
The transmission lubricant level should be checked and
changed in accordance with the maintenance schedule.
Remember to:
• Verify the vehicle is level before proceeding.
• Verify the vent hose is routed properly and is not
obstructed.
• Follow instructions to check / change transmission fluid.

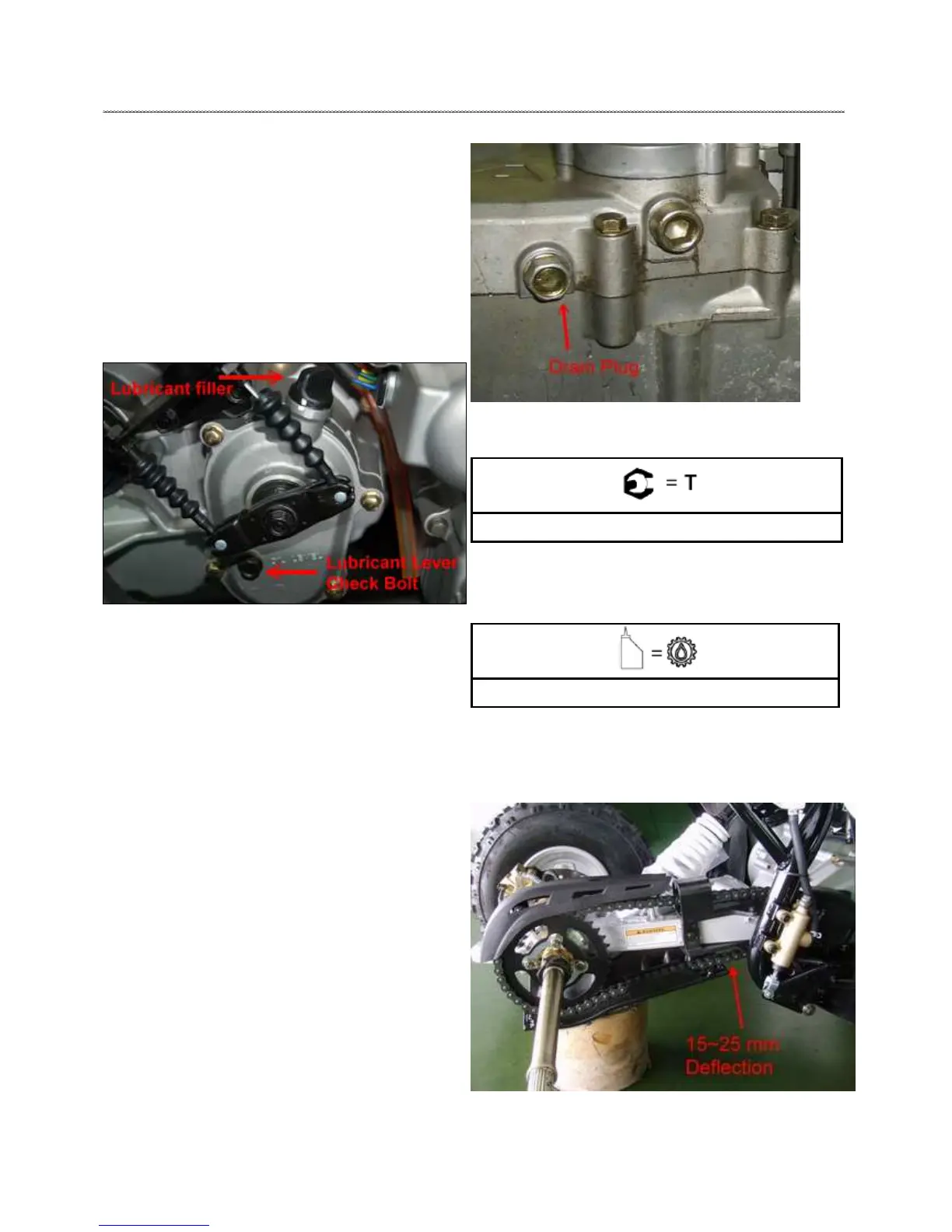

Transmission Lubricant Level
The gear
case fill plug is located on the side of the gear case
on the right side of the vehicle.
Maintain the lubricant level at
the oil lever bolt be checked monthly and changed annually.
1. Position the vehicle on a level surface.
2. Remove the fill plug and lever check bolt.
3. View the lubricant level through the lever check hole.
4. If the level is low, add the recommended lubricant.
5. Reinstall the fill plug and oil lever bolt.
Transmission Lubricant Change
1. Position the vehicle on a level surface.
2. Remove the fill plug.
3. Place a drain pan beneath the axle gear case drain.
4. Remove the drain bolt and allow the lubricant to drain
completely.
5. Clean and reinstall the drain plug. Torque to 19 Nm
(14 ft. lbs.).
Transmission Drain Plug: 19 Nm (14 ft. lbs.)
6. Add the recommended lubricant. Maintain the lubricant level
at the bottom of the fill plughole threads.
7. Reinstall the fill plug. Check for leaks.
DRIVE CHAIN INSPECTION
1. Check the amount of chain slack by moving the vehicle
slightly forward to gain deflection at the top of the chain.
Transmission Lubricant Capacity: 1200 ml (40 oz.)
