CVT SYSTEM
3-6

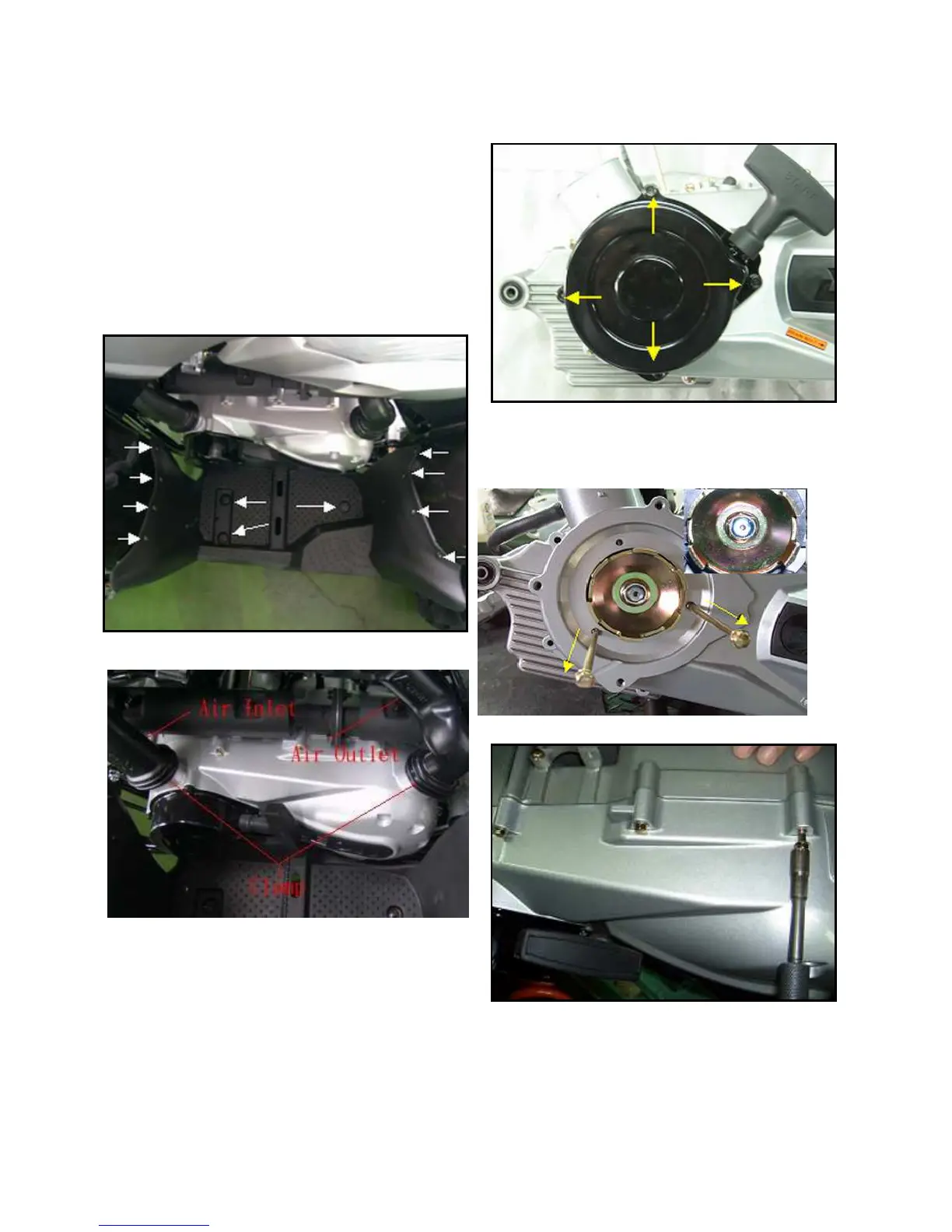

DRIVE CLUTCH REMOVAL
Some fasteners and procedures will vary. Refer to the
appropriate parts manual for proper fasteners and fastener
placement.
1. Position the vehicle on a level surface. Use the parking
brake.
2. Remove seat, storage box and LH plastic panel to gain
access to the outer clutch cover.
3. Remove the inlet dust screw and inlet duct.
4. Remove all screws and cover with re-coil start attached.
5. Remove the entire re-coil starter bolt.
6. Remove the lock nut, washer, and the re-coil start
