5

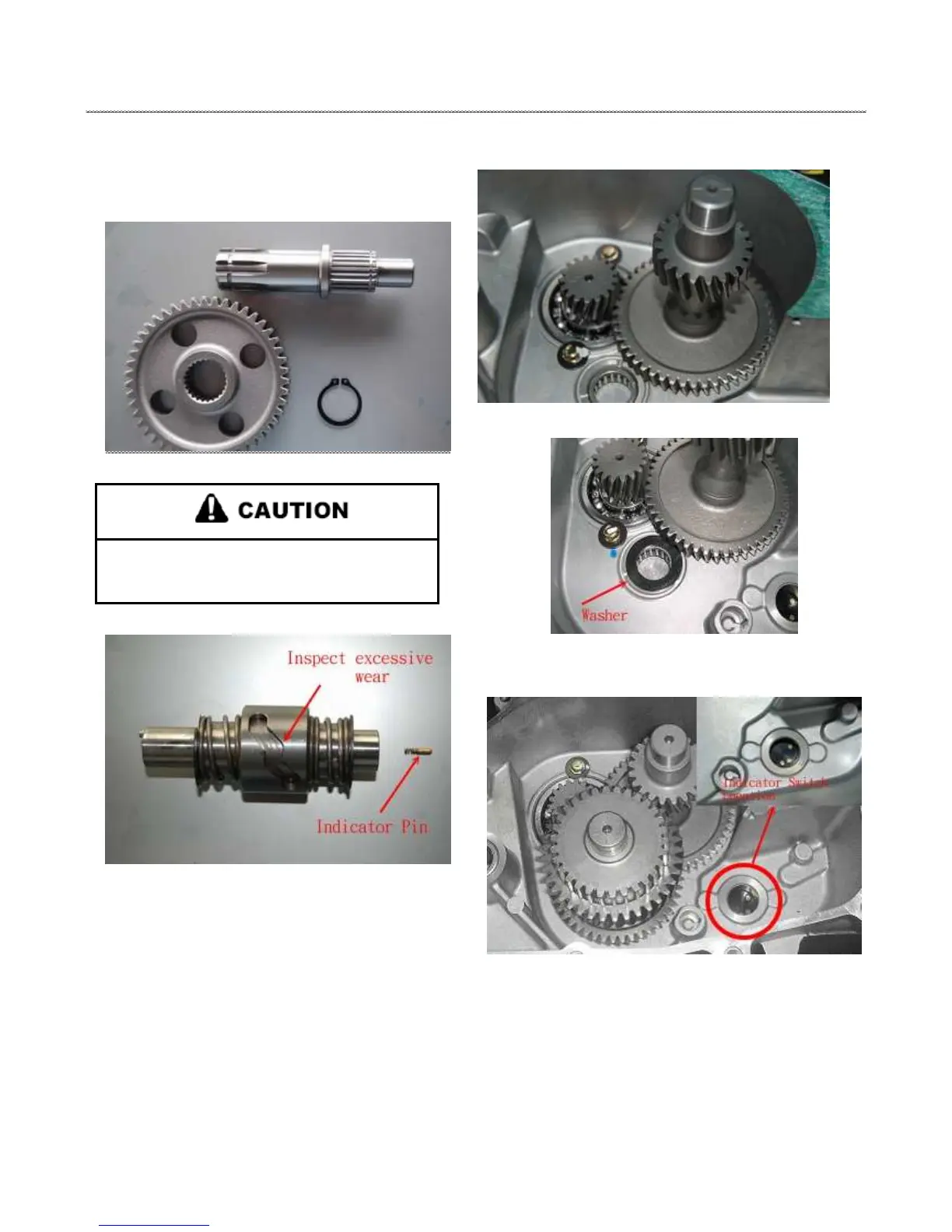

TRANSMISSION REASSEMBLY
2. Remove the gear ring from output shaft.
3. Inspect the shaft and shaft excessive wear or crack.
4. Assemble the output gear and a new snap ring on the shaft.
1. Place the counter shaft into case.
2. Place main shaft washer on bearing housing.
3. Place main shaft into case. Ensure the forward gear toward
inside.
SHIFT DRUM REMOVAL AND INSPECTION
Spring pressure can cause components to eject
suddenly. Use care during removal.
the appropriate protective gear
Remove shift sensor from drum shaft.
NOTE: Drum shaft components are not serviceable.
Replace Drum shaft as an assembly.
TRANSMISSION REASSEMBLY
NOTE: Lubricate all bearings with clean trans
before assembly.
Clean the gasket surfaces on the crankcase and transmission cover
Remove all traces of old gasket material and apply a new base
gasket
