ENGINE
4-37

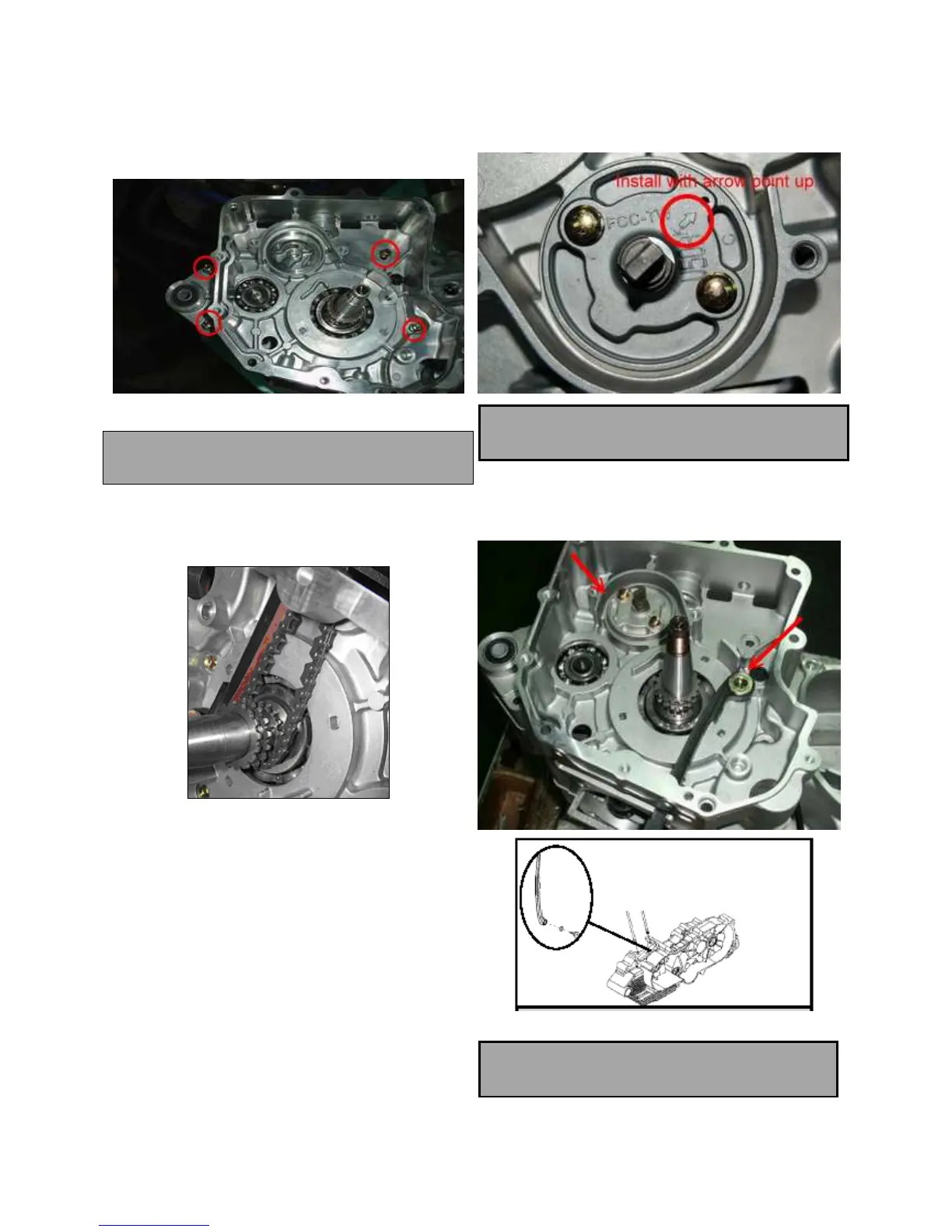

5. Install 4 flange bolts (circled) from the right side crankcase.
NOTE: Use care not to damage the crankshaft end.
CRANKCASE BOLT TORQUE:
20 Nm (15ft. lbs)
6. Loop the cam chain through the chain room and
mechanic’s wire.
OIL PUMP AND CHAIN INSTALLATION
NOTE: Oil pump is not a service-able assembly. Do
not disassemble pump. Replace entire component.
1. Inspect the oil pump sealing surface on the
a liberal amount of engine oil to the surfaces and pump.
2. Install oil pump as shown. Torque screws to
torque.
3. Beware the oil pump cover arrow must align with point.
OIL PUMP COVER SCREW TORQUE:
8 Nm
4. Install the tensioner blade and tighten the
specified torque.
TENSIONER BLADE MOUNTING BOLT TORQUE:
10 Nm (7.4 ft. lbs.)
