BODY / SUSPENSION / STEERING
7-5

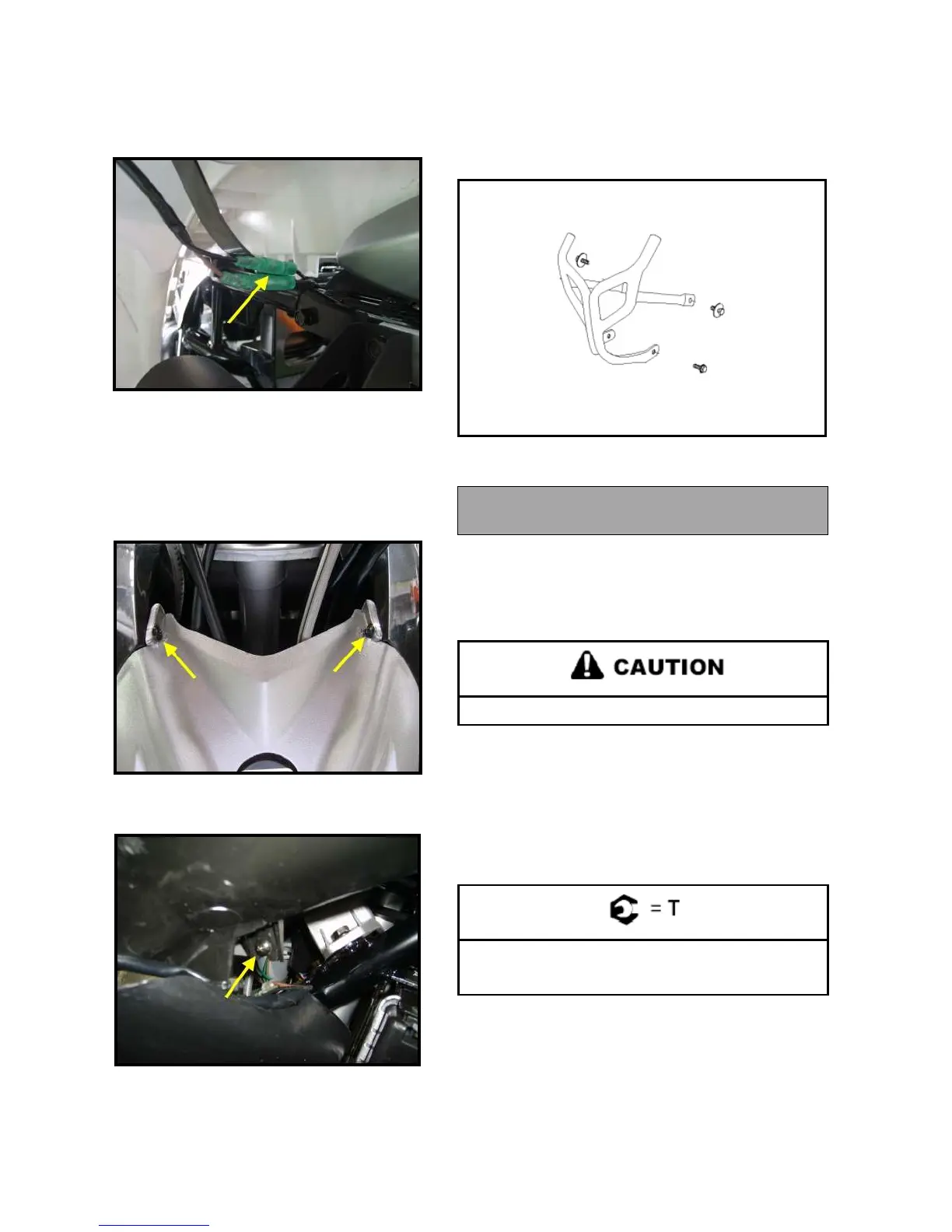

5. Cut off the straps of rear indicators then disconnects
indicator plugs with main harness.
6.Remove Rear cab from cab.
FRONT BUMPER REMOVAL/ INSTALLATION
1. Remove the (4) mounting bolts retaining the front bumper
and remove the bumper from the ATV.
HEADLIGHT HOUSING REMOVAL
1.The front cab removal procedure same as Cobra 320 except
headlight housing.
2. Remove the 2 upper bolts attaching on front cab.
2. Reverse the previous procedure to reinstall the bumper.
3. Torque mounting bolts to 87 in. lbs. (9.8 Nm).
Front Bumper Mount Bolt Torque
10 Nm (90 in. lbs.)
FRONT SHOCK REMOVAL
1. Elevate front end of the ATV off the ground to remove
shock spring tension.
Severe injury could occur if machine tips or falls.
2. Remove the upper shock mounting bolts from the frame and
the lower shock mounting bolts from the front suspension arm
/ A-arm.
3. Remove the 2 bottom bolts attaching under front cab.
4. Completely remove the headlight housing from cab.
3. Replace the shock or spring as required.
4. Install shock as shown above Exploded Figure.
5. Torque shock-mounting-bolts to specification.
Front Shock Mounting Bolt Torque:
44 Nm (32 ft. lbs.)
