BRAKES
8-17

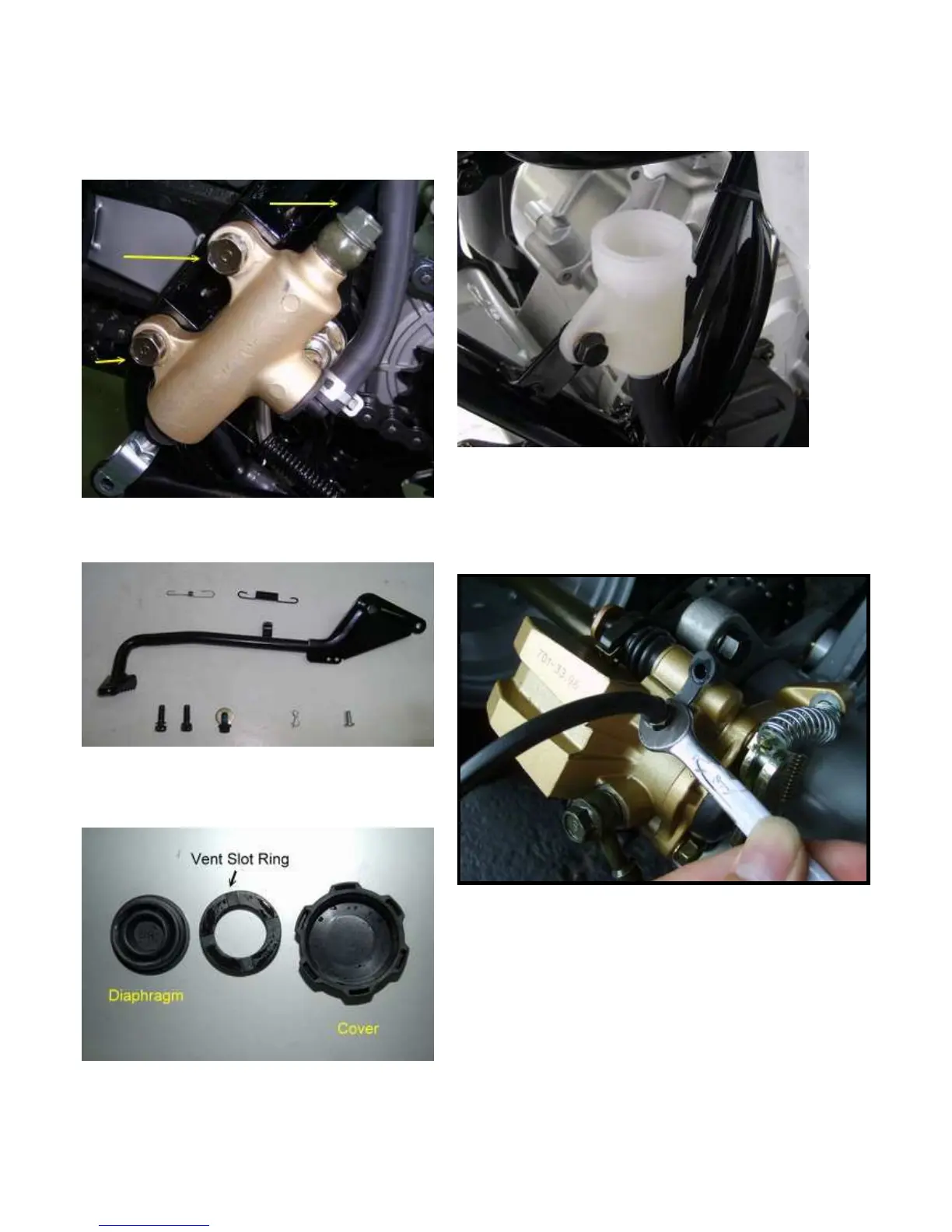

5. Remove 2 master cylinder bolts, banjo bolt and oil tank bolt.
Remove master cylinder and oil tank as an assembly.
6. Remove foot brake lever and other components, arrange
them order.
FOOT BRAKE FLUID FILLING / BLEEDING
1. Remove cover, and diaphragm from reservoir.
2. Add brake fluid to the upper level mark on reservoir.
NOTE: Do not move foot brake lever when reservoir fluid
level is low.
3. Begin bleeding procedure with the caliper that is farthest from the
master cylinder. Install a wrench on the top caliper bleeder screw.
4. Attach a clean, clear hose to fitting and place the other end in a
clean container. Be sure the hose fits tightly on fitting.
5. Slowly pump foot brake lever until pressure builds and holds.
6. While maintaining lever pressure, open bleeder screw. Close
bleeder screw and release brake lever.
NOTE: Do not release lever before bleeder screw is tight or
air may be drawn into caliper.
.
