ENGINE
4-42

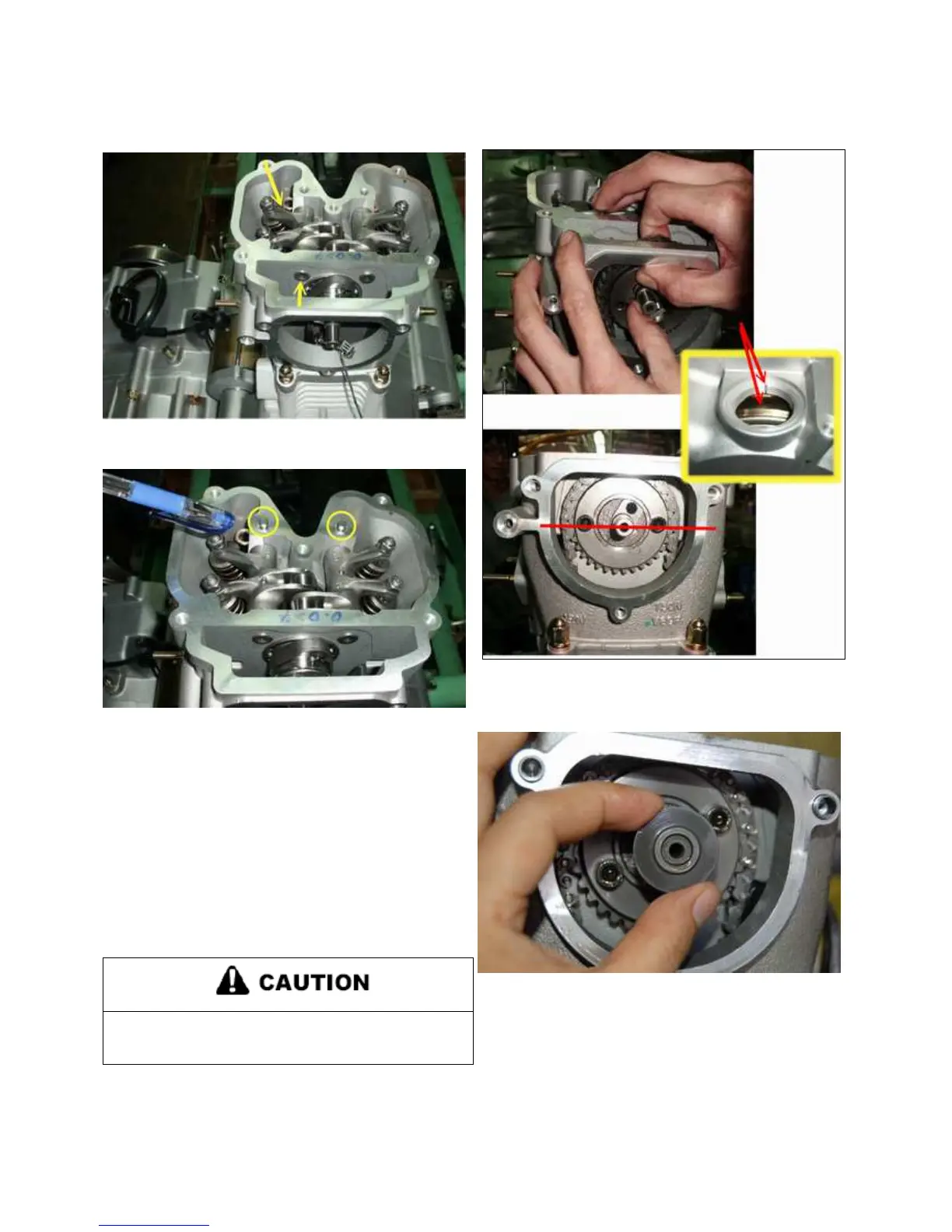

8. Install intake side rocker shaft and rocker arm.
9. Install 2 dowel pins onto cylinder head.
10. Ensure the piston locate At TDC (top die center).
11. Pull cam chain fully up then install cam sprocket
camshaft.
12. Ensure cam sprockets 2 fasten holes, which
13. Ensure flywheel mark align with right crank cover mark
line.
14. Tight cam sprocket fastens bolt.
Serious engine damage may result if the camsha
not properly timed to the crankshaft.
15. Install decompressor into camshaft.
16. Apply clean engine oil liberally to the valve springs, cam
chain, rocker arms, and camshaft.
17. Adjust valves according to the “VALVE
CLEARANCE ADJUSTMENT PROCEDURES”, Page4.39.
