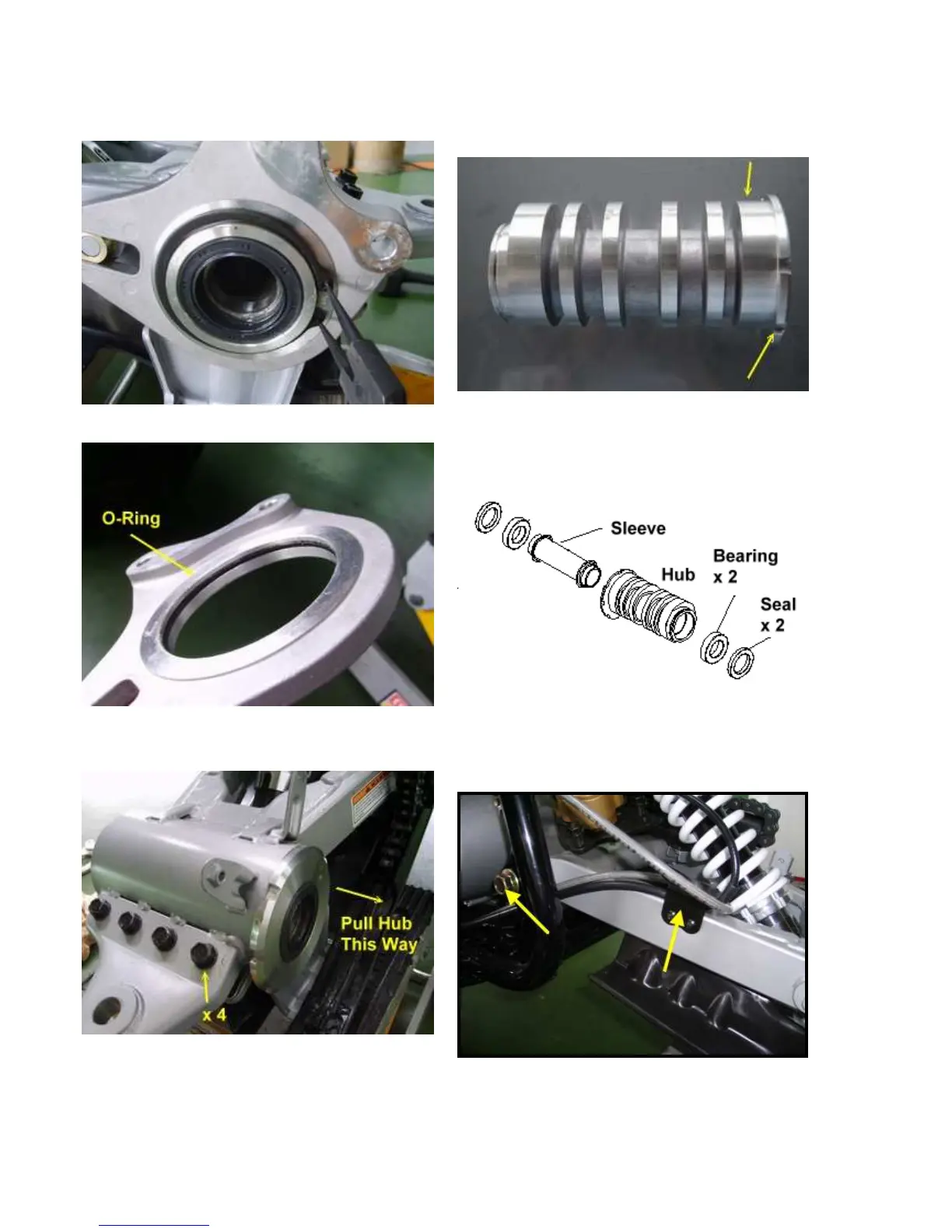

10. Remove external cir-clip and brake caliper mount.
13. Inspect adjusting tooth and cam surface for wear, replace
the hub if the component fail inspection.
14. Inspect the axle hub main bearings for worn or damaged.
The bearing must be inspected visually and by turning feel.
The bearing should turn smoothly and quietly.
11. There is an o-ring in caliper mount.
12. Loosen 4 bolts then remove axle hub toward right hand
away.
15. Remove the rear shock upper blot.
16. Remove brake tube clamp.
17. Remove swing arm shaft then swing arm.
