ATTENTION: Attempting to position the Applicator Wheels, Film Drive
Wheels, or Support Wheels when they are locked can damage the LX-
150 and void the warranty.
Unlock the Film Drive Wheels and move them outward, away from the Mandrel path
(page
112).
Unlock the Upper and Lower Support Wheels and move them outward, away from
the Mandrel path (page
113).
Holding the Mandrel vertically with the Mandrel Fin Slot toward the rear of the LX-
150, carefully pass the Mandrel down through the Wheel Assemblies and Cutter
Assembly. When the Mandrel is in the correct position:
a. The Print Reading Sensor should align with the slot in the Mandrel Fin. The
position of the Print-Reading Sensor can be adjusted later if needed..
b. The Film Drive Wheels should align with the Film Drive Bearings on the sides of
the Mandrel.
c. The Support Wheels should align with the Support Bearings on the front and
back of the Mandrel.
d. The Applicator Wheels should align with the Applicator Bearings on the sides of
the Mandrel.
Setting the Mandrel in Place

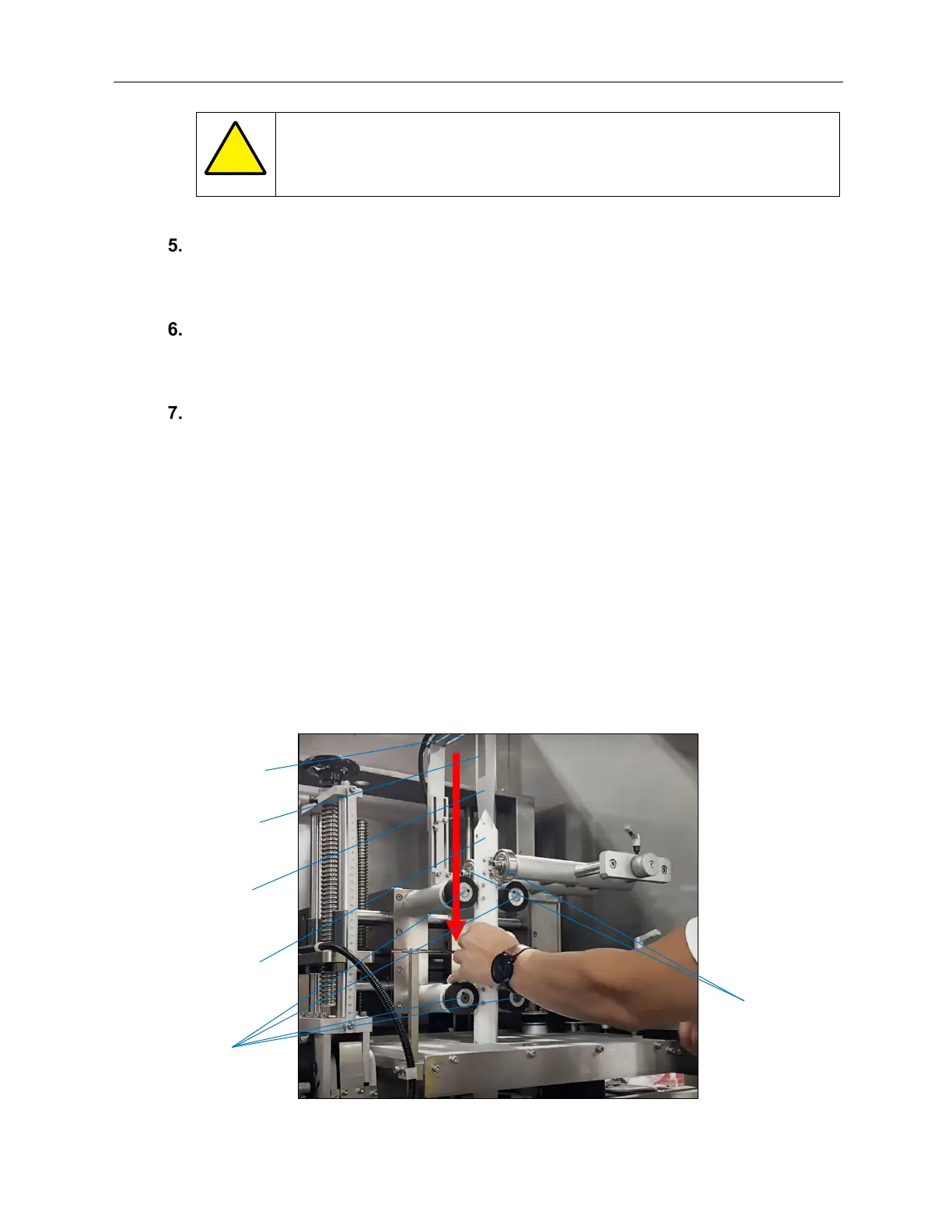

AFM-4510001-00156-01
Mandrel
Fin Slot
Print
Reading
Sensor
Film Drive
Wheels
Mandrel
Mandrel
Fin
Support
Wheels
To Next Page
