58 Installation
4510001 REV B – 220620
Still holding the Mandrel, move the Upper Support Wheels in toward it until they
support it, and then lock them in position (page
113).
Move the Lower Support Wheels in toward the Mandrel until they touch the Support
Bearings loosely enough to be rotated, but not so loosely that they spin, and the lock
the Lower Support Wheels in position (page
113).
ATTENTION: The Support Wheels must support the full weight of the
Mandrel. They are the primary thing keeping the Mandrel from falling.
Move the Film Drive Wheels in toward the Mandrel until they touch the Film Drive
Bearings on the Mandrel, and then lock them in position (page
112).
ATTENTION: The Film Drive Wheels should be tight enough to
consistently advance the label film. Tightening them too much can
damage the film and potentially pull the Mandrel out of the Support
Wheels’ hold. This can damage the Mandrel, the Cutter Assembly, and
the LX-150, and void the warranty.
If needed, move the Applicator Wheels vertically until they align with the Applicator
Bearings on the Mandrel (page
115).
Move the Applicator Wheels in toward the Mandrel until they lightly touch the Film
Drive Bearings on the Mandrel, and then lock them in position (page
115).

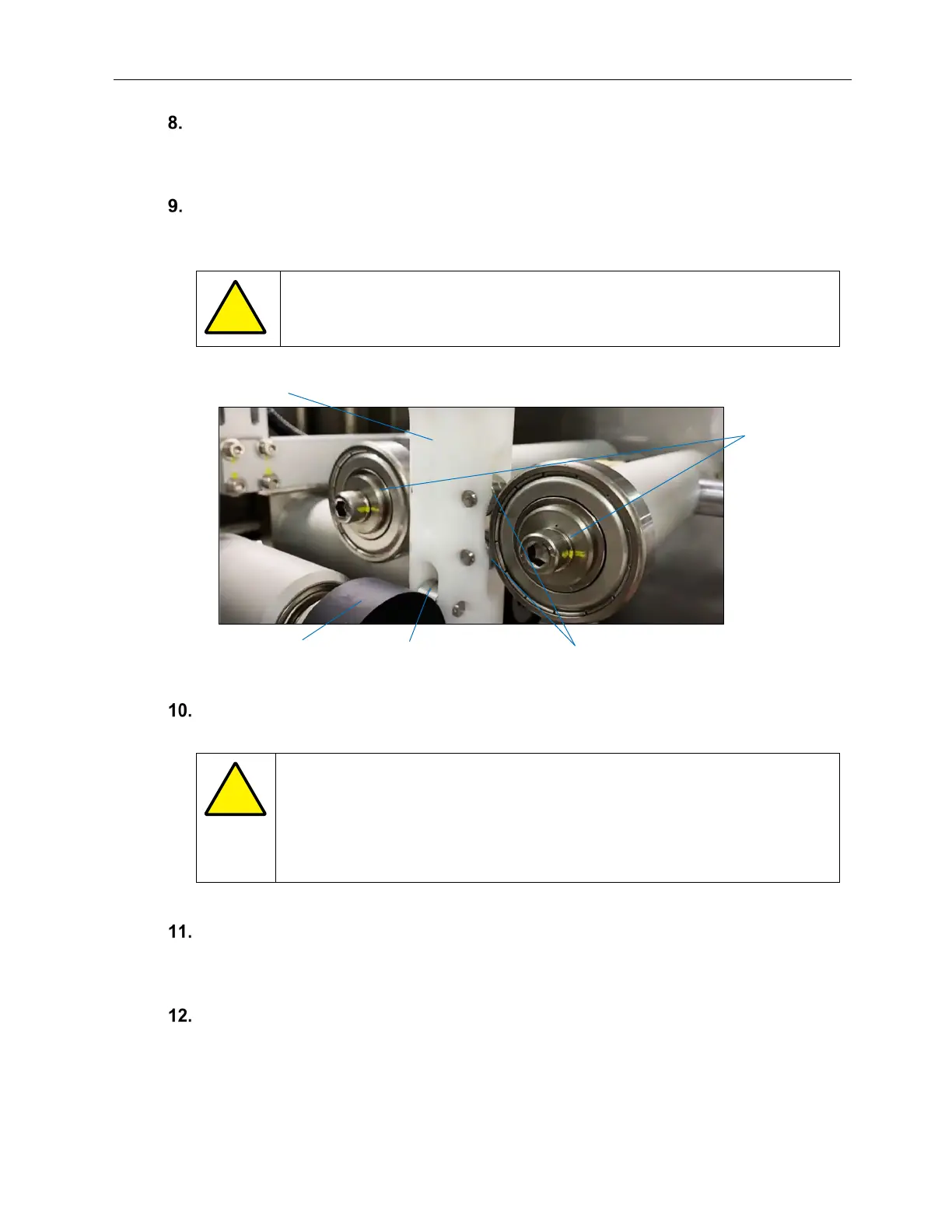

Wheels Lightly Touching the Mandrel
AFM-4510001-00154-01
Mandrel
Upper
Support
Wheels
Film Drive
Wheels
Film Drive
Bearings
Support
Bearings
To Next Page
