c. Gently pushing the bottle against the Screw, turn the Crank on the side of the
Timing Screw to move the Screw towards or away from the centerline of the
Conveyor until the laser beam is pointing at the center axis of the bottle. As
shown below.
Plug the Cable from the Timing Screw into the Power Box.
Attach the Junction Box to the Conveyor.

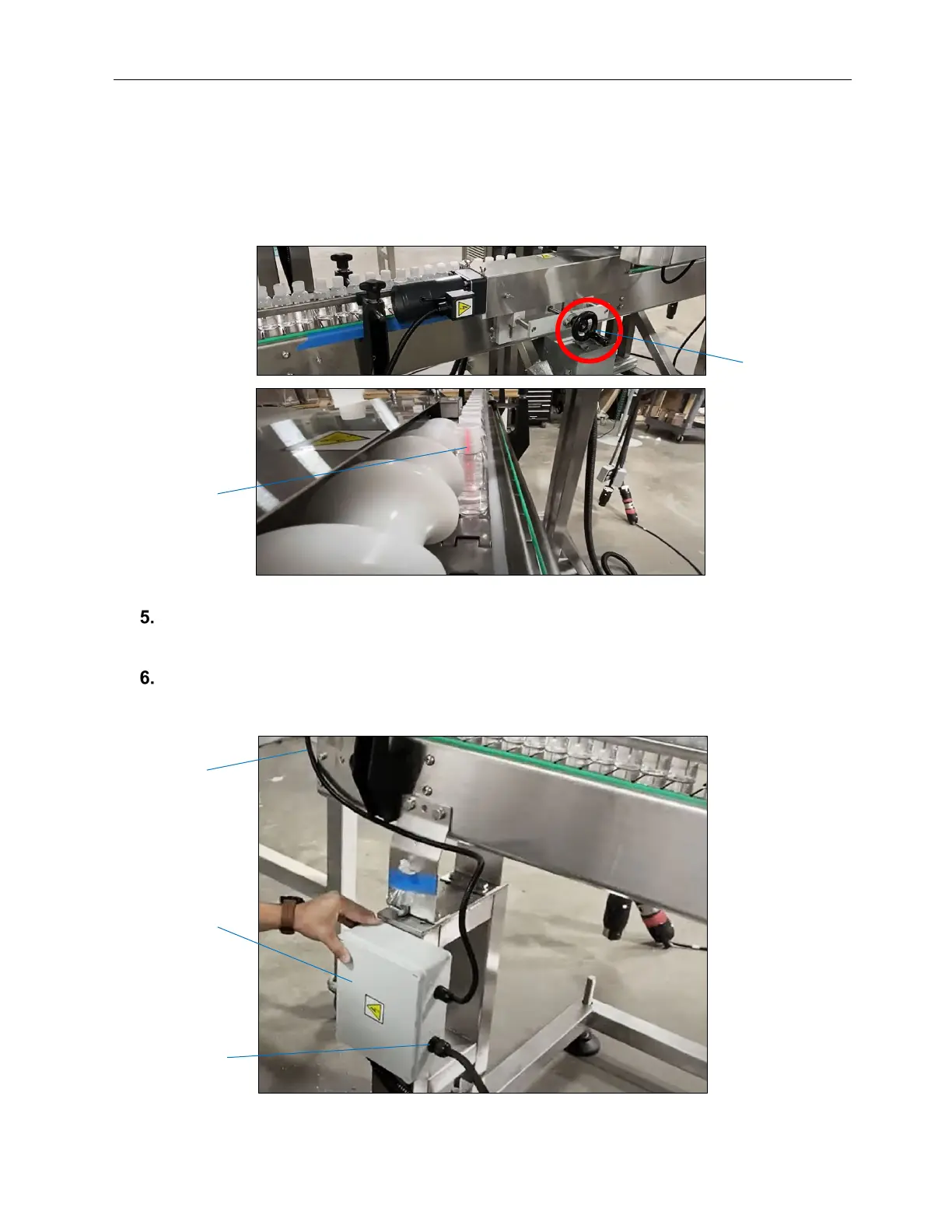

Plugging in the Timing Screw Assembly
Crank
AFM-4510001-00172-01
Laser on
Center Axis
of Bottle
Plugging in the Timing Screw Assembly
AFM-4510001-00178-01
Junction
Box
Cable
Timing Screw
Power Cable
To Next Page
