PLC I/O Monitor Screen
Accessed from the PLC Output 2 Screen.
The PLC I/O Monitor Screen is a summary of the four previous Screens, enabling the
user to view all the info in one place.

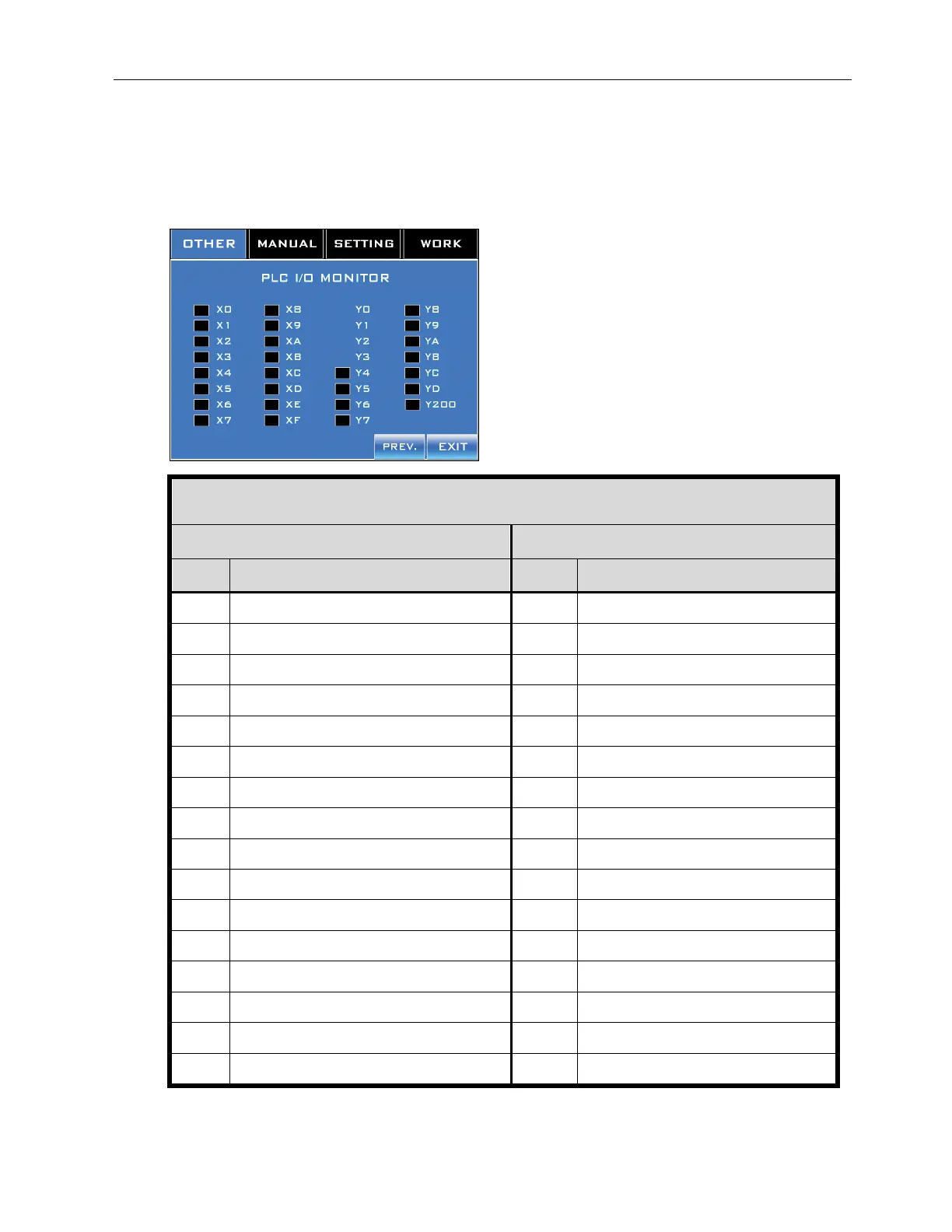

PLC I/O Monitor Screen
Inputs Outputs
Code Component Code Component
X0 Knife Home Position Proximity Y0 Cutter “Pulse-”
X1 Print Function Use (HSC) Y1 Cutter “Dir-”
X2 Print Function Use (Stop Feed) Y2 Feed “Pulse-”
X3 Print Registration Y3 Feed “Dir-”
X4 (N/A) Y4 Working (RY1)
X5 Label Application Sensor Y5 Buzzer (RY2)
X6 (N/A) Y6 Print Function Use (Stop Feed)
X7 (N/A) Y7 Brush
X8 Emergency Stop Y8 Tower Light – Yellow (RY4)
X9 Film Accumulator Ready Det. Y9 Film Supply Motor (RY5)
XA Application Fail YA Timing Screw Motor (RY6)
XB Start Button YB Tower Light – Green (RY7)
XC Stop Button YC H-Perf Trigger
XD Safety Door YD Printer Trigger
XE (N/A) Y200 Aux Belt
XF Timing Screw Sensor
To Next Page
