176 Agilent 1200 Infinity Series DAD User Manual
9 Maintenance
Replacing the Max-Light Cartridge Cell
9

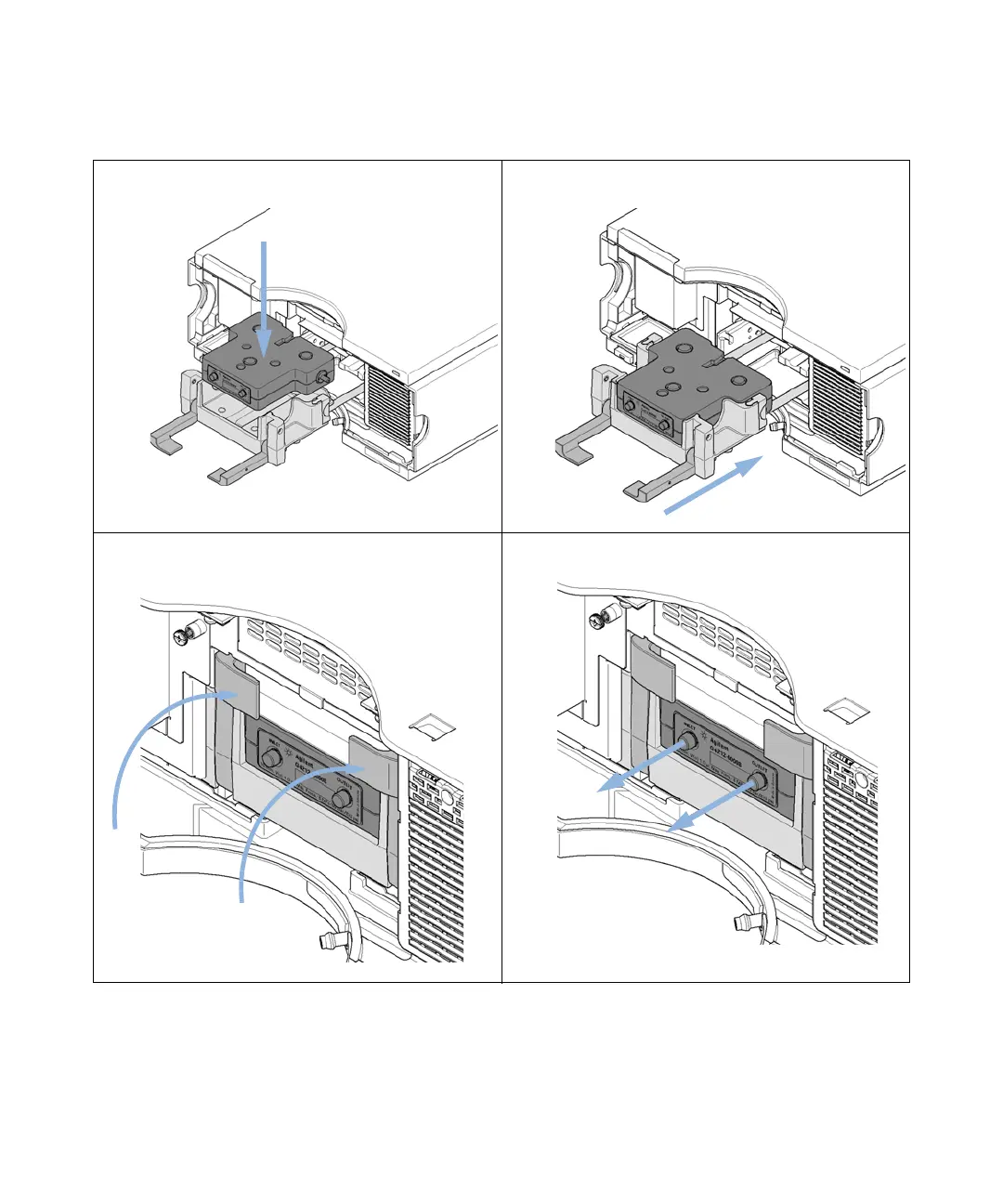

Remove the black hoods from the cell interfaces (in/out)
and insert the cell into the cell cartridge holder.
10 Slide the cell cartridge holder completely into the
module.
11 Lift the two levers into the upper final position to fix the
cell.
12 Remove the plugs from the CELL-IN and CELL-OUT (keep
them safe).
