42 Agilent 1200 Infinity Series DAD User Manual
3 Installing the Module
Installing the Detector
1 Note the MAC address of the LAN interface (rear of the module, under the
configuration switch, see Figure 56 on page 224). It’s required for LAN
Configuration (see Chapter "LAN Configuration").

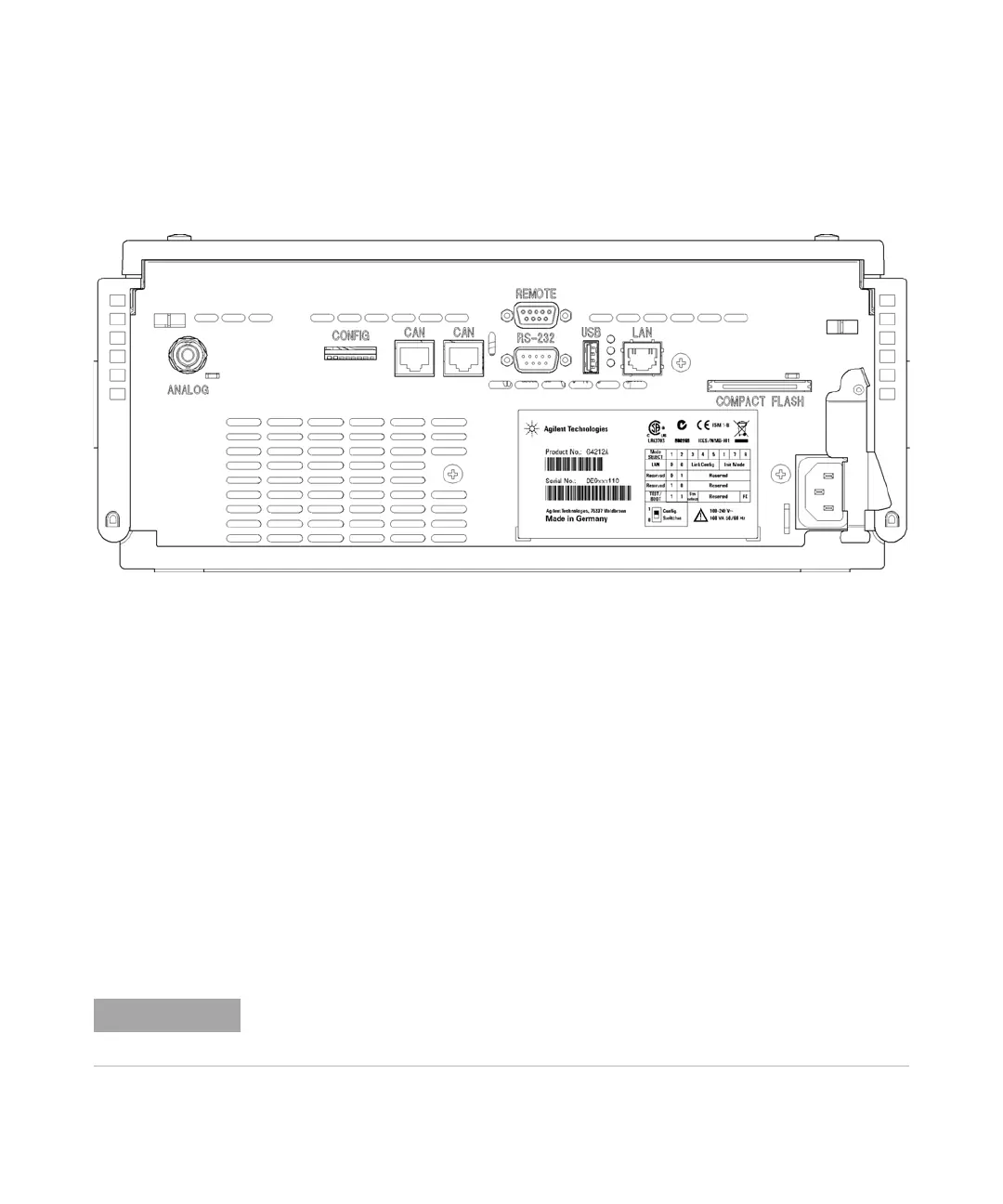

Figure 15 Rear View of Detector – Electrical Connections and Label
2 Set the Configuration Switch according the required initialization mode
(default, fixed IP or Bootp), see Chapter "LAN Configuration".
3 Place the module in the stack, see “Optimizing the Stack Configuration” on
page 32.
4 Ensure the line power switch at the front of the module is OFF.
5 Connect the power cable to the power connector at the rear of the module.
6 Connect the CAN cable to other Agilent modules.
7 Connect the LAN cable (e.g. from an Agilent ChemStation as controller) to
the detector's LAN connector.
8 Connect the analog cable (optional).
9 Connect the APG remote cable (optional) for non-Agilent instruments.
10 Turn on power by pushing the button at the lower left hand side of the
module. The status LED should be green.
The module is turned on when the line power switch is pressed and the green indicator
lamp is illuminated. The module is turned off when the line power switch is protruding and
the green light is off.
