Agilent 1200 Infinity Series DAD User Manual 45
Installing the Module
3
Flow Connections to the Detector
3

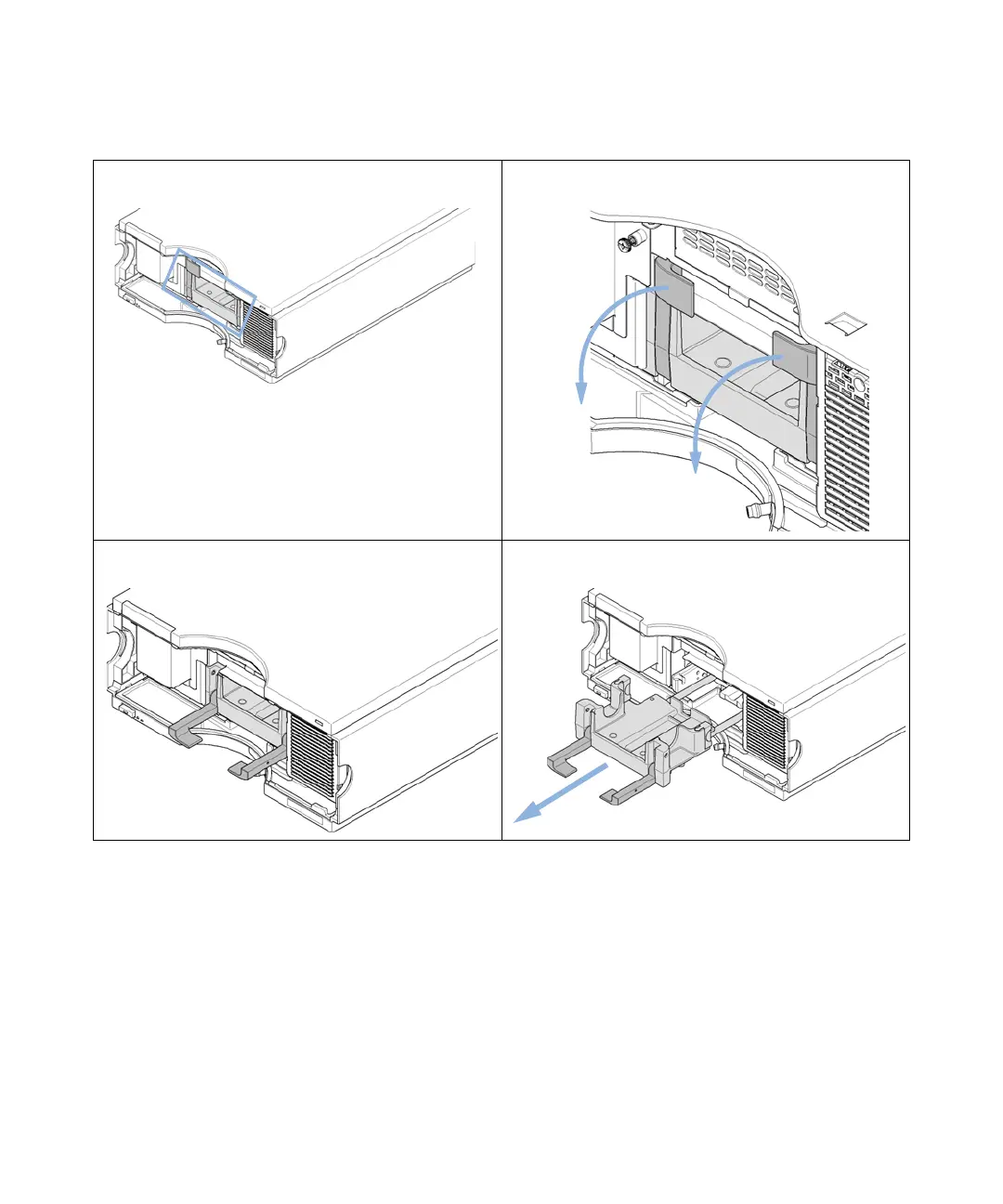

Locate the flow cell cartridge. 4 Unlock the flow cell cartridge by pulling the lever to the
front.
5 The lever should be in the final down position. 6 Pull the flow cell cartridge completely out towards the
front.
