46 Agilent 1200 Infinity Series DAD User Manual
3 Installing the Module
Flow Connections to the Detector
7

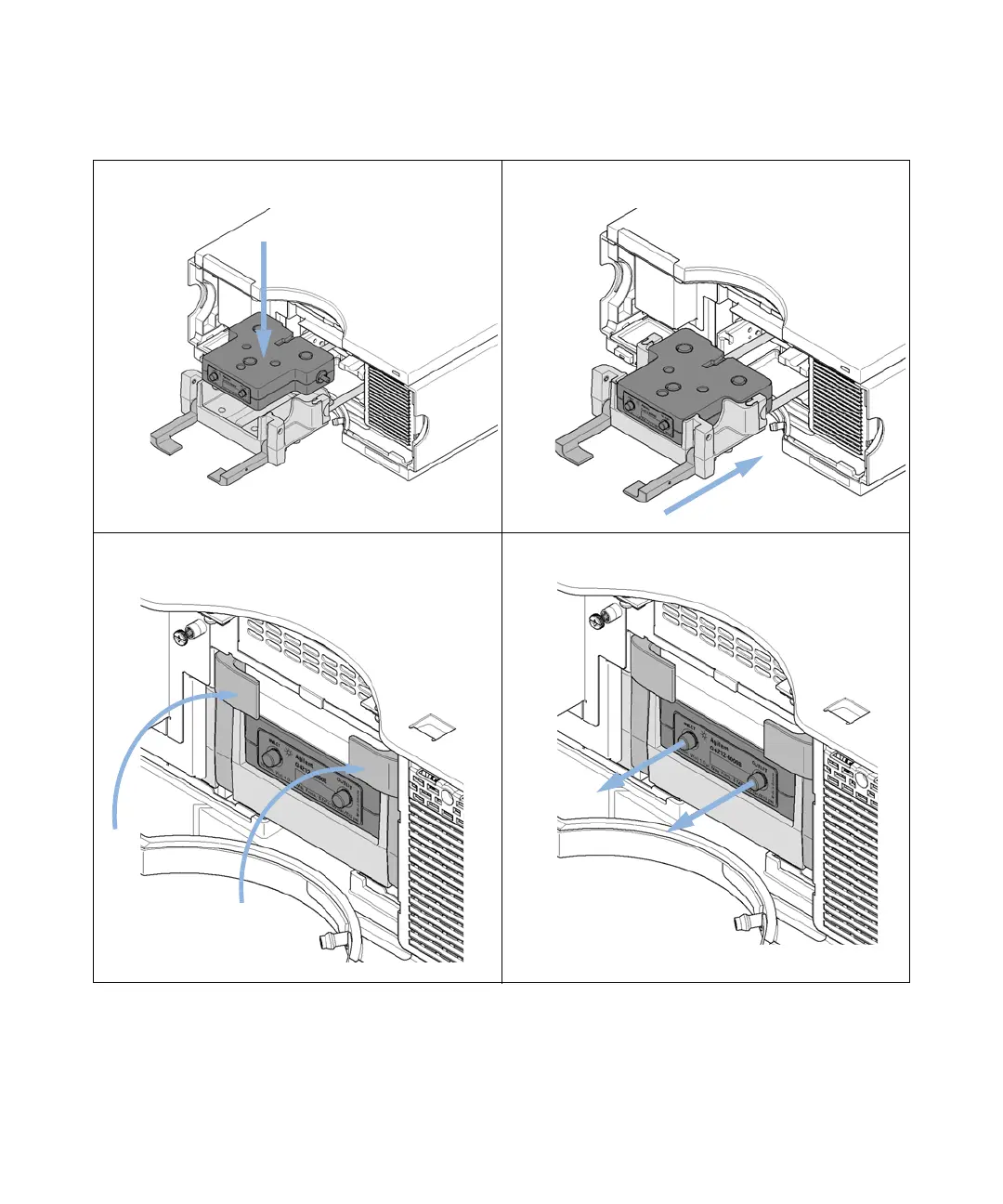

Remove the black hoods from the cell interfaces (in/out)
and insert the cell into the cell cartridge holder.
8 Slide the cell cartridge holder completely into the
module.
9 Lift the two levers into the upper final position to fix the
cell.
10 Remove the plugs from the CELL-IN and CELL-OUT (keep
them safe).
