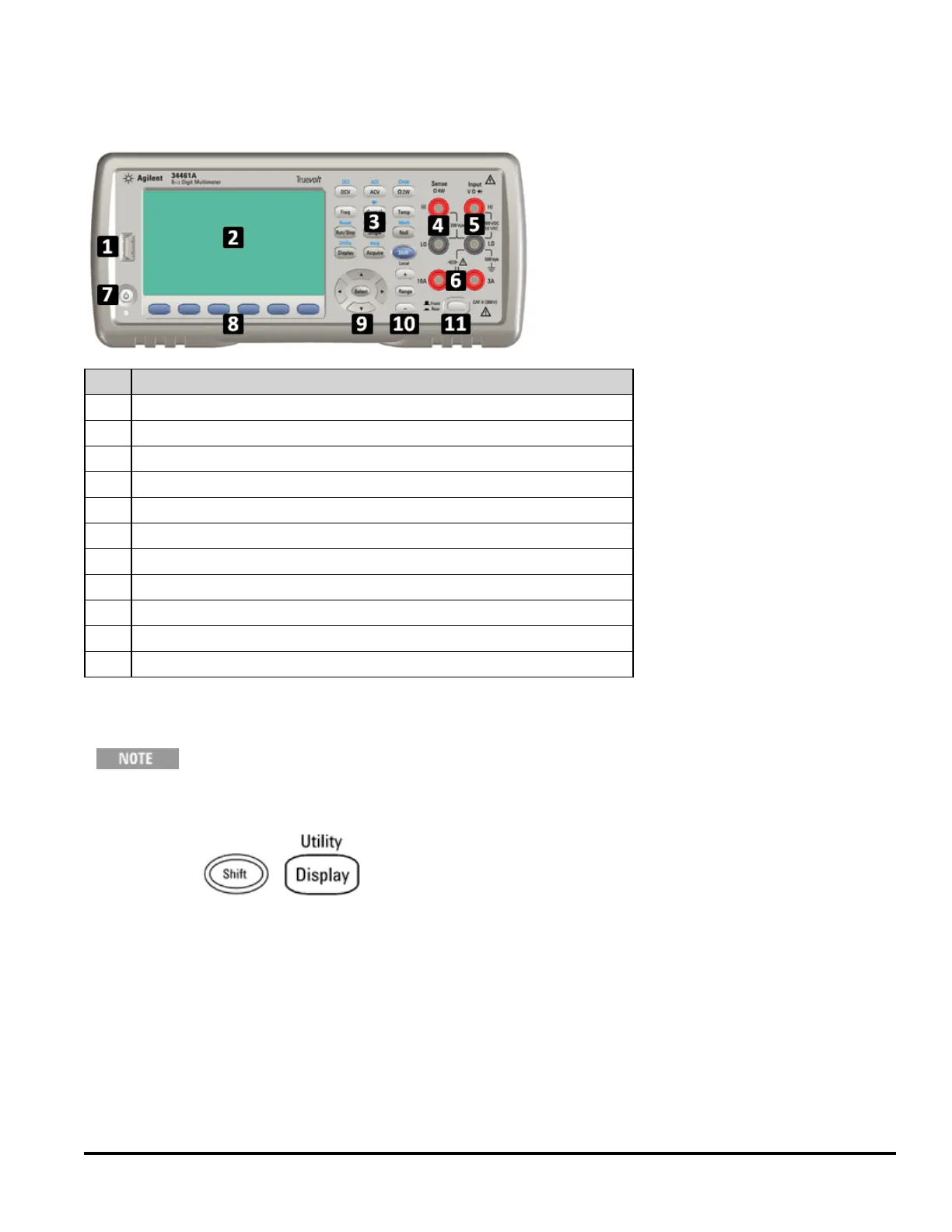

Front Panel at a GlanceHI and LO Sense Terminals
Item Description
1 USB Port
2 Display
3 Measurement Configuration and Instrument Operation Keys
4 HI and LO Sense Terminals
5 HI and LO Input Terminals
6 AC/DC Current Input Terminals (10 A terminal not available on 34460A)
7 On/Standby Switch
8 Softkeys
9 Cursor Navigation Keypad
10 Range Selection Keys
11 Front/Rear Switch (34461A only)
Front-Panel Keys
Note that some of the front-panel keys have text above them. This indicates that the key has a
function that you can access by pressing and releasing [Shift] before pressing the key. For
example, if you press and release [Shift] before pressing [Display], you will access the [Utility]
function:
Agilent Truevolt Series DMM Operating and Service Guide 21
